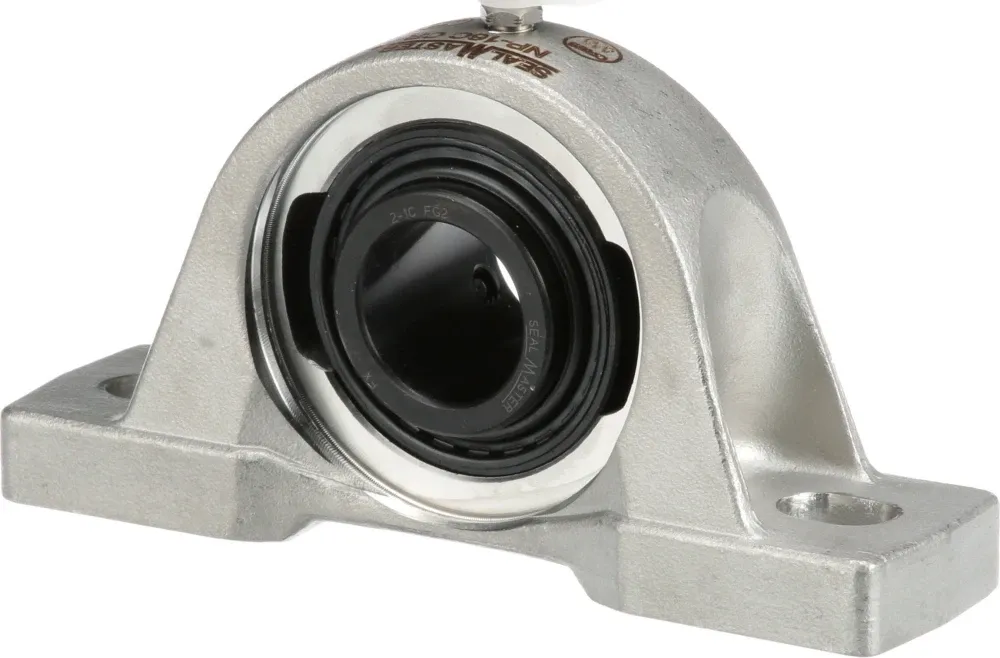

SEALMASTER NP-210C Pillow Block Ball Bearing Unit, 2-Bolt Base, 50 Mm Bore
Get it by Tuesday, Jul 14
€394.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Angle Of Misalignment | -2° to +2° |
| Base Width | 2 3/8" |
| Bearing Insert Coating | Black Oxide |
| Bearing Type | Ball Bearing |
| Bolt Size | 5/8" |
| Bore Shape | Straight |
| Bore Type | Round, Straight |
| Centerline To Front Face | 1.281" |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 7889 lbs. |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Sealmaster Bearings, NP Series |
| Foot Height | 3/4" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 2 1/32" , 2.031" |
| Insert Material | Bearing Steel, Black Oxided |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Locking Device | Set Screw |
| Locking Type | Set Screws |
| Max. Bolt | 6 1/2" |
| Max. Bolt Center | 6 1/2" |
| Min. Bolt Center | 6" |
| Misalignment Angle | -2° to +2° |
| Misalignment Type | Static Only |
| Mounting Type | 2 Bolt Base |
| Overall Height | 4.563" |
| Overall Length | 8 1/8" |
| Overall Width | 2.0313" |
| Pillow Block Type | 2 Bolt |
| Retainer Type | Land Riding |
| Seal Type | Single Lip Contact |
| Series | NP Series |
| Shaft Dia. | 0.05 mm |
| Static Radial Load Capacity | 5216 lbs. |
Shipping Info:
| Ship weight (kg) | 3.56 |
| Ship height (cm) | 11.59 |
| Ship length (cm) | 20.64 |
| Ship width (cm) | 5.16 |
Product Variants
| Product | Model | Overall Height | Bearing Insert Material | Bore Dia. | Overall Length | Overall Width | Bearing Insert Type | Shaft Locking Type | Housing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NP-46 | 7" | Alloy, Steel | 2 7/8" | 13" | 3 1/2" | Radial Ball | Set Screw | Pillow Block, Two Bolt | €1,785.96 | |
 |
NP-20 | 3 3/4" | Steel | 1 1/4" | 6 14/25" | 1 22/25" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €451.83 | |
 |
NP-31 CXU | 4 14/25" | Steel | 1 15/16" | 8.13" | 2.38" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €245.70 | |
 |
NP-23 CXU | 3 3/4" | Steel | 1 7/16" | 6 14/25" | 1 22/25" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €176.72 | |
 |
NP-32RC | 5" | Steel | 2" | 8.13" | 2.38" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €394.97 | |
|
NP-32 CXU | - | - | - | - | - | - | - | - | €1,191.58 | |
 |
NP-35 CXU | 5" | Steel | 2 3/16" | 8.63" | 2.38" | Standard Duty | Set Screw | Pillow Block, Two Bolt | €289.44 |
