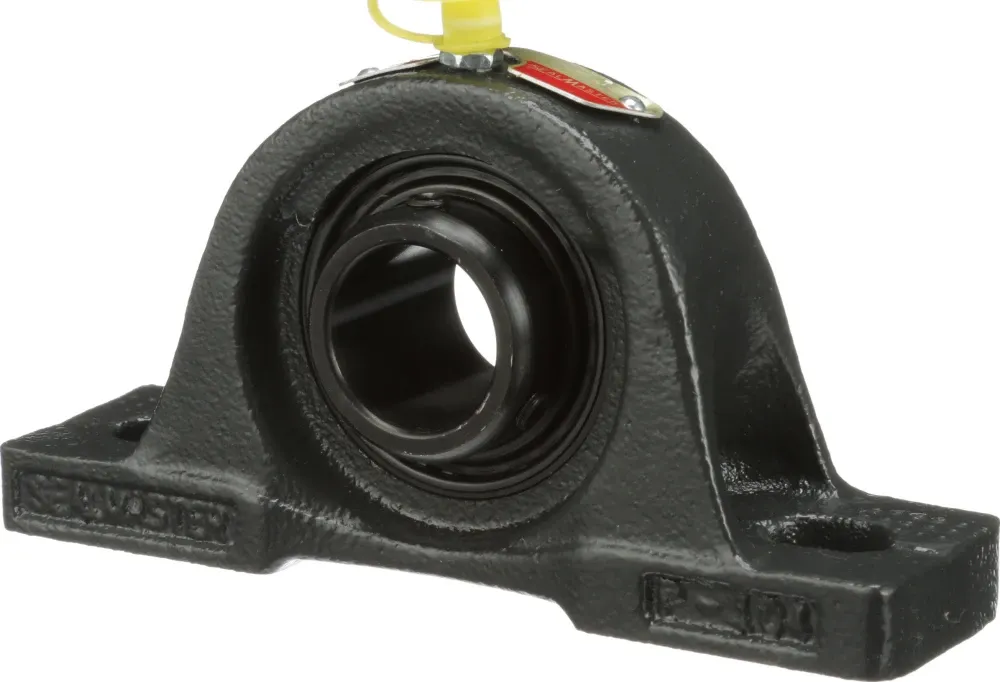

SEALMASTER NP-206C Pillow Block Ball Bearing Unit, 2-Bolt Base, 30 Mm Bore
Get it by Tuesday, Sep 1
€231.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Angle Of Misalignment | -2° to +2° |
| Base To Bore Centerline | 1 11/16" |
| Base To Center Height | 1.688" |
| Base Width | 1 7/8" |
| Bearing Insert Coating | Black Oxide |
| Bearing Type | Ball Bearing |
| Bore Shape | Straight |
| Bore Type | Round |
| Centerline To Front Face | 7/8" |
| Duty Type | Standard Duty |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Sealmaster Bearings, NP Series |
| Finish, Coating | Uncoated |
| Foot Height | 9/16" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1 1/2" |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Locking Device | Set Screw |
| Locking Type | Set Screws |
| Max. Bolt | 5.063" |
| Max. Bolt Center | 5 1/16" |
| Max. Operating Temp. | 220°F |
| Max. Speed | 5450 RPM |
| Min. Bolt Center | 4 7/16" |
| Misalignment Type | Static Only |
| Mounting Type | 2 Bolt Base |
| Overall Length | 6 1/2" |
| Overall Width | 1 1/2" |
| Pillow Block Type | 2 Bolt |
| Retainer Type | Land Riding |
| Seal Type | Single Lip Contact |
| Series | NP Series |
| Shaft Dia. | 0.03 mm |
Shipping Info:
| Ship weight (kg) | 1.62 |
| Ship height (cm) | 8.57 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 3.81 |
Product Variants
| Product | Model | Seal Type | Housing Material | Overall Width | Base Width | Bore Dia. | Overall Height | Bolt Size | Bearing Insert Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NP-46 | Contact | Cast Iron | 3 1/2" | 3.5" | 2 7/8" | 7" | 7/8" | Alloy, Steel | €1,785.96 | |
 |
NP-20 | Felt Labyrinth Seal | Cast Iron | 1 22/25" | 1 22/25" | 1 1/4" | 3 3/4" | 1/2" | Steel | €451.83 | |
 |
NP-31 CXU | Felt Labyrinth Seal | Cast Iron | 2.38" | 2.38" | 1 15/16" | 4 14/25" | 5/8" | Steel | €245.70 | |
 |
NP-23 CXU | Felt Labyrinth Seal | Cast Iron | 1 22/25" | 1 22/25" | 1 7/16" | 3 3/4" | 1/2" | Steel | €176.72 | |
 |
NP-32RC | Single Lip Contact Seal | Cast Iron | 2.38" | 2.38" | 2" | 5" | 5/8" | Steel | €394.97 | |
|
NP-32 CXU | Standard Felt Seal | - | - | - | - | - | - | - | €1,191.58 | |
 |
NP-35 CXU | Felt Labyrinth Seal | Cast Iron | 2.38" | 2.38" | 2 3/16" | 5" | 5/8" | Steel | €289.44 |
