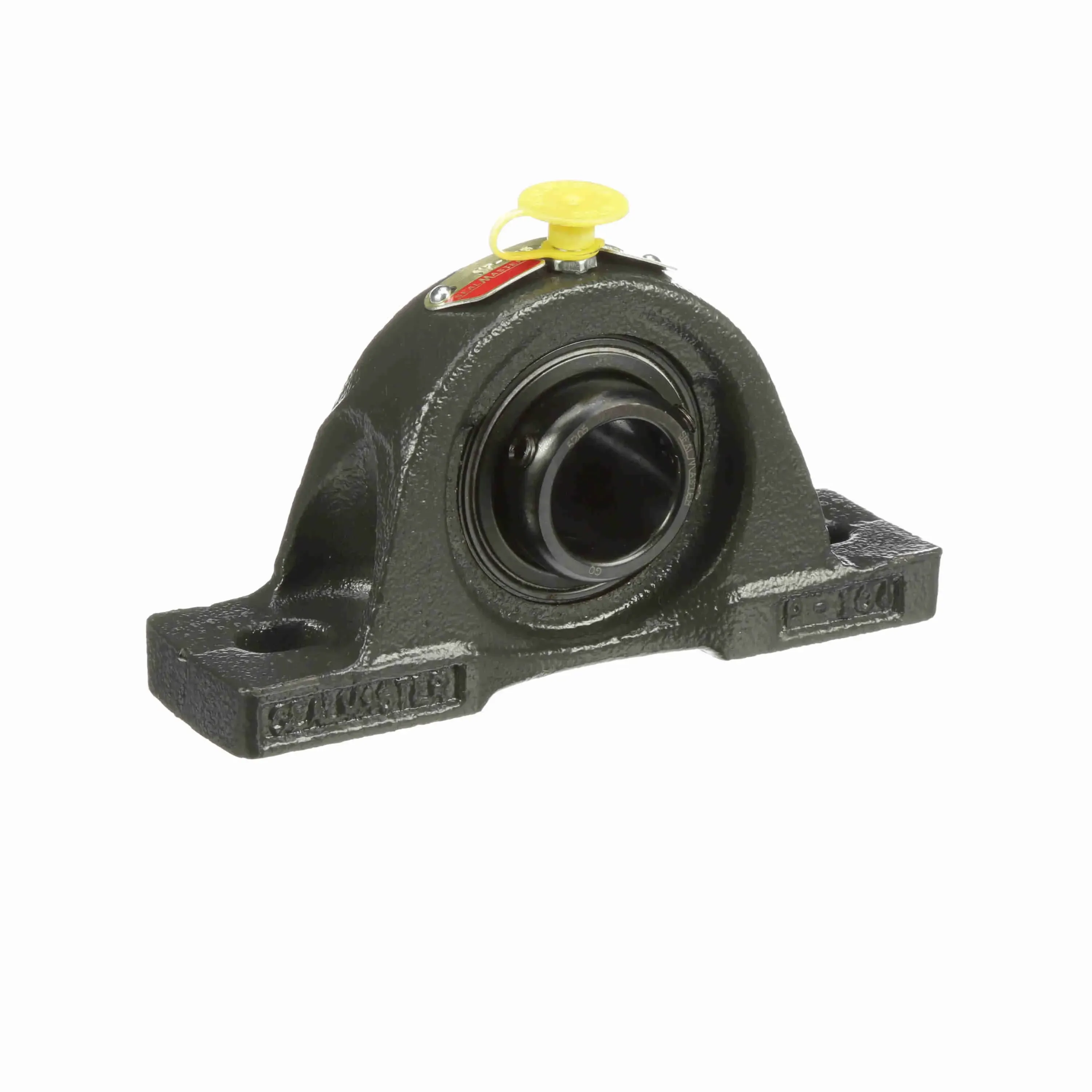

SEALMASTER NP-205 709918 Gold Soft Metric Unit
Item: BD9PCHModel: NP-205Cross Ref: 709918
7 In Stock
Ships within 2 days via
€270.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 5 1/2" |
| Base Width | 1 1/2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Type | Standard Duty |
| Bolt Size | 3/8" |
| Bolt Spacing Max | 4.38" |
| Bolt Spacing Min | 3 22/25" |
| Bore Dia. | 25 mm |
| Bore Shape | Straight |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 0.813" |
| Duty Series | Standard |
| Dynamic Load Capacity | 2801 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1/2" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4"-28 |
| Grease Type | Goldplex-HP |
| Height | 5 3/4" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 1 3/8" |
| Inner Ring Outside Diameter | 1 3/8" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 5205 |
| Length | 1.69" |
| Length Through Bore | 1 3/8" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 6350 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.81" |
| Overall Length | 5 1/2" |
| Overall Width | 1 1/2" |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Shaft Locking Type | Set Screw |
| Shaft Size | 25 mm |
| Size Code | 2-015 |
| Static Load Rating | 1651 lbs. |
| Width | 3 1/2" |
Shipping Info:
| Ship weight (kg) | 0.96 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 4.29 |
| Ship width (cm) | 14.61 |
| Country of Origin | MX |
