SEALMASTER MST-63C SEALMASTER MST-63C | BD9YHZ

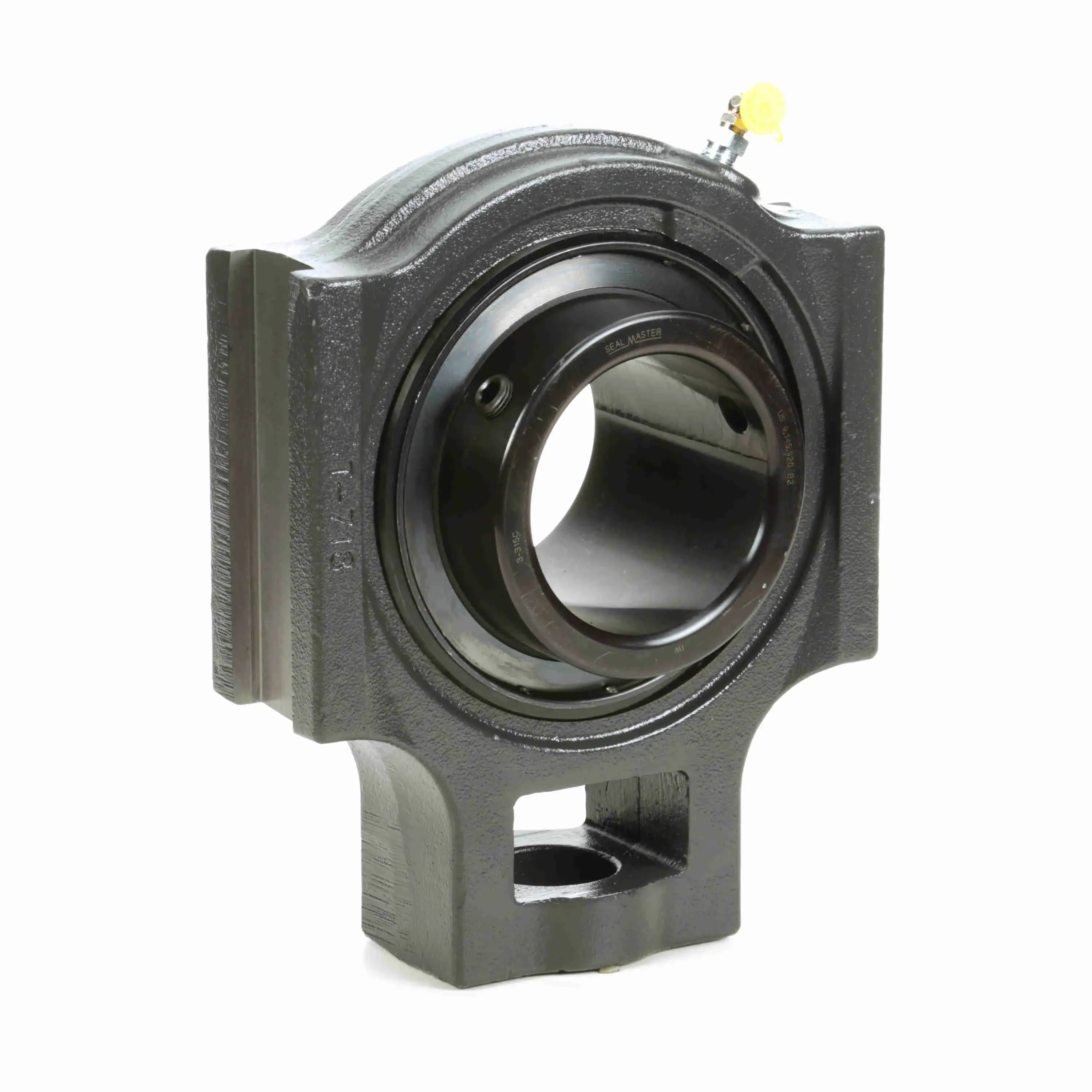

SEALMASTER MST-63C 703237 Take-Up Ball Bearing Unit, Side Mount, 3.9375 Inch Bore

Item: BD9YHZModel: MST-63CCross Ref: 703237
Check Availability
In Stock

Get it by Tuesday, Feb 24

€3,838.73 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Ability To Relubricate Yes
Adjusting Screw Clearance Hole Diameter 1 22/25"
Adjusting Screw Square Nut Seat Height 2 22/25"
Base To Center Height 7.13"
Bearing Insert Finish Black Oxide
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Medium Duty
Bearing Type Medium Duty
Bore Dia. 3 15/16"
Bore Shape Straight
Cage Material Brass
Cage Type Land Riding Retainer
Carriage Bolt Size 1 1/2"
Centerline To Outermost Bearing Face 2.683"
Duty Series Medium
Dynamic Load Capacity 29905 lbs.
End Cap No
Fixed Vs. Expansion Fixed
Grade Grade 52100
Grease Fitting Thread Size 1/8"
Grease Fitting Thread Type NPT
Grease Type Goldplex-HP
Height 4.88"
Housing Base Solid
Housing Coating Powder Coated
Housing Color Black
Housing Construction One Piece
Housing Material Cast Iron
Housing Style Take Up Block
Htc 8483.20.4040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Dia. 5.17"
Inner Ring Outside Diameter 5.17"
Inner-race Heat-treat Method Zone Hardened
Insert 3-315C
Length 17 1/4"
Length Through Bore 4.623"
Locking Device Setscrew
Lubricant Lithium Complex NLGI 2 Grease
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Speed 1450 RPM
Misalignment Type Static Only
Outer Ring Land Profile Standard
Overall Height 9.38"
Overall Width 4.63"
Product Type Sealmaster Gold-Standard
Radial Clearance Standard
Retainer Type Metal Land Riding
Seal Flinger No
Series Mst Series
Shaft Locking Type Set Screw
Shaft Size 3 15/16"
Size Code 2-43
Slot Length 6 1/2"
Slot Spacing 8 3/8"
Slot Width 1.813"
Static Load Rating 23553 lbs.
Width 9.88"

Shipping Info:

Ship weight (kg) 22.5
Ship height (cm)25.1
Ship length (cm)43.82
Ship width (cm)12.4
Country of OriginUS

Product Variants

ProductModelBearing Insert TypeOverall WidthOverall LengthBore Dia.Overall HeightCompatible FrameSeal TypeShaft Locking TypePrice
SEALMASTER MST-23 Take-Up Bearing, Radial Ball, Ss Insert, 1 7/16 Inch Size Bore | CU2KXR 44D180 MST-23Medium Duty2 1/8"5.687"1.438"-STH 24 THRU 28-12 DZUFelt Labyrinth SealSet Screws€683.39
SEALMASTER MST-64 Take-Up Bearing, Radial Ball, Steel Insert, 4 Inch Size Bore, Cast Iron Housing | CU2KXT 44D196 MST-64Medium Duty4.63"11.88"4"9.38"STH 52 THRU 55-12 DZU-Set Screws€6,483.37
SEALMASTER MST-15 SEALMASTER MST-15 | BD7NRG MST-15Radial Ball1 3/4"8.437"-4"Sth 17 Thru 19-6 DzuStandard Felt SealSet Screws€476.03
SEALMASTER MST-16 SEALMASTER MST-16 | BD9FVJ MST-16Medium Duty1 3/4"4 11/25"1"4"Sth 17 Thru 19-6 DzuFelt Labyrinth SealSet Screw€458.54
SEALMASTER MST-16C SEALMASTER MST-16C | BF8QRU MST-16C--------€236.77
SEALMASTER MST-19 SEALMASTER MST-19 | BD9VXK MST-19Medium Duty1 3/4"5.06"1 3/16"4"Sth 20 Thru 23-12 DzuFelt Labyrinth SealSet Screw€600.40
SEALMASTER MST-19C SEALMASTER MST-19C | BE9RDA MST-19CMedium Duty1 3/4"5.06"1 3/16"4"-Single Lip Contact SealSet Screw€279.16
