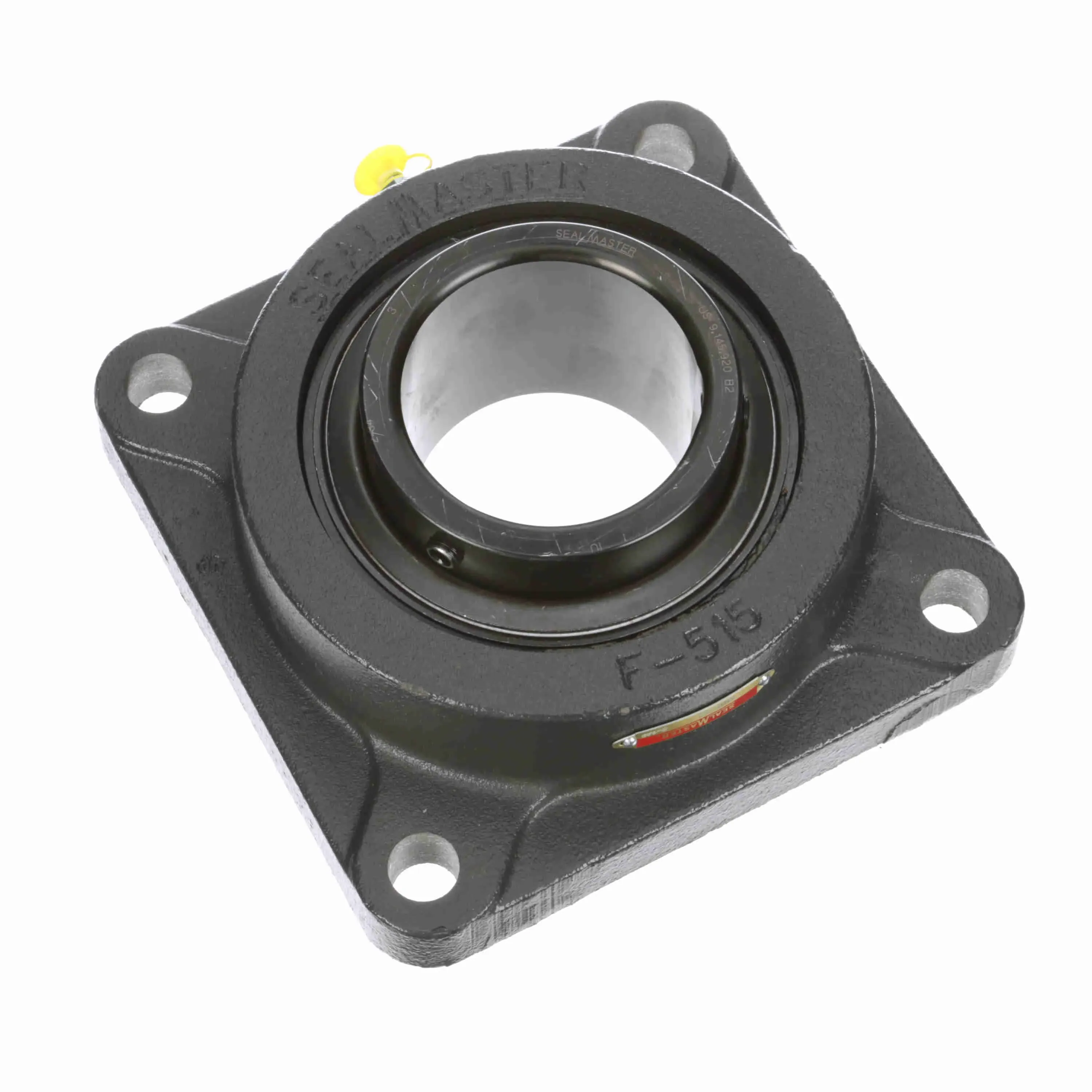

SEALMASTER MSF-52 701965 Flange Bearing, 4 Bolt, 3 1/4 Inch Bore, Cast Iron, Set Screws, 8 7/16 Inch Length
Get it by Thursday, Dec 25
10.00% off
€2,870.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bearing Type | Medium Duty |
| Bolt Size | 3/4" |
| Bolt Spacing | 6 3/4" |
| Bore Dia. | 3 1/4" |
| Bore Diameter | 3 1/4" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| Duty Series | Medium |
| Dynamic Load Capacity | 18681 lbf. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | Lock Pin And Dimple For Direct Lubrication And Anti Rotation |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 1" |
| Foot Height | 1" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 4" |
| Housing Backside Inner Diameter | 6" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
| Includes | Set Screw |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 4.156" |
| Inner Ring Outside Diameter | 4.156" |
| Inner Ring Width | 4.156" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 2-34 |
| Insert Material | Steel |
| Length | 8 3/4" |
| Length Through Bore | 3 3/8" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 2125 RPM |
| Maximum Misalignment Angle | 2° |
| Maximum Speed | 2125 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Height | 6 3/4" |
| Mount Hole Center-to-center Length | 6 3/4" |
| Mounting Bolt Size | 3/4" |
| Number Of Mount Holes | 4 |
| Outer Ring Land Profile | Standard |
| Overall Height | 8 27/64" |
| Pilot Configuration | No Pilot |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Set Screws |
| Shaft Size | 3 1/4" |
| Size Code | 2-37 |
| Static Load Rating | 14496 lbs. |
| Static Radial Load Capacity | 14496 lbf. |
| Width | 8.56" |
Shipping Info:
| Ship weight (kg) | 11.72 |
| Ship height (cm) | 21.74 |
| Ship length (cm) | 22.23 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price | |
|---|---|---|---|---|---|---|
 |
MSF-38 | 2 3/8" | Cast Iron | - | €1,270.35 | |
 |
MSF-24 | 1 1/2" | Cast Iron | - | €638.96 | |
 |
MSF-31T | 1 15/16" | Cast Iron | - | €367.98 | |
 |
MSF-39 CPJ | - | Cast Iron | - | €673.19 | |
 |
MSF-47 CXU | 2 15/16" | Cast Iron | - | €912.29 | |
 |
MSF-48 W | - | - | - | €1,837.00 | |
 |
MSF-39C | 2 7/16" | Cast Iron | - | €687.81 |
