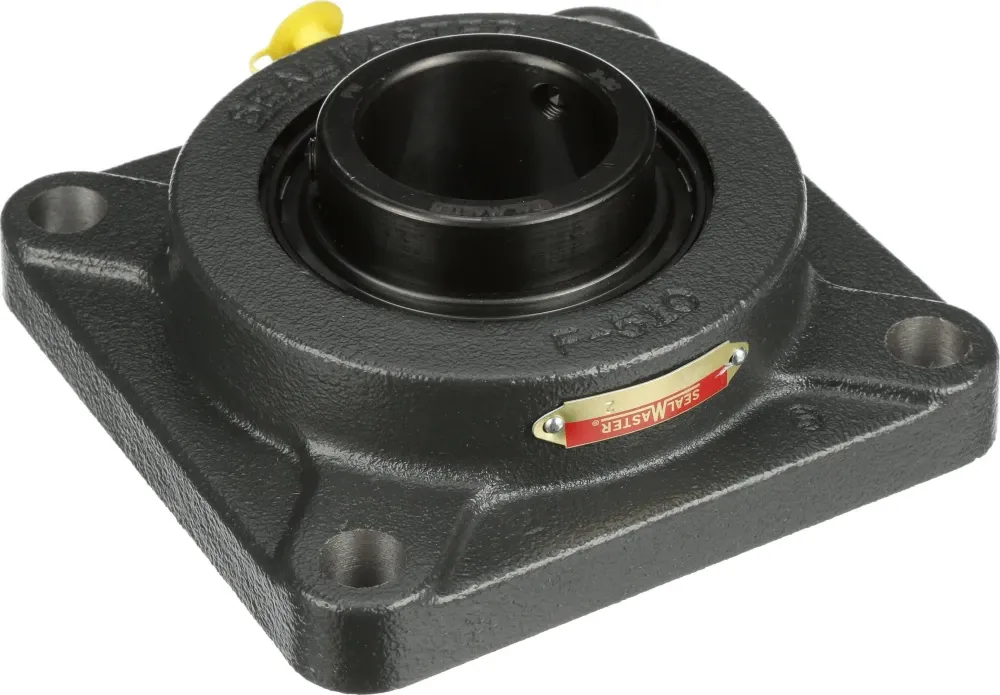

SEALMASTER MSF-43 CXU Flange Bearing, 4 Bolt, 2.6875 Inch Dia, Setscrew Locking, Standard Felt Seal
Get it by Friday, Dec 26
€856.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Type | Medium Duty |
| Bolt Size | 3/4" |
| Bolt Spacing | 6" |
| Bore Dia. | 2 11/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Duty Series | Medium |
| Dynamic Load Capacity | 14839 lbs. |
| End Cap | No |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 3 1/2" |
| Housing Backside Inner Dia. | 5.88" |
| Housing Base | Solid |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated |
| Housing Type | Flange, Four Bolt |
| Inner Ring Outside Dia. | 3.644" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 3-211 CXU |
| Insert Material | Steel |
| Length | 8.13" |
| Length Through Bore | 3.06" |
| Locking Device | Setscrew |
| Locking Type | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 250°F |
| Max. Speed | 2450 RPM |
| Misalignment Capability | ±2° Misalignment Static Only |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 3.188" |
| Overall Length | 7 3/4" |
| Overall Width | 7 3/4" |
| Pilot Configuration | No Pilot |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Rolling Element | Ball |
| Seal Type | Standard Felt Seal |
| Setscrew Torque | 350 lbs.-in. to 450 lbs.-in. |
| Shaft Size | 2 11/16" |
| Size Code | 2-215 |
| Static Radial Load Capacity | 11224 lbs. |
| Width | 7.94" |
Shipping Info:
| Ship weight (kg) | 9.27 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 20.65 |
| Ship width (cm) | 20.17 |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price | |
|---|---|---|---|---|---|---|
 |
MSF-38 | 2 3/8" | Cast Iron | - | €1,270.35 | |
 |
MSF-24 | 1 1/2" | Cast Iron | - | €638.96 | |
 |
MSF-31T | 1 15/16" | Cast Iron | - | €367.98 | |
 |
MSF-39 CPJ | - | Cast Iron | - | €673.19 | |
 |
MSF-47 CXU | 2 15/16" | Cast Iron | - | €912.29 | |
 |
MSF-48 W | - | - | - | €1,837.00 | |
 |
MSF-39C | 2 7/16" | Cast Iron | - | €687.81 |
