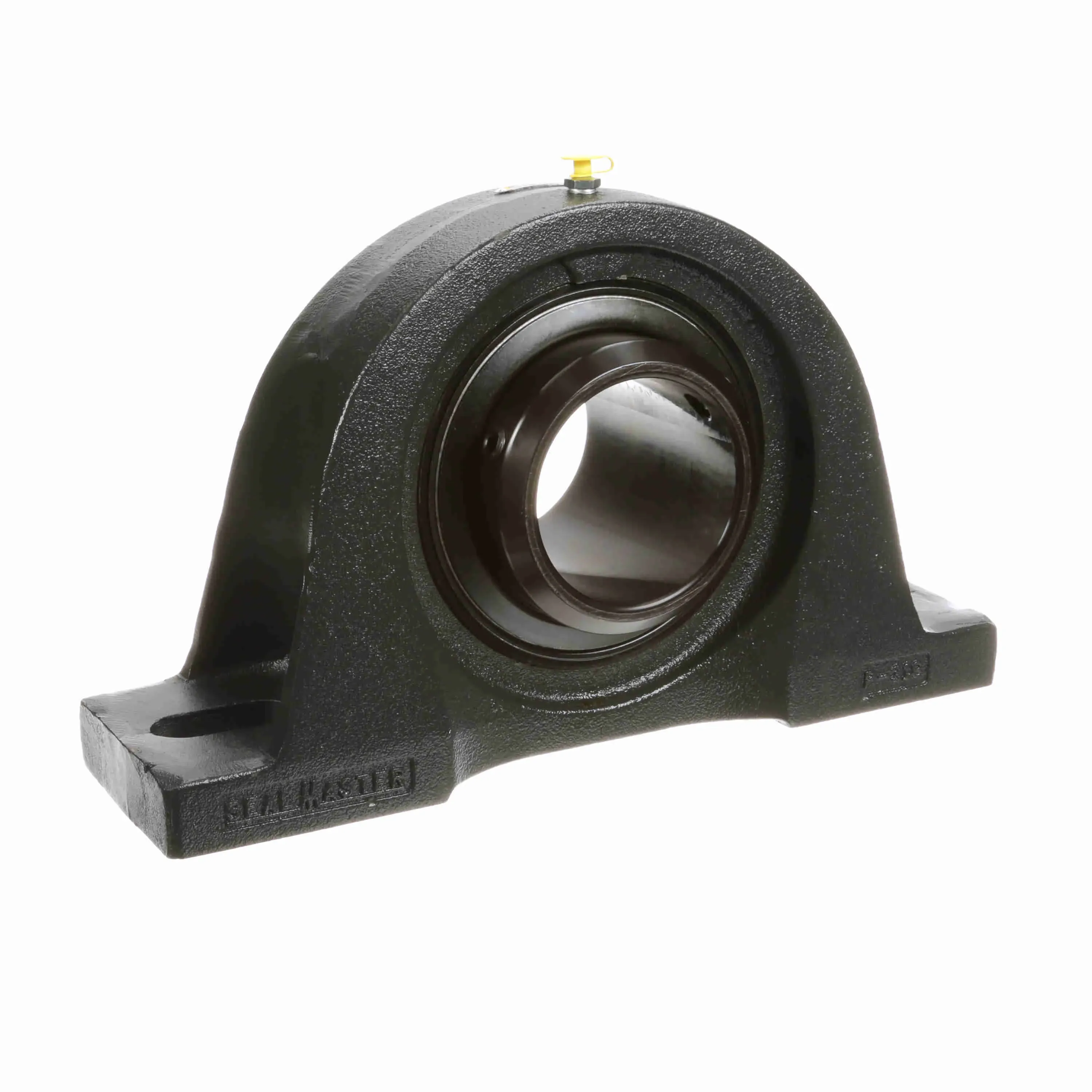

SEALMASTER MPD-63 CXU 712541 Pillow Block Bearing, 2 Bolt, 3.9375 Inch Dia, Double Setscrew Locking, Standard Felt Seal
Get it by Friday, Dec 19
€3,943.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 17" |
| Base To Center Height | 5" |
| Base Width | 4 3/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Size | 1" |
| Bolt Spacing Max | 14 3/4" |
| Bolt Spacing Min | 11 3/4" |
| Bore Dia. | 3 15/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 2.688" |
| Duty Series | Medium |
| Dynamic Load Capacity | 29905 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1.31" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 5 3/4" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 5.172" |
| Inner Ring Outside Diameter | 5.172" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 3-315D |
| Length | 17.88" |
| Length Through Bore | 5 3/8" |
| Locking Device | Double Set Screw |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 2400 RPM |
| Misalignment Type | Static Only |
| Options | Air Handling Housing Fit, Noise Tested |
| Outer Ring Land Profile | Standard |
| Overall Height | 10" |
| Overall Length | 17" |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Setscrew Torque | 1100 lbs.-in. to 1440 lbs.-in. |
| Shaft Locking Type | Double Set Screw |
| Shaft Size | 3 15/16" |
| Size Code | 2-43 |
| Static Load Rating | 23553 lbs. |
| Width | 11.63" |
Shipping Info:
| Ship weight (kg) | 34.74 |
| Ship height (cm) | 29.54 |
| Ship length (cm) | 45.42 |
| Ship width (cm) | 14.61 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Overall Width | Shaft Size | Insert | Max. Speed | Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MPD-35 CXU | 2 3/16" | 10 1/4" | 5.63" | 3.13" | - | 3-23D | 4100 RPM | 3/4" | €642.29 | |
 |
MPD-39 CXU | 2 7/16" | 11 1/4" | 6 1/4" | 3 1/2" | 2 7/16" | 3-27D | 3600 RPM | 3/4" | €902.33 | |
 |
MPD-55 | 3 7/16" | 15" | 8 1/4" | - | 3 7/16" | 3-37D | 2800 RPM | 7/8" | €2,364.12 | |
 |
MPD-35 | 2 3/16" | 10 1/4" | 5.63" | 3.13" | - | 3-23D | 4100 RPM | 3/4" | €642.29 | |
 |
MPD-23 | 1 7/16" | 8" | 4.19" | 2.31" | - | 3-17D | 5850 RPM | 1/2" | €380.62 | |
 |
MPD-32 | 2" | 9 1/2" | 5.09" | 2 22/25" | - | 2-2D | 4500 RPM | 5/8" | €610.30 | |
|
MPD-40 | 2 1/2" | 11 1/4" | 6 1/4" | 3 1/2" | 2 1/2" | 3-28D | 3600 RPM | 3/4" | €1,029.47 |
