SEALMASTER MPD-40 702309 Pillow Block Ball Bearing Unit, 2-Bolt Base, 2-1/2 Inch Bore
Get it by Monday, Dec 22
€1,029.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 11 1/4" |
| Base To Center Height | 3" |
| Base Width | 3 1/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Size | 3/4" |
| Bolt Spacing Min | 7.13" |
| Bore Dia. | 2 1/2" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 3/4" |
| Duty Series | Medium |
| Dynamic Load Capacity | 13971 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1.06" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 3 14/25" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 3.438" |
| Inner Ring Outside Diameter | 3.438" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 3-28D |
| Length | 12.38" |
| Length Through Bore | 3.498" |
| Locking Device | Double Set Screw |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 3600 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 6 1/4" |
| Overall Length | 11 1/4" |
| Overall Width | 3 1/2" |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | Yes |
| Setscrew Torque | 350 lbs.-in. to 450 lbs.-in. |
| Shaft Locking Type | Double Set Screw |
| Shaft Size | 2 1/2" |
| Size Code | 2-211 |
| Static Load Rating | 10063 lbs. |
| Width | 7.13" |
Shipping Info:
| Ship weight (kg) | 9.95 |
| Ship height (cm) | 18.11 |
| Ship length (cm) | 31.45 |
| Ship width (cm) | 9.04 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Overall Width | Shaft Size | Insert | Max. Speed | Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MPD-35 CXU | 2 3/16" | 10 1/4" | 5.63" | 3.13" | - | 3-23D | 4100 RPM | 3/4" | €642.29 | |
 |
MPD-39 CXU | 2 7/16" | 11 1/4" | 6 1/4" | 3 1/2" | 2 7/16" | 3-27D | 3600 RPM | 3/4" | €902.33 | |
 |
MPD-55 | 3 7/16" | 15" | 8 1/4" | - | 3 7/16" | 3-37D | 2800 RPM | 7/8" | €2,364.12 | |
 |
MPD-35 | 2 3/16" | 10 1/4" | 5.63" | 3.13" | - | 3-23D | 4100 RPM | 3/4" | €642.29 | |
 |
MPD-23 | 1 7/16" | 8" | 4.19" | 2.31" | - | 3-17D | 5850 RPM | 1/2" | €380.62 | |
|
MPD-32 | 2" | 9 1/2" | 5.09" | 2 22/25" | - | 2-2D | 4500 RPM | 5/8" | €610.30 | |
 |

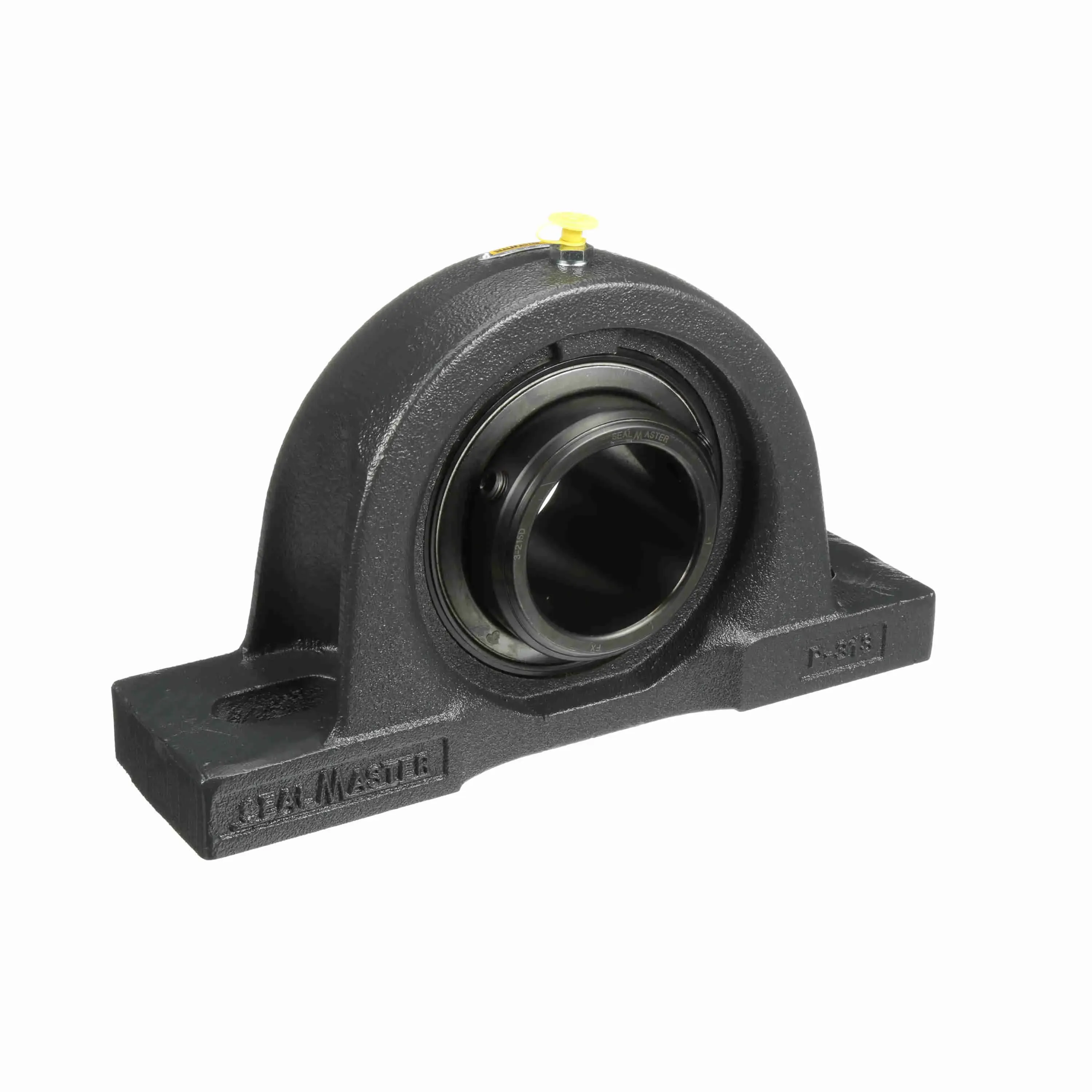

MPD-47 CXU | 2 15/16" | 13" | 7 1/4" | 3 22/25" | 2 15/16" | 3-215D | 3150 RPM | 7/8" | €1,291.82 |
