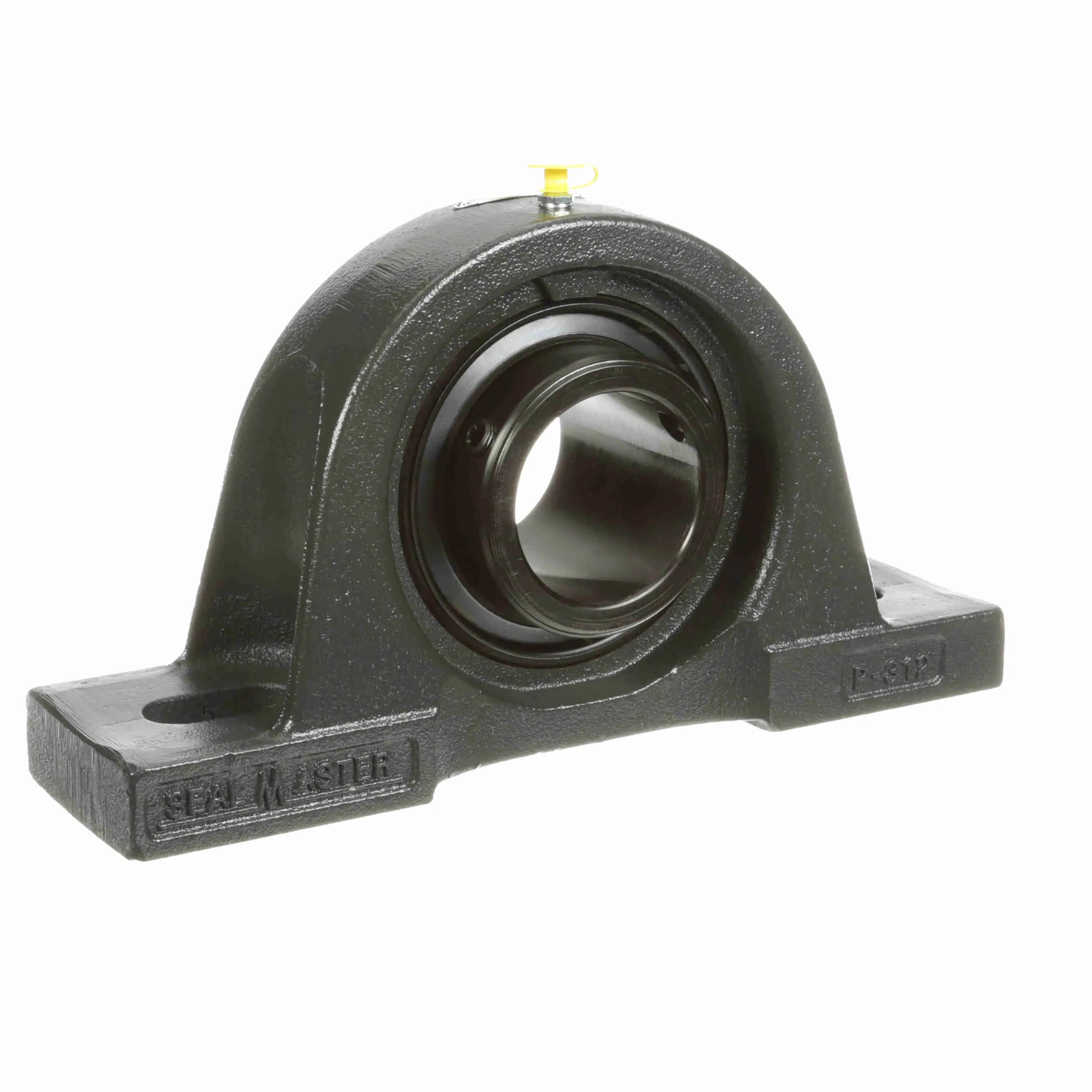

SEALMASTER MPD-43C 702696 Pillow Block Ball Bearing Unit, 2-Bolt Base, 2-11/16 Inch Bore
Get it by Tuesday, Aug 25
€1,465.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 13" |
| Base To Center Height | 3 1/2" |
| Base Width | 3 1/2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Size | 7/8" |
| Bore Dia. | 2 11/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 3/4" |
| Duty Series | Medium |
| Dynamic Load Capacity | 14839 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1.13" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Grease Type | Goldplex-HP |
| Height | 4" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 3-211D |
| Inside Ring Outside Dia. | 3.641" |
| Length | 14 1/4" |
| Length Through Bore | 3 1/2" |
| Locking Device | Double Set Screw |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 10.13" |
| Max. Speed | 2100 RPM |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Height | 7" |
| Overall Length | 13" |
| Overall Width | 3 1/2" |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Seal Flinger | No |
| Shaft Locking Type | Double Set Screw |
| Shaft Size | 2 11/16" |
| Size Code | 2-215 |
| Static Load Rating | 11224 lbs. |
| Width | 8.06" |
Shipping Info:
| Ship weight (kg) | 12.96 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 36.2 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Bolt Size | Base Width | Overall Width | Seal Type | Dynamic Load Capacity | Base To Center Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MPD-35 CXU | 2 3/16" | 5.63" | 3/4" | 3.13" | 3.13" | Felt Labyrinth Seal | 11789 lbs. | 2 3/4" | €642.29 | |
 |
MPD-39 CXU | 2 7/16" | 6 1/4" | 3/4" | 3 1/4" | 3 1/2" | - | 13971 lbs. | 3" | €902.33 | |
 |
MPD-55 | 3 7/16" | 8 1/4" | 7/8" | 4.38" | - | - | 21566 lbs. | 4" | €2,364.12 | |
 |
MPD-35 | 2 3/16" | 5.63" | 3/4" | 3.13" | 3.13" | Felt Labyrinth Seal | 11789 lbs. | 2 3/4" | €642.29 | |
 |
MPD-23 | 1 7/16" | 4.19" | 1/2" | 2 1/4" | 2.31" | Felt Labyrinth Seal | 7340 lbs. | 2 1/8" | €380.62 | |
 |
MPD-32 | 2" | 5.09" | 5/8" | 2 22/25" | 2 22/25" | Felt Labyrinth Seal | 9752 lbs. | 2 1/2" | €610.30 | |
|
MPD-40 | 2 1/2" | 6 1/4" | 3/4" | 3 1/4" | 3 1/2" | - | 13971 lbs. | 3" | €1,029.47 |
