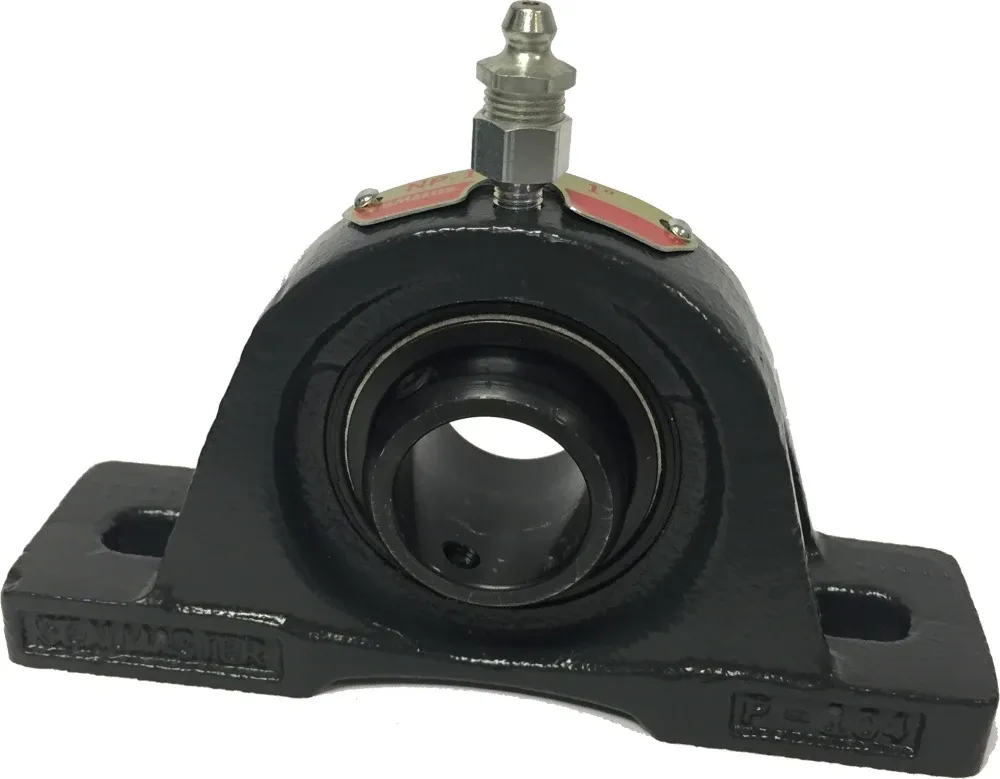

SEALMASTER MPD-35 CPJ Pillow Block Bearing, 2 Bolt, 2.1875 Inch Dia, Double Setscrew Locking, Standard Felt Seal
Get it by Friday, Aug 28
€642.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Base To Bore Centerline | 2 3/4" |
| Base Width | 3 1/8" |
| Bolt Size | 3/4" |
| Bore Dia. | 2 3/16" |
| Bore Type | Round |
| Duty Type | Medium Duty |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Finish, Coating | Uncoated |
| Housing Material | Cast Iron |
| Locking Device | Double Setscrew Collar |
| Mounting Type | 2 Bolt Base |
| Overall Height | 5 5/8" |
| Overall Length | 10 1/4" |
| Overall Width | 3 1/8" |
| Replacement Bearing | 3-23D |
| Seal Type | Felt Seal |
| Series | MPD Series |
Shipping Info:
| Ship weight (kg) | 7.47 |
| Ship height (cm) | 14.29 |
| Ship length (cm) | 26.04 |
| Ship width (cm) | 7.94 |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Bolt Size | Base Width | Overall Width | Seal Type | Dynamic Load Capacity | Base To Center Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MPD-35 CXU | 2 3/16" | 5.63" | 3/4" | 3.13" | 3.13" | Felt Labyrinth Seal | 11789 lbs. | 2 3/4" | €642.29 | |
 |
MPD-39 CXU | 2 7/16" | 6 1/4" | 3/4" | 3 1/4" | 3 1/2" | - | 13971 lbs. | 3" | €902.33 | |
 |
MPD-55 | 3 7/16" | 8 1/4" | 7/8" | 4.38" | - | - | 21566 lbs. | 4" | €2,364.12 | |
 |
MPD-35 | 2 3/16" | 5.63" | 3/4" | 3.13" | 3.13" | Felt Labyrinth Seal | 11789 lbs. | 2 3/4" | €642.29 | |
 |
MPD-23 | 1 7/16" | 4.19" | 1/2" | 2 1/4" | 2.31" | Felt Labyrinth Seal | 7340 lbs. | 2 1/8" | €380.62 | |
 |
MPD-32 | 2" | 5.09" | 5/8" | 2 22/25" | 2 22/25" | Felt Labyrinth Seal | 9752 lbs. | 2 1/2" | €610.30 | |
|
MPD-40 | 2 1/2" | 6 1/4" | 3/4" | 3 1/4" | 3 1/2" | - | 13971 lbs. | 3" | €1,029.47 |
