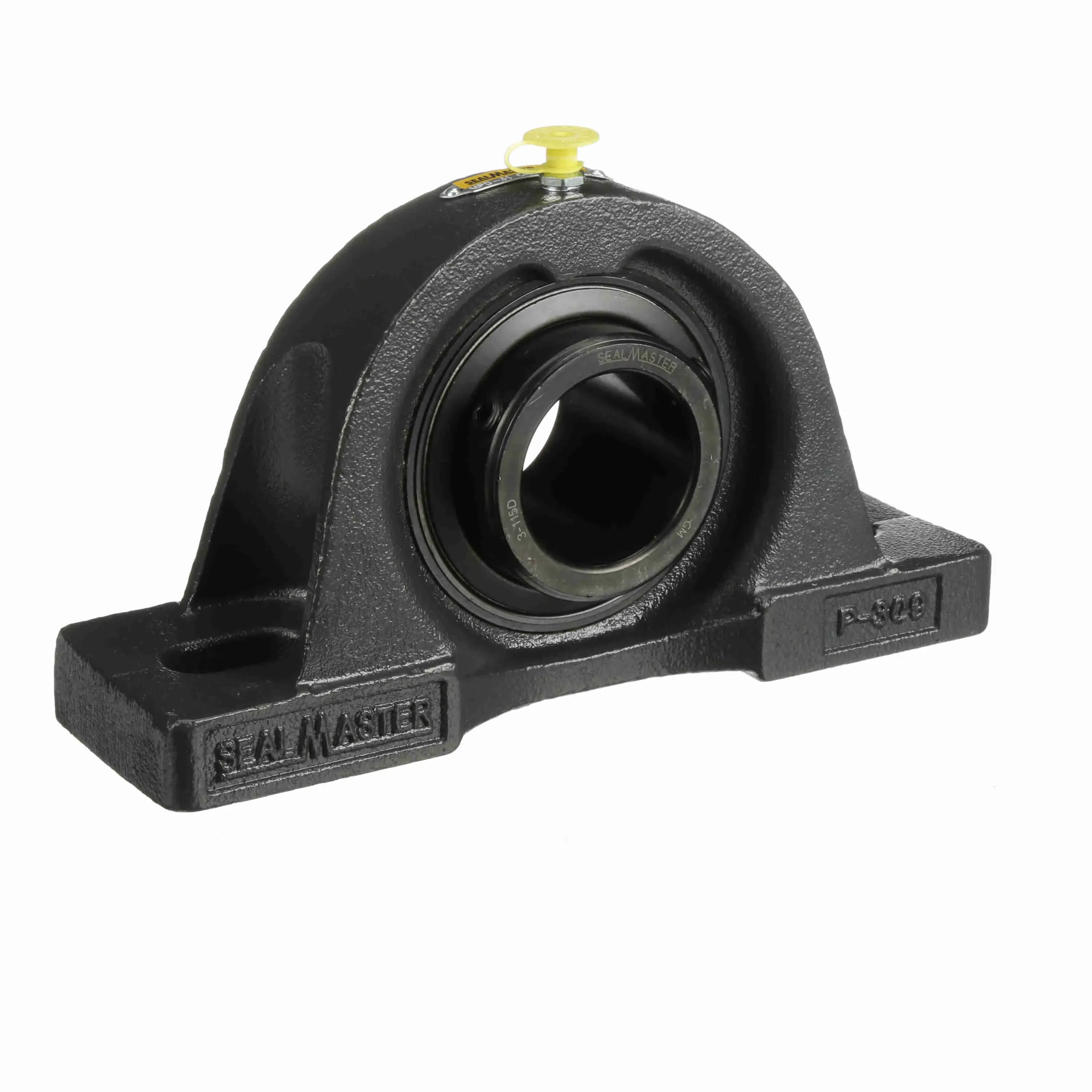

SEALMASTER MPD-31 CXU 709557 Pillow Block Bearing, 2 Bolt, 1.9375 Inch Dia, Double Setscrew Locking, Standard Felt Seal
Get it by Thursday, Dec 18
€527.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 9 1/2" |
| Base To Center Height | 2 1/2" |
| Base Width | 2 22/25" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 5/8" |
| Bolt Spacing Max | 7 14/25" |
| Bolt Spacing Min | 5.94" |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.313" |
| Dynamic Load Capacity | 9752 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 22/25" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.719" |
| Insert | 3-115D |
| Length Through Bore | 2 5/8" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 4500 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Air Handling Housing Fit, Noise Tested |
| Outer Ring Land Profile | Standard |
| Overall Height | 5.09" |
| Overall Length | 9 1/2" |
| Overall Width | 2 22/25" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Double Set Screw |
| Size Code | 2-23 |
| Static Load Rating | 6601 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0987 cPS |
| Vibration Frequency Outer Ring Defect | 0.068 cPS |
| Vibration Frequency Roller Spin | 0.0437 cPS |
Shipping Info:
| Ship weight (kg) | 5.35 |
| Ship height (cm) | 14.45 |
| Ship length (cm) | 24.59 |
| Ship width (cm) | 8.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Overall Width | Shaft Size | Insert | Max. Speed | Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MPD-35 CXU | 2 3/16" | 10 1/4" | 5.63" | 3.13" | - | 3-23D | 4100 RPM | 3/4" | €642.29 | |
 |
MPD-39 CXU | 2 7/16" | 11 1/4" | 6 1/4" | 3 1/2" | 2 7/16" | 3-27D | 3600 RPM | 3/4" | €902.33 | |
 |
MPD-55 | 3 7/16" | 15" | 8 1/4" | - | 3 7/16" | 3-37D | 2800 RPM | 7/8" | €2,364.12 | |
 |
MPD-35 | 2 3/16" | 10 1/4" | 5.63" | 3.13" | - | 3-23D | 4100 RPM | 3/4" | €642.29 | |
 |
MPD-23 | 1 7/16" | 8" | 4.19" | 2.31" | - | 3-17D | 5850 RPM | 1/2" | €380.62 | |
 |
MPD-32 | 2" | 9 1/2" | 5.09" | 2 22/25" | - | 2-2D | 4500 RPM | 5/8" | €610.30 | |
|
MPD-40 | 2 1/2" | 11 1/4" | 6 1/4" | 3 1/2" | 2 1/2" | 3-28D | 3600 RPM | 3/4" | €1,029.47 |
