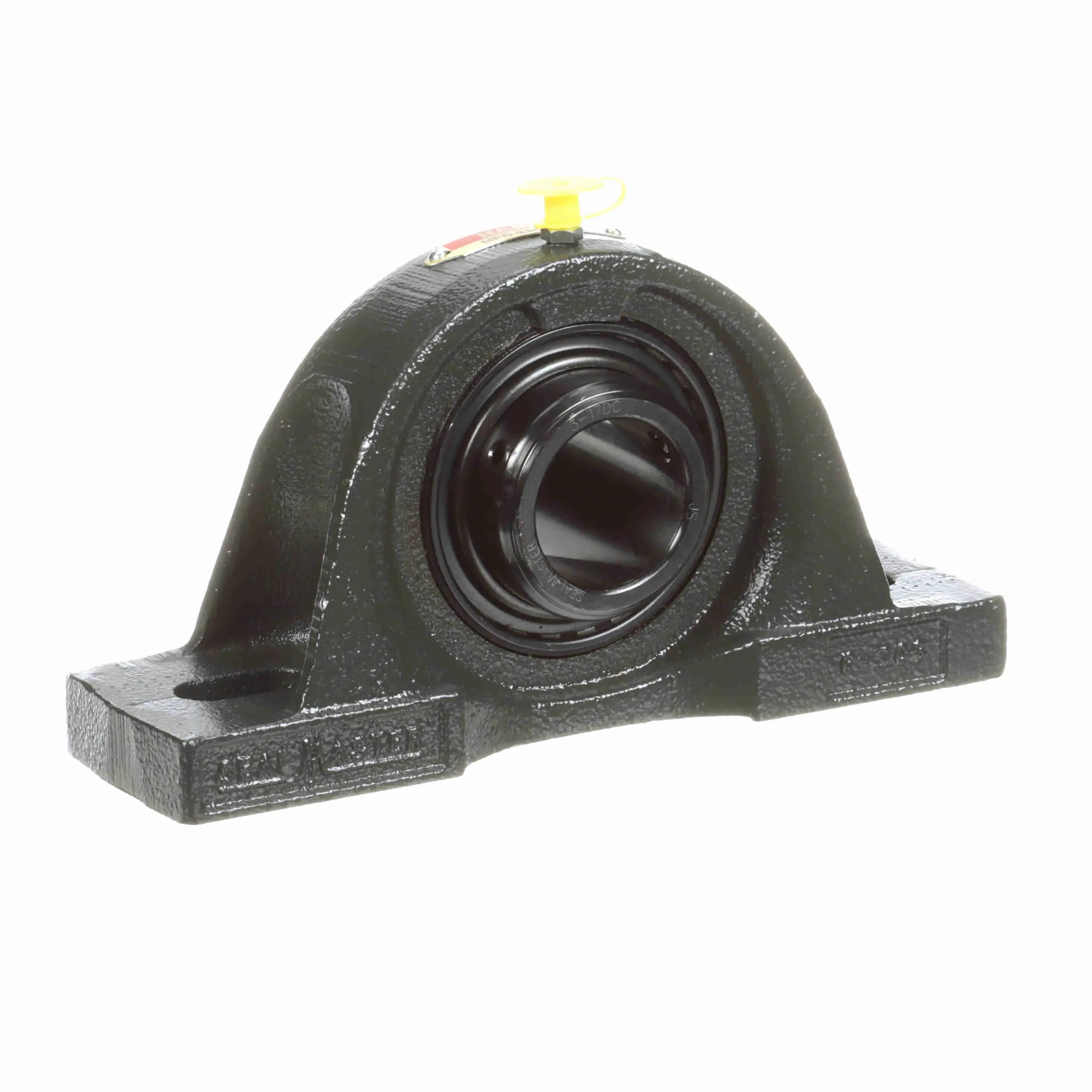

SEALMASTER MPD-23C 702680 Pillow Block Ball Bearing Unit, 2-Bolt Base, 1-7/16 Inch Bore
Get it by Friday, Aug 28
€380.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 8" |
| Base To Center Height | 2 1/8" |
| Base Width | 2 1/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 5.69" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.156" |
| Dynamic Load Capacity | 7340 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 3/4" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 3-17D |
| Inside Ring Outside Dia. | 2.07" |
| Length Through Bore | 2.31" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 6.38" |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4150 RPM |
| Min. Bolt Spacing | 5" |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 4.19" |
| Overall Length | 8" |
| Overall Width | 2.31" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Double Set Screw |
| Size Code | 2-19 |
| Static Load Rating | 4467 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0909 cPS |
| Vibration Frequency Outer Ring Defect | 0.0591 cPS |
| Vibration Frequency Roller Spin | 0.0376 cPS |
Shipping Info:
| Ship weight (kg) | 3.11 |
| Ship height (cm) | 13.18 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 6.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Bolt Size | Base Width | Overall Width | Seal Type | Dynamic Load Capacity | Base To Center Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MPD-35 CXU | 2 3/16" | 5.63" | 3/4" | 3.13" | 3.13" | Felt Labyrinth Seal | 11789 lbs. | 2 3/4" | €642.29 | |
 |
MPD-39 CXU | 2 7/16" | 6 1/4" | 3/4" | 3 1/4" | 3 1/2" | - | 13971 lbs. | 3" | €902.33 | |
 |
MPD-55 | 3 7/16" | 8 1/4" | 7/8" | 4.38" | - | - | 21566 lbs. | 4" | €2,364.12 | |
 |
MPD-35 | 2 3/16" | 5.63" | 3/4" | 3.13" | 3.13" | Felt Labyrinth Seal | 11789 lbs. | 2 3/4" | €642.29 | |
 |
MPD-23 | 1 7/16" | 4.19" | 1/2" | 2 1/4" | 2.31" | Felt Labyrinth Seal | 7340 lbs. | 2 1/8" | €380.62 | |
 |
MPD-32 | 2" | 5.09" | 5/8" | 2 22/25" | 2 22/25" | Felt Labyrinth Seal | 9752 lbs. | 2 1/2" | €610.30 | |
|
MPD-40 | 2 1/2" | 6 1/4" | 3/4" | 3 1/4" | 3 1/2" | - | 13971 lbs. | 3" | €1,029.47 |
