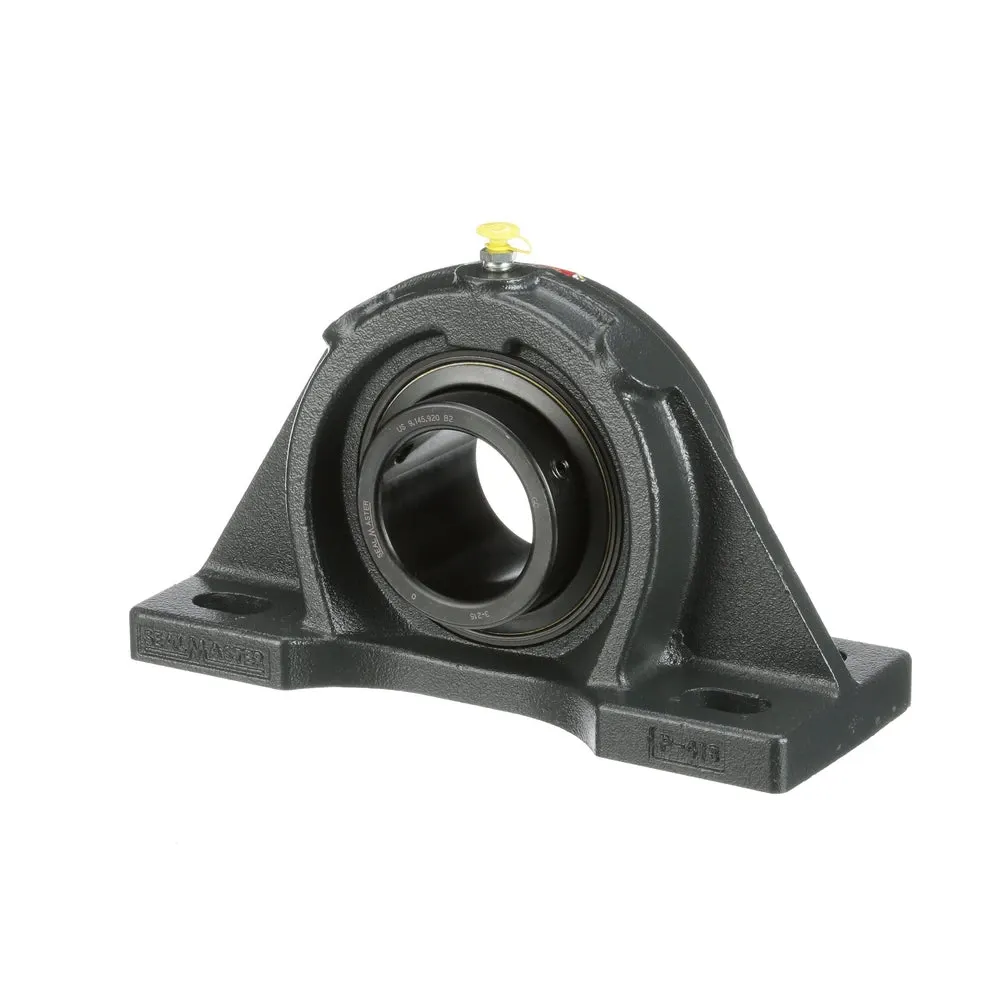

SEALMASTER MFPD-63C 708209 Pillow Block Bearing, 4 Bolt, 3.93 Inch Bore, Set Screw Mount
Get it by Tuesday, Aug 25
€5,747.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Base Height | 1 1/4" |
| Base To Bore Centerline | 5" |
| Base Width | 6" |
| Bearing Design | Non Expansion |
| Bearing Type | Ball Bearing |
| Bolt Hole | 4 |
| Bolt Hole Length | 1 11/16" |
| Bolt Hole Spacing | 13 1/4" |
| Bolt Hole Spacing Width | 3 1/2" |
| Bolt Hole Width | 1" |
| Bore Dia. | 3 15/16" |
| Bore Type | Round |
| Dynamic Radial Load Capacity | 29905 lbf. |
| End Type | Open End |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Finish, Coating | Uncoated |
| Housing Height | 10 1/4" |
| Htc | 8483.20.8040 |
| Length Through Bore | 5 3/8" |
| Locking Device | Double Setscrew Locking Collars |
| Max. Bolt Hole Spacing | 14 1/16" |
| Max. Speed | 5850 RPM |
| Max. Temp. | 250°F |
| Min. Bolt Hole Spacing | 12 7/16" |
| Mounting Type | 2 Bolt Base |
| Operating Temp. Range | -20°F to +220°F |
| Overall Height | 10 1/4" |
| Overall Width | 5 3/8" |
| Pillow Block Type | Thru-Bolt |
| Pre Lubricant | Lithium Complex |
| Replacement Bearing | 3-315D |
| Seal Type | Contact Seal |
| Series | MFPD Series |
| Shaft Dia. | 3 15/16" |
| Static Radial Load Capacity | 23553 lbf. |
Shipping Info:
| Ship weight (kg) | 38.7 |
| Ship height (cm) | 32.39 |
| Ship length (cm) | 45.09 |
| Ship width (cm) | 17.78 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Overall Width | Base Width | Overall Height | Dynamic Load Capacity | Bolt Size | Base To Center Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MFPD-31 | Felt Seal | - | - | - | - | - | - | - | €1,486.15 | |
 |
MFPD-39 | Felt Seal | - | - | - | - | - | - | - | €1,023.79 | |
 |
MFPD-39C | Single Lip Contact | - | - | - | - | - | - | - | €993.97 | |
 |
MFPD-79 | - | 4 15/16" | 5 3/4" | 5 1/2" | 12.13" | 37482 lbs. | 1" | 6" | €9,747.33 | |
 |
MFPD-35 | Felt Seal | - | - | - | - | - | - | - | €3,147.90 | |
 |
MFPD-71 | - | 4 7/16" | 5 3/4" | 5 1/2" | 12.13" | 37482 lbs. | 1" | 6" | €9,024.04 | |
 |
MFPD-56 | Felt Seal | - | - | - | - | - | - | - | €2,941.59 |
