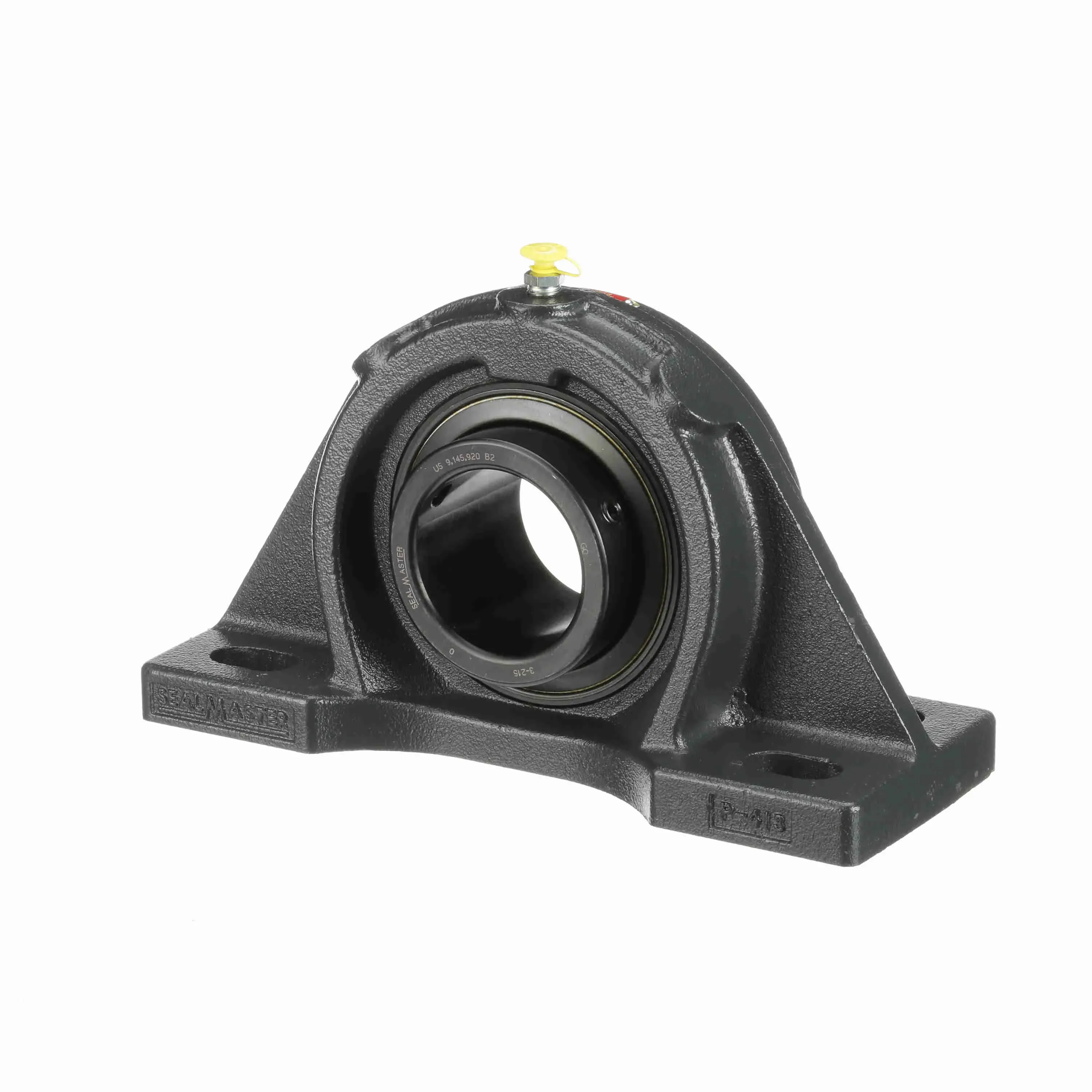

SEALMASTER MFP-35 701842 Pillow Block Ball Bearing Unit, 4-Bolt Base, 2-3/16 Inch Bore
Get it by Tuesday, Feb 24
€635.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 10 1/4" |
| Base To Center Height | 2 3/4" |
| Base Width | 4.13" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 5/8" |
| Bolt Spacing Max | 8.13" |
| Bolt Spacing Min | 6 22/25" |
| Bolt Spacing Width Direction | 2 1/4" |
| Bore Dia. | 2 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.563" |
| Dynamic Load Capacity | 11789 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 22/25" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Four Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.984" |
| Insert | 3-23 |
| Length Through Bore | 2.563" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 5.81" |
| Overall Length | 10 1/4" |
| Overall Width | 4.13" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Setscrew Torque | 230 lbs.-in. to 300 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-27 |
| Static Load Rating | 8150 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0989 cPS |
| Vibration Frequency Outer Ring Defect | 0.0678 cPS |
| Vibration Frequency Roller Spin | 0.0432 cPS |
Shipping Info:
| Ship weight (kg) | 7.81 |
| Ship height (cm) | 19.38 |
| Ship length (cm) | 27.18 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Width | Overall Height | Housing Type | Shaft Size | Insert | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MFP-31 | 1 15/16" | 9 3/4" | 4" | 5.38" | Pillow Block, Four Bolt | - | 3-115 | 3250 RPM | €510.46 | |
 |

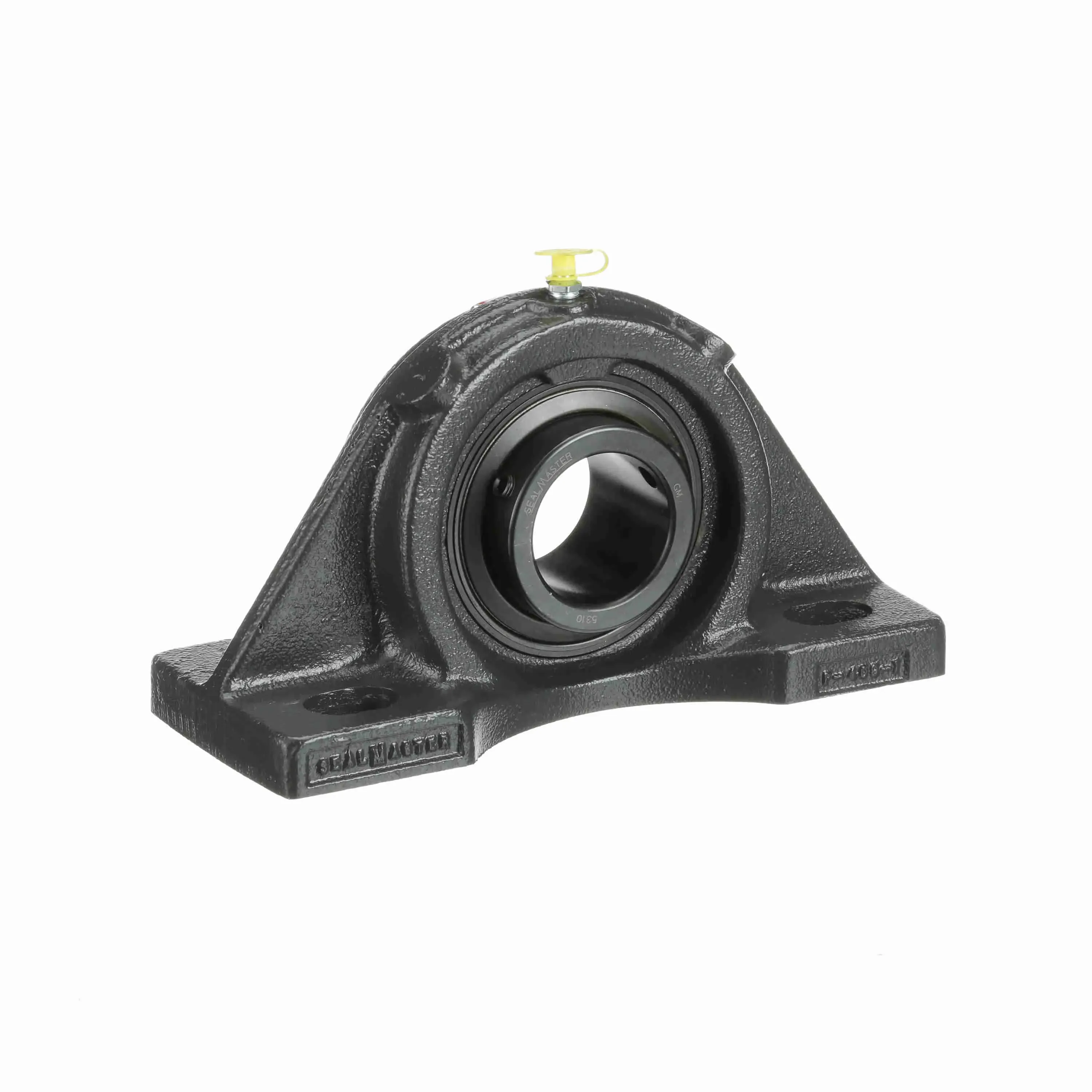

MFP-310 | 50 mm | 9 3/4" | 4" | 5.38" | Pillow Block, Four Bolt | - | 5310 | 3250 RPM | €663.20 | |
 |
MFP-313 | - | - | - | - | Four Bolt Pillow Block | 65 mm | - | - | €1,256.27 | |
 |

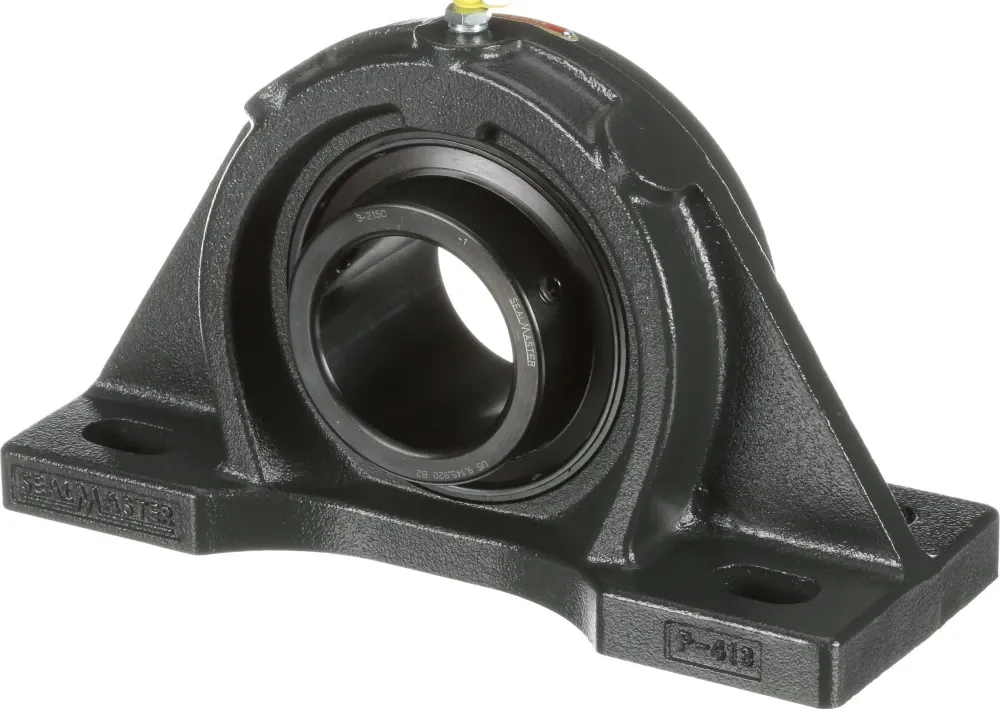

MFP-313C | - | - | - | - | Four Bolt Pillow Block | 65 mm | - | - | €1,048.75 | |
 |
MFP-315C | - | - | - | - | Four Bolt Pillow Block | 75 mm | - | - | €1,553.37 | |
 |
MFP-316 | - | - | - | - | Four Bolt Pillow Block | 80 mm | - | - | €4,673.63 | |
 |
MFP-31C | - | - | - | - | Four Bolt Pillow Block | 1 15/16" | - | - | - | RFQ
|
