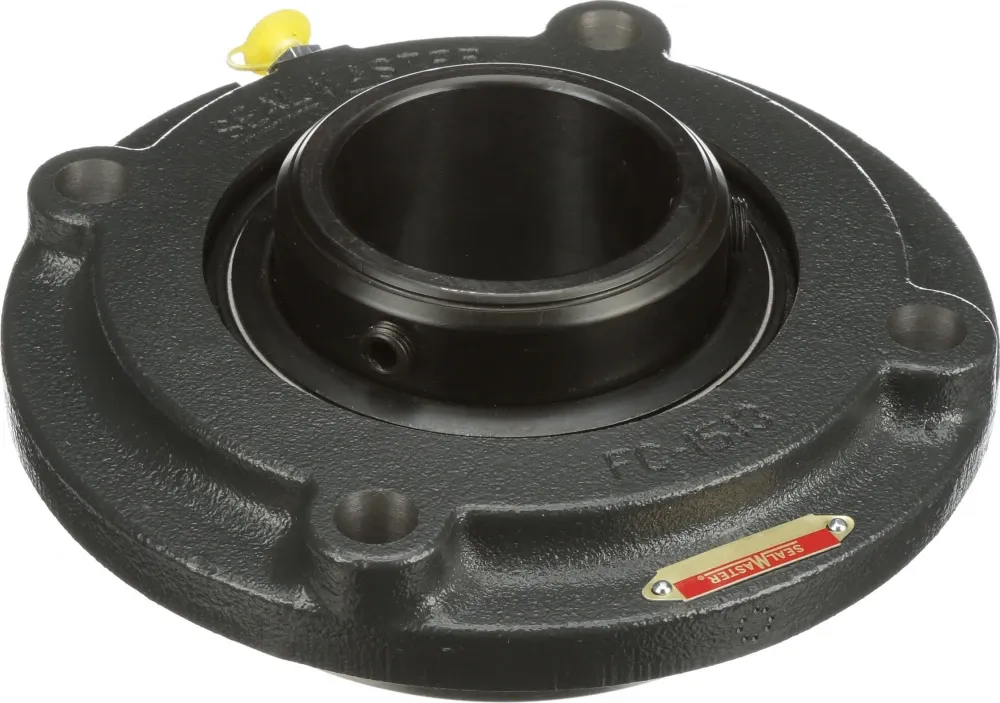

SEALMASTER MFCD-23 Flange Cartridge Bearing, 1.4375 Inch Dia, Double Setscrew Locking, Standard Felt Seal
Item: BD7EKXModel: MFCD-23
7 In Stock
Ships within 2 days via
€497.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Cartridge Bearing |
| Duty Series | Medium |
| Fixed Vs. Expansion | Fixed |
| Grease Type | Goldplex-HP |
| Housing Base | Solid |
| Housing Material | Cast Iron |
| Housing Type | Flange Cartridge |
| Locking Device | Double Set Screw |
| Max. Operating Temp. | 250°F |
| No. Links/ft. | 0 |
| Retainer Type | Metal Land Riding |
| Rolling Element | Ball |
| Seal Flinger | Yes |
| Seal Type | Standard Felt Seal |
| Shaft Size | 1 7/16" |
Shipping Info:
| Ship weight (kg) | 2.12 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 5.41 |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Pilot Dia. | Overall Height | Grease Fitting Thread Size | Length Through Bore | Dynamic Load Capacity | Radial Clearance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MFCH-24 | 1 1/2" | Felt Labyrinth Seal | 4 1/4" | 1.94" | 1/4"-28 | 1.935" | 7901 lbs. | Standard | €327.99 | |
 |
MFC-63C | 3 15/16" | - | 8.123" | 4.63" | 1/4" | 4 5/8" | 29905 lbs. | Standard | €3,312.17 | |
 |
MFC-28 | 1 3/4" | Felt Labyrinth Seal | 4 1/4" | 2.03" | 1/8" | 2.029" | 7889 lbs. | Standard | €365.15 | |
 |
MFC-43 | 2 11/16" | - | 6 3/8" | 3.06" | 1/8" | 3.06" | 14839 lbs. | Standard | €865.02 | |
 |
MFC-47 | 2 15/16" | - | 6 3/8" | 3 1/4" | 1/4" | 3.248" | 17412 lbs. | Standard | €956.38 | |
 |
MFC-20 | 1 1/4" | Felt Labyrinth Seal | 3 3/8" | 1.69" | 1/4"-28 | 1.688" | 5782 lbs. | Standard | €261.08 | |
 |
MFC-39 | 2 7/16" | - | 5 1/2" | 2 21/25" | 1/8" | 2.748" | 13971 lbs. | Standard | €760.21 |
