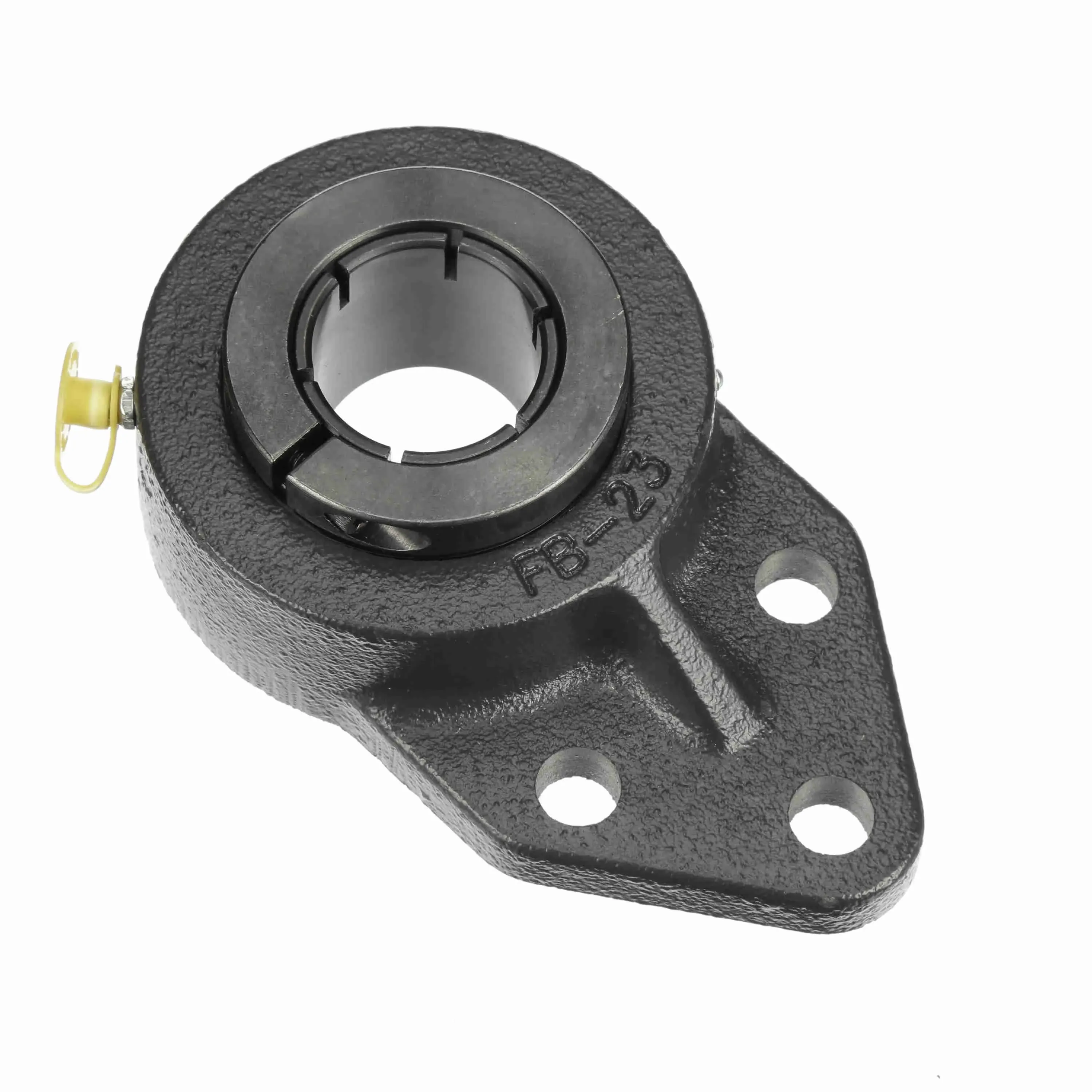

SEALMASTER FB-23T 705619 Mounted Cast Iron Three Bolt Flange Bracket Ball Bearing
Get it by Wednesday, Aug 26
€268.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base To Center Height | 4 1/4" |
| Bearing Centerline To Bolt Hole Center | 2 3/8" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 2" |
| Bolt Spacing Height Direction | 1 1/4" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1/2" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Bracket, Three Bolt |
| Housing Width | 3 3/4" |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 2-17T |
| Inside Ring Outside Dia. | 1.862" |
| Length Through Bore | 1.81" |
| Locking Collar Outside Dia. | 2 1/2" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 6500 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.94" |
| Overall Length | 6.13" |
| Overall Width | 3 3/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0386 cPS |
Shipping Info:
| Ship weight (kg) | 1.75 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 17.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Housing Type | Max. Operating Temp. | Rolling Element | Overall Width | Housing Width | Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FB-22C CR | - | 1 3/8" | - | - | - | 1 7/8" | 1.4688" | - | €493.18 | |
 |
FB-16T | Felt Labyrinth Seal | 1" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2 3/4" | 2 3/4" | 3/8" | €221.76 | |
 |
FB-16C | Single Lip Contact Seal | 1" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2 3/4" | 2 3/4" | 3/8" | €217.54 | |
 |
FB-15T | Felt Labyrinth Seal | 15/16" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2 3/4" | 2 3/4" | 3/8" | €278.53 | |
 |
FB-20 | Felt Labyrinth Seal | 1 1/4" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 3 3/4" | 3 3/4" | 1/2" | €263.26 | |
 |
FB-16 W | Felt Labyrinth Seal | 1" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2 3/4" | 2 3/4" | 3/8" | €226.67 | |
 |
FB-12TC | Single Lip Contact Seal | 3/4" | Flange, Bracket, Three Bolt | 220°F | Ball Bearing | 2.38" | 2.38" | 3/8" | €157.71 |
