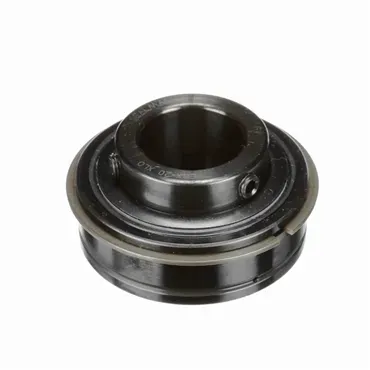

SEALMASTER ERX-19T XLO Insert Bearing, 1.18 Inch Bore, 7/8 Inch Outer Race Width, 2.441 Inch Out Dia
Get it by Thursday, Jul 16
€129.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Insert Bearing |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide |
| Bearing Material | Black Oxided Bearing Steel |
| Bore Shape | Straight |
| Bore Type | Round Bore |
| Cage Material | Plastic |
| Centerline To Front Face | 0.938" |
| Duty Series | Standard |
| Dynamic Radial Load Capacity | 4381 lbs. |
| Enclosure | Double Sealed |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Fillet Radius | 1/25" |
| Housing Type | Insert (Er Style) |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert Material | Bearing Steel, Black Oxided |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Locking Device | Skwezloc Collar |
| Locking Type | Concentric |
| Max. Operating Temp. | 220°F |
| Max. Speed | 2150 RPM |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +220°F |
| Outer Race Width | 7/8" |
| Outer Ring Land Profile | Tapered |
| Outer Ring Width | 7/8" |
| Outside Dia. | 62 mm |
| Outside Race Outside Dia. | 2.441" |
| Radius | 0.04 |
| Relubricatable | Yes |
| Retainer Type | Land Riding |
| Seal Type | Cut Down Felt Labyrinth |
| Series | ERX-T Series |
| Static Load Capacity | 2567 lbf. |
| Static Radial Load Capacity | 2567 lbs. |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 3.97 |
Product Variants
| Product | Model | Housing Type | Bore Dia. | Overall Width | Seal Type | Max. Operating Temp. | Max. Speed | Dynamic Radial Load Capacity | Locking Device | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ERX-35 HI | Insert Er Style | 2 3/16" | 2.188" | High Temp Labyrinth | 400°F | 1400 RPM | 9752 lbs. | - | €270.45 | |
 |
ERX-PN31T | Insert Er Style | 1 15/16" | 2.094" | Triple Lip Contact Seal | 220°F | 1500 RPM | 7889 lbs. | - | €432.75 | |
 |
ERX-12T LO | Insert Er Style | 3/4" | 1.281" | Cut Down Felt Labyrinth | 220°F | 5800 RPM | 2611 lbs. | - | €140.54 | |
 |
ERX-PN20 | Insert Er Style | 1 1/4" | 1.688" | Triple Lip Contact Seal | 220°F | 2000 RPM | 5782 lbs. | - | €237.30 | |
|
ERX-PN23T | Insert Er Style | 1 7/16" | 1 3/4" | Triple Lip Contact Seal | 220°F | 2000 RPM | 5782 lbs. | - | €290.90 | |
 |
ERX-39 XLO | Insert Only | - | - | Extra Low Drag Felt | - | - | - | Single Set Screw | €336.38 | |
 |
ERX-12 XLO | Insert Er Style | 3/4" | 1.219" | Cut Down Felt Labyrinth | 220°F | 2900 RPM | 2611 lbs. | - | €68.45 |
