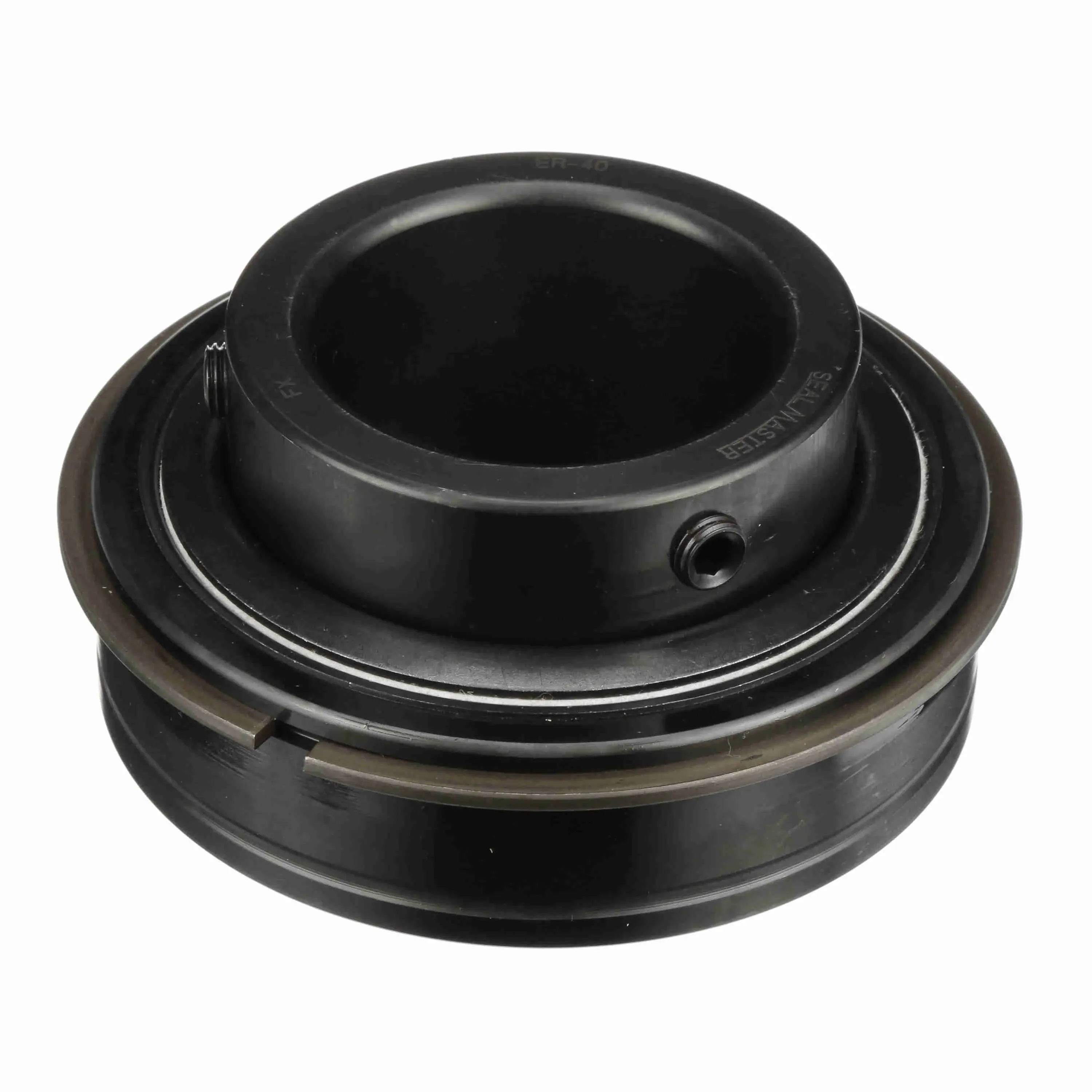

SEALMASTER ER-40 Insert Bearing, ER-40, 2 1/2 Inch Size Bore, 4 29/32 Inch Size OD | CU2KWK 44A683

SEALMASTER ER-40 701087 Insert Bearing, ER-40, 2 1/2 Inch Size Bore, 4 29/32 Inch Size OD

Item: CU2KWKModel: ER-40Cross Ref: 44A683 / 701087
7 In Stock

Ships within 2 days via

€753.79
10.00% off
€678.41 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Bearing
Ability To Relubricate Yes
Ball Material Alloy Steel
Bearing Insert Finish Black Oxide
Bearing Insert Type Radial/Deep Groove Ball
Bore Dia. 2 1/2"
Bore Dia. Tolerance -0.001" to 0"
Bore Shape Straight
Cage Material Brass
Centerline To Front Face 1.688"
Closure Double Sealed
Duty Series Standard
Duty/series Standard Series
Dynamic Radial Load Capacity 13971 lbs.
Element Material Alloy Steel
End Cap No
Expansion No
Features 120° Spacing Setscrew Lock With Diamond Faceted Setscrews, 360° Grease Circulation Around The Rolling Elements, Better Retained And Utilized Lubrication, Unique Land Riding Retainer Design Provides Superior Pocket Clearance, Use In Sealmaster Machined Housings Only
Finish Black Oxide
For Environment Highly Dusty And Dirty
Grade Grade 52100
Height 5.56"
Htc 8482.10.5056
I.d. 2 1/2"
Includes Retaining Ring, Set Screws
Inner Race Heat Treat Method Zone Hardened
Inner Race Length 2 3/4"
Inner Race Profile Wide Inner Ring
Inner Ring Outside Dia. 3.438"
Inner Ring Width 2 3/4"
Inner-race Heat-treat Method Zone Hardened
Insert Material Steel
Insert Material Finish Black Oxide
Insert Material Grade 52100
Insert Shape Cylindrical
Internal Clearance Standard
Length 5 1/2"
Load Direction Radial
Locking Device Single Set Screw
Lubricant Material Class NLGI#2 Equivalent
Lubrication Openings Grease Fitting
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Operating Temperature 220°F
Max. Speed 2500 RPM
Max. Temp. 220°F
Misalignment Type Static Only
Outer Race Od 4.921"
Outer Race Profile Cylindrical
Outer Race Width 1 3/8"
Outer Ring Land Profile Standard
Outer Ring Width 1 3/8"
Outside Dia. 4.906"
Overall Width 2 3/4"
Platform Gold Line Ball Bearing
Precision Rating Abec 1
Radius 2/25"
Retainer Type Land Riding Retainer
Ring End To Center Width 1.688"
Ring Material Alloy Steel
Rolling Element Rows 1
Seal Material Felt
Set Screw Thread Size 7/16"-20
Set Screw Thread Type UNF
Shaft Locking Type Set Screws
Shaft Size 2 1/2"
Static Radial Load Capacity 10063 lbs.
Width 3.13"

Shipping Info:

Ship weight (kg) 2.77
Ship height (cm)7.95
Ship length (cm)13.97
Ship width (cm)14.12
Country of OriginUS

Product Variants

ProductModelBore Dia.Outer Ring WidthOutside Dia.Dynamic Radial Load CapacityMax. SpeedOverall WidthSeal TypeCage MaterialPrice
SEALMASTER ER-212TM SEALMASTER ER-212TM | BD6ETU ER-212TM--------€234.29
SEALMASTER ER-16TC SEALMASTER ER-16TC | BD6GVE ER-16TC1"--2801 lbs.6350 RPM1.438"Single Lip Contact SealPolyphenylene Sulfide€88.92
SEALMASTER ER-34 SEALMASTER ER-34 | BD6HFG ER-342 1/8"1.188"-9752 lbs.3250 RPM2.188"Felt Labyrinth SealPolyphenylene Sulfide€544.00
SEALMASTER ER-32R SEALMASTER ER-32R | BD6KLE ER-32R2"1.125"-9752 lbs.3550 RPM2.031"Felt Labyrinth SealPolyphenylene Sulfide€394.62
SEALMASTER ER-12C SEALMASTER ER-12C | BD6LPJ ER-12C3/4"--2611 lbs.6450 RPM1.219"Single Lip Contact SealPolyphenylene Sulfide€54.47
SEALMASTER ER-20C SEALMASTER ER-20C | BD6MEH ER-20C1 1/4"--5782 lbs.4650 RPM1.688"Single Lip Contact SealPolyphenylene Sulfide€84.59
SEALMASTER ER-16T DRT SEALMASTER ER-16T DRT | BD6QUV ER-16T DRT--------€126.00
