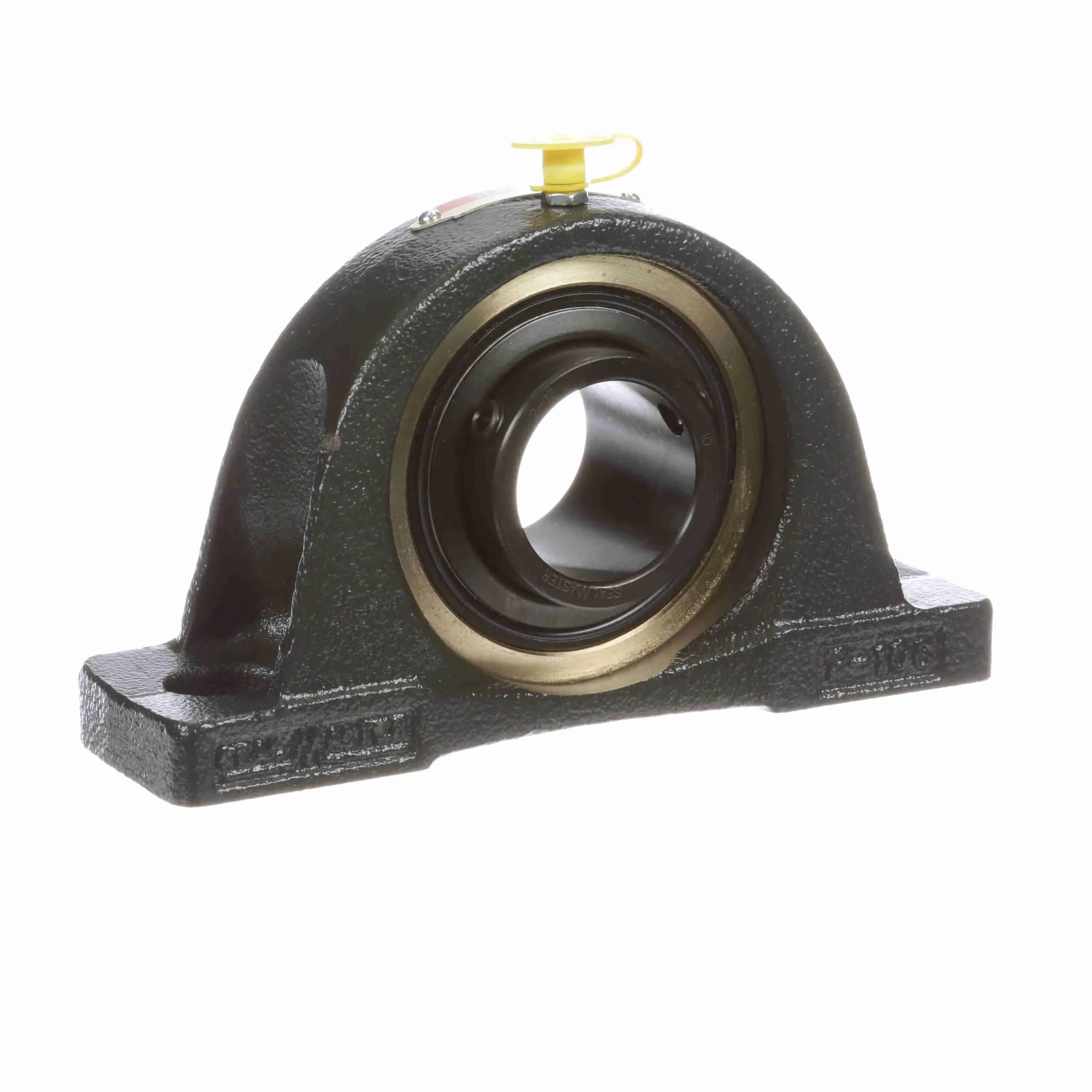

SEALMASTER ENP-23 707282 Pillow Block Ball Bearing, 2 Bolt, Black Oxided, Setscrew Lock, 1.438 Inch
Get it by Monday, Aug 31
€474.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Ability To Relubricate | Yes |
| Base Length | 6 14/25" |
| Base To Center Height | 1 7/8" |
| Base Width | 1 22/25" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 5" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1" |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Expansion |
| Foot Height | 0.63" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | AR-2-17 |
| Inside Ring Outside Dia. | 1.851" |
| Length Through Bore | 1.685" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 5.31" |
| Max. Operating Temp. | 220°F |
| Max. Speed | 4650 RPM |
| Min. Bolt Spacing | 4.69" |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 3/4" |
| Overall Length | 5.38" |
| Overall Width | 1 22/25" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0386 cPS |
Shipping Info:
| Ship weight (kg) | 2.12 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 17.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Width | Overall Height | Base Width | Dynamic Load Capacity | Bolt Size | Base To Center Height | Insert Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

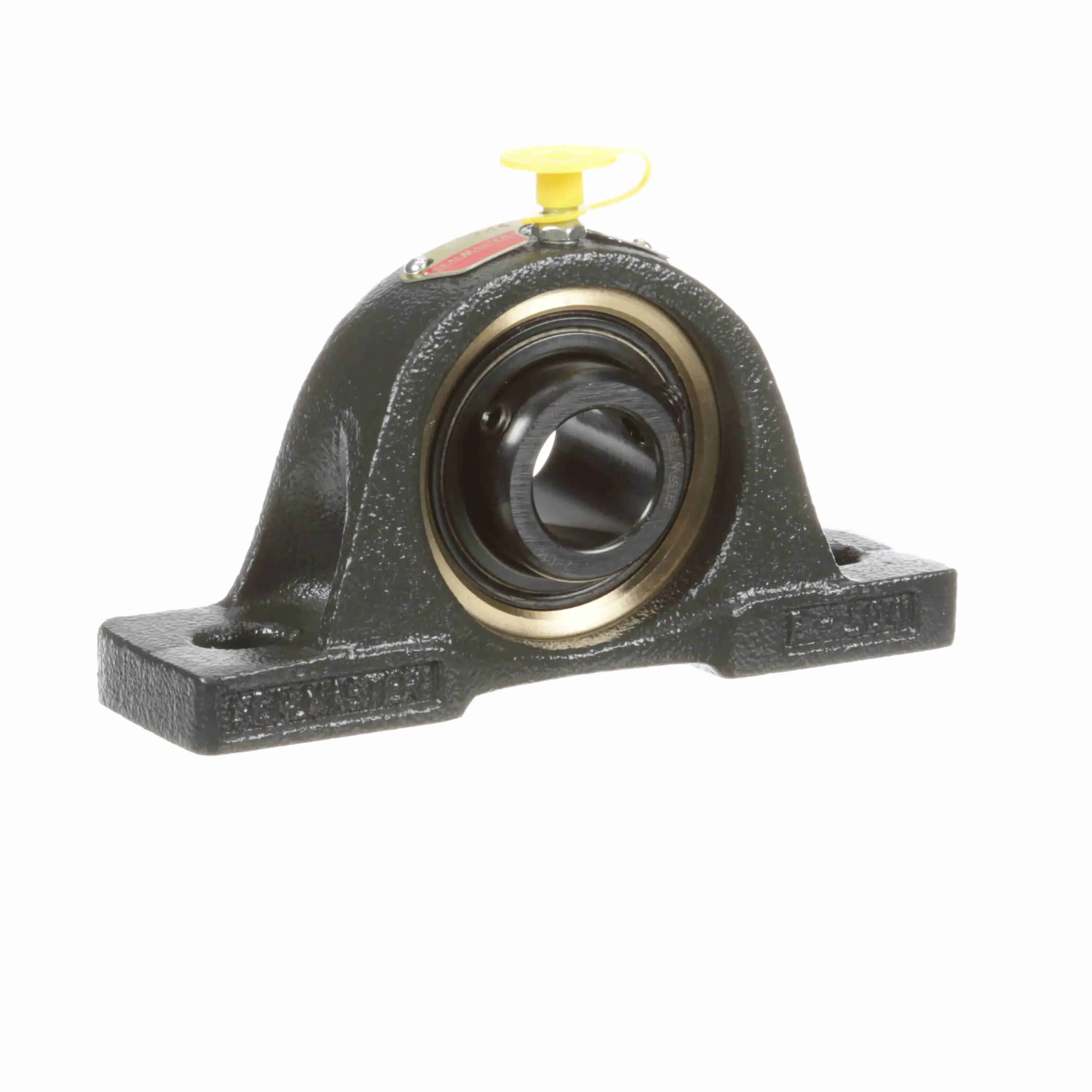

ENP-14 | 7/8" | 1 1/2" | 2.81" | 1 1/2" | 2801 lbs. | 3/8" | 1 7/16" | - | €376.70 | |
 |
ENP-27 CXU | - | - | - | - | - | - | - | - | €1,446.30 | |
 |

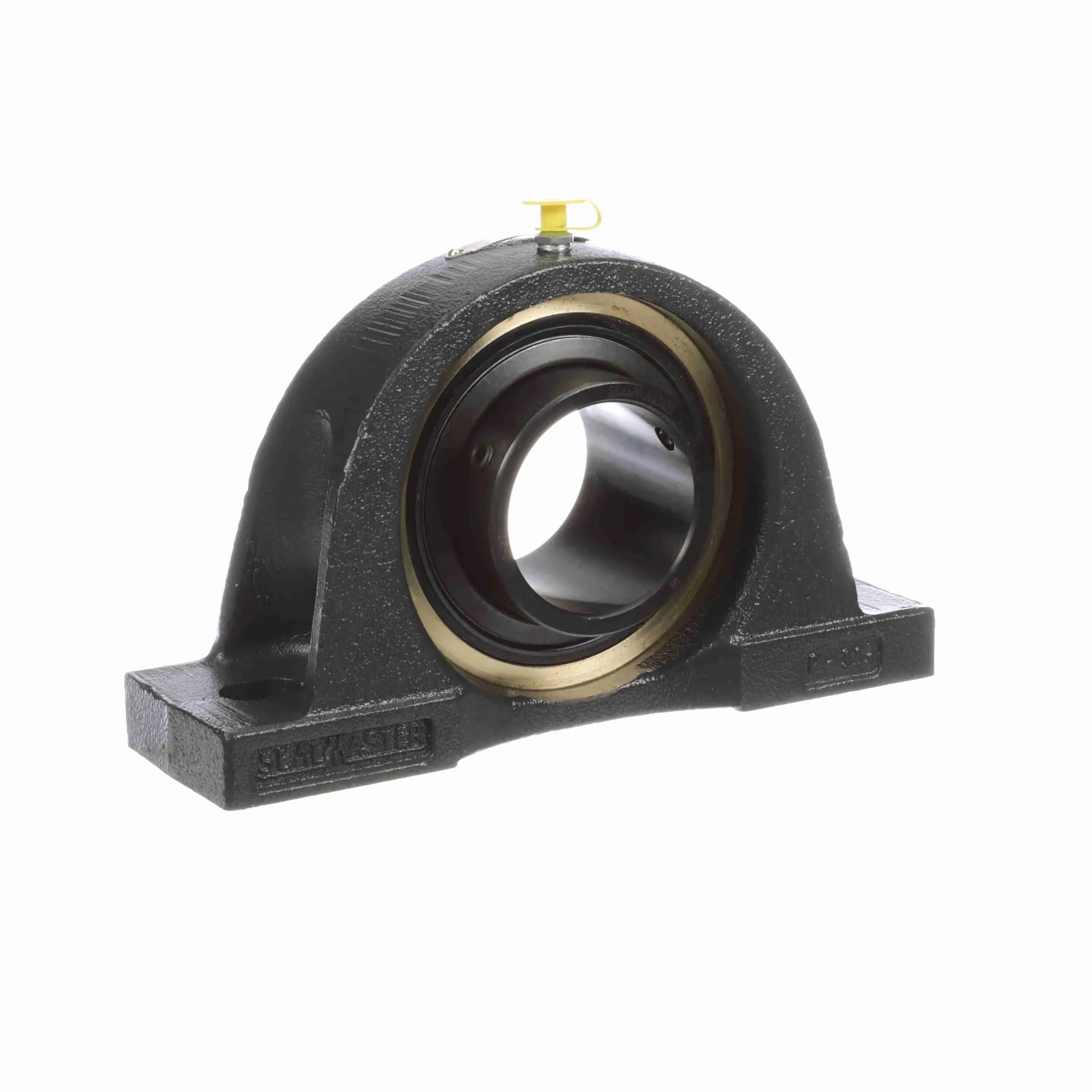

ENP-39 | 2 7/16" | 2 3/4" | 5 14/25" | 2 3/4" | 11789 lbs. | 5/8" | 2 3/4" | - | €808.43 | |
 |

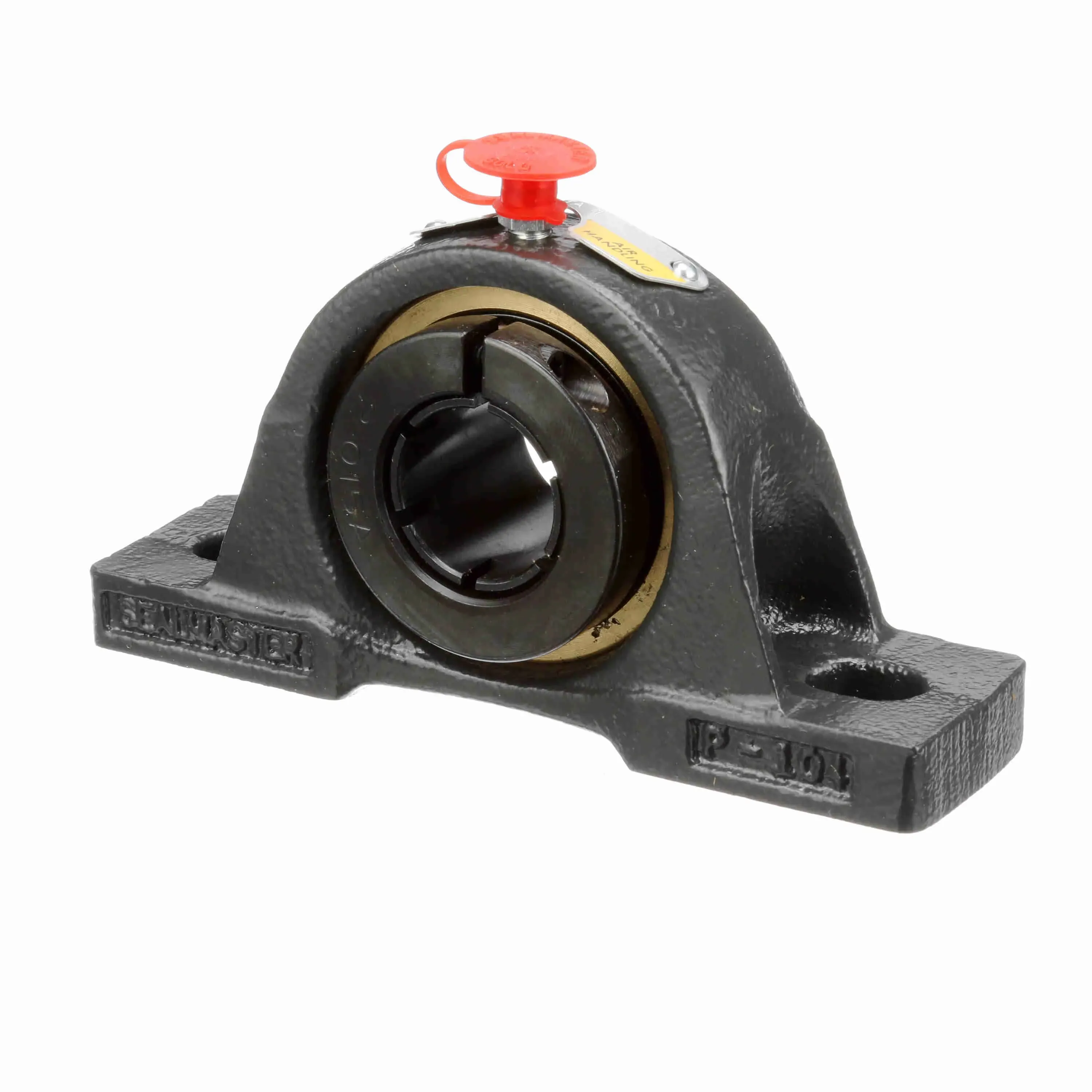

ENP-16T | 1" | 1 1/2" | 2.81" | 1 1/2" | 2801 lbs. | 3/8" | 1 7/16" | - | €409.40 | |
|
ENP-31T HT | - | - | - | - | - | - | - | - | €1,189.08 | |
 |

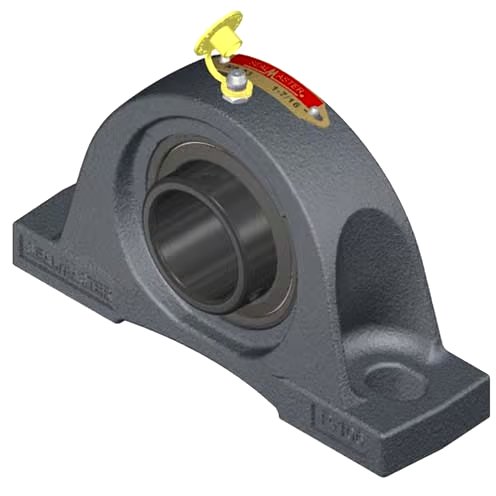

ENP-27 HI | 1 11/16" | 1 15/16" | - | - | - | - | - | - | €3,132.34 | |
|
ENP-19 HT | - | - | - | - | - | - | - | - | €2,228.95 |
