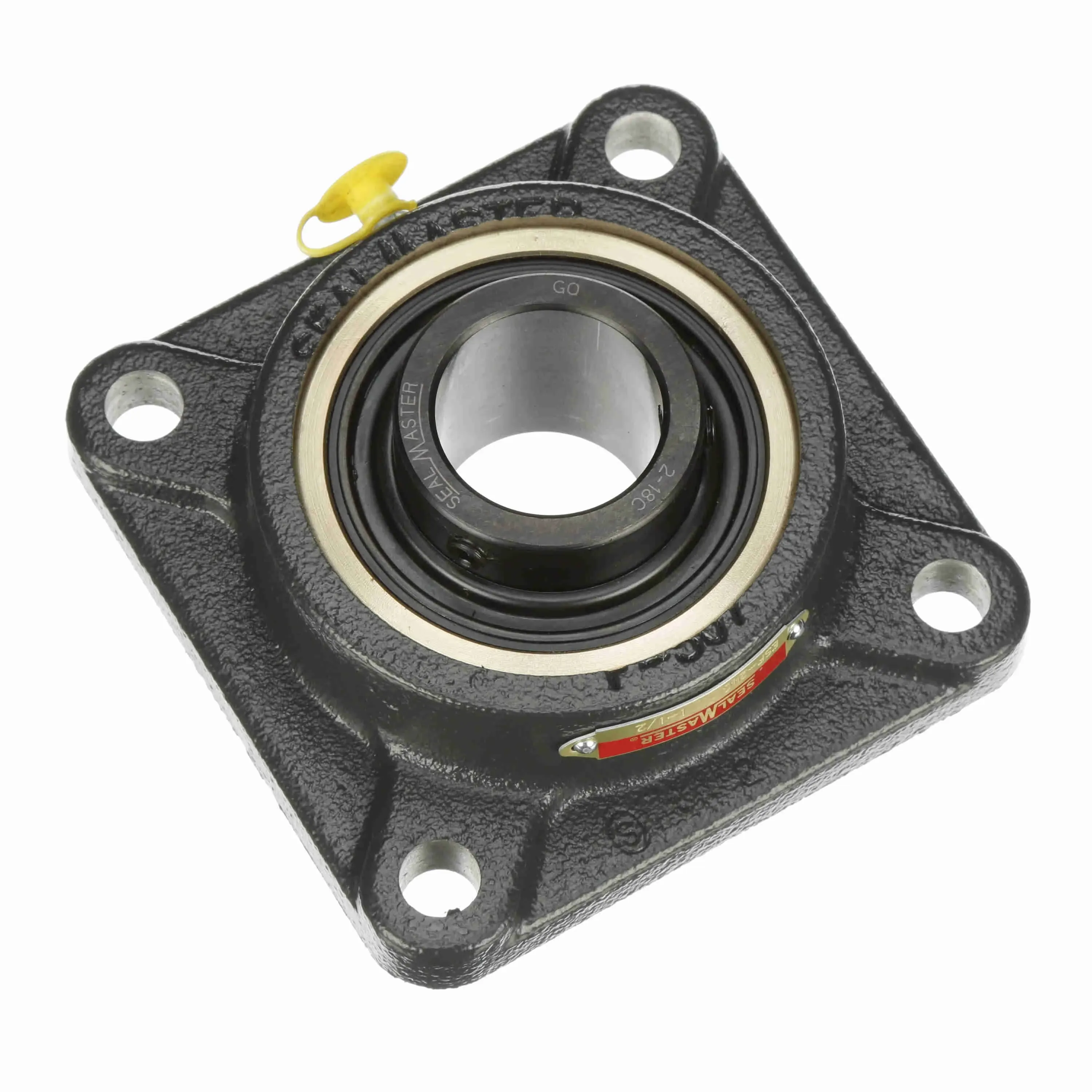

SEALMASTER EMSF-47C 710921 Flange-Mount Ball Bearing Unit, 2-15/16 Inch Bore
Get it by Friday, Aug 28
€1,904.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Size | 3/4" |
| Bolt Spacing | 6" |
| Bore Dia. | 2 15/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 17412 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Expansion |
| Foot Height | 22/25" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4" |
| Grease Fitting Thread Type | NPT |
| Height | 3 1/2" |
| Housing Backside Inside Dia. | 5.56" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | AR-3-215C |
| Inside Ring Outside Dia. | 3.922" |
| Length | 8.13" |
| Length Through Bore | 3 1/4" |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 1950 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 3 1/2" |
| Overall Length | 7 3/4" |
| Overall Width | 7 3/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-33 |
| Static Load Rating | 13174 lbs. |
| Width | 7.94" |
Shipping Info:
| Ship weight (kg) | 9.63 |
| Ship height (cm) | 20.17 |
| Ship length (cm) | 20.65 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Seal Type | Bolt Size | Overall Height | Foot Height | Grease Fitting Thread Size | Length Through Bore | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

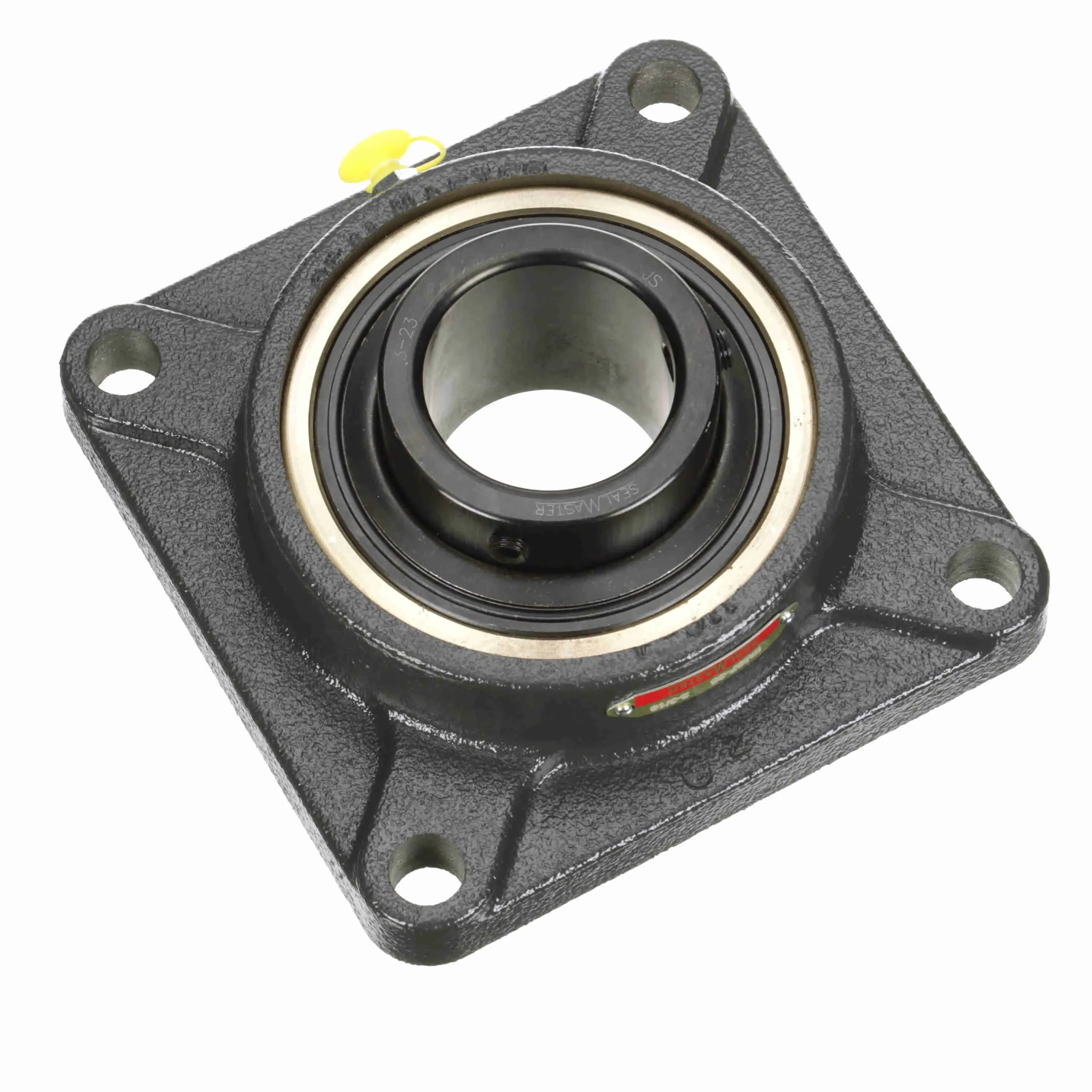

EMSF-35 | 2 3/16" | Felt Labyrinth Seal | 5/8" | 2.688" | 0.81" | 1/8" | 2.559" | 6 22/25" | €845.70 | |
|
EMSF-43 | 2 11/16" | Felt Labyrinth Seal | 3/4" | 3.188" | 1" | 1/8" | 3.06" | 7 3/4" | €2,165.13 | |
|
EMSF-27 | 1 11/16" | Felt Labyrinth Seal | 9/16" | 2.156" | 14/25" | 1/8" | 2.027" | 5.63" | €634.65 | |
 |
EMSF-39 CPJ | 2 7/16" | Felt Labyrinth Seal | 5/8" | 3" | 0.69" | 1/8" | 2.748" | 7.38" | €3,149.18 | |
 |
EMSF-39C | - | - | - | - | - | - | - | - | €2,109.88 | |
 |
EMSF-40 | - | - | - | - | - | - | - | - | €1,086.79 | |
|
EMSF-31 HI | - | - | - | - | - | - | - | - | €2,407.48 |
