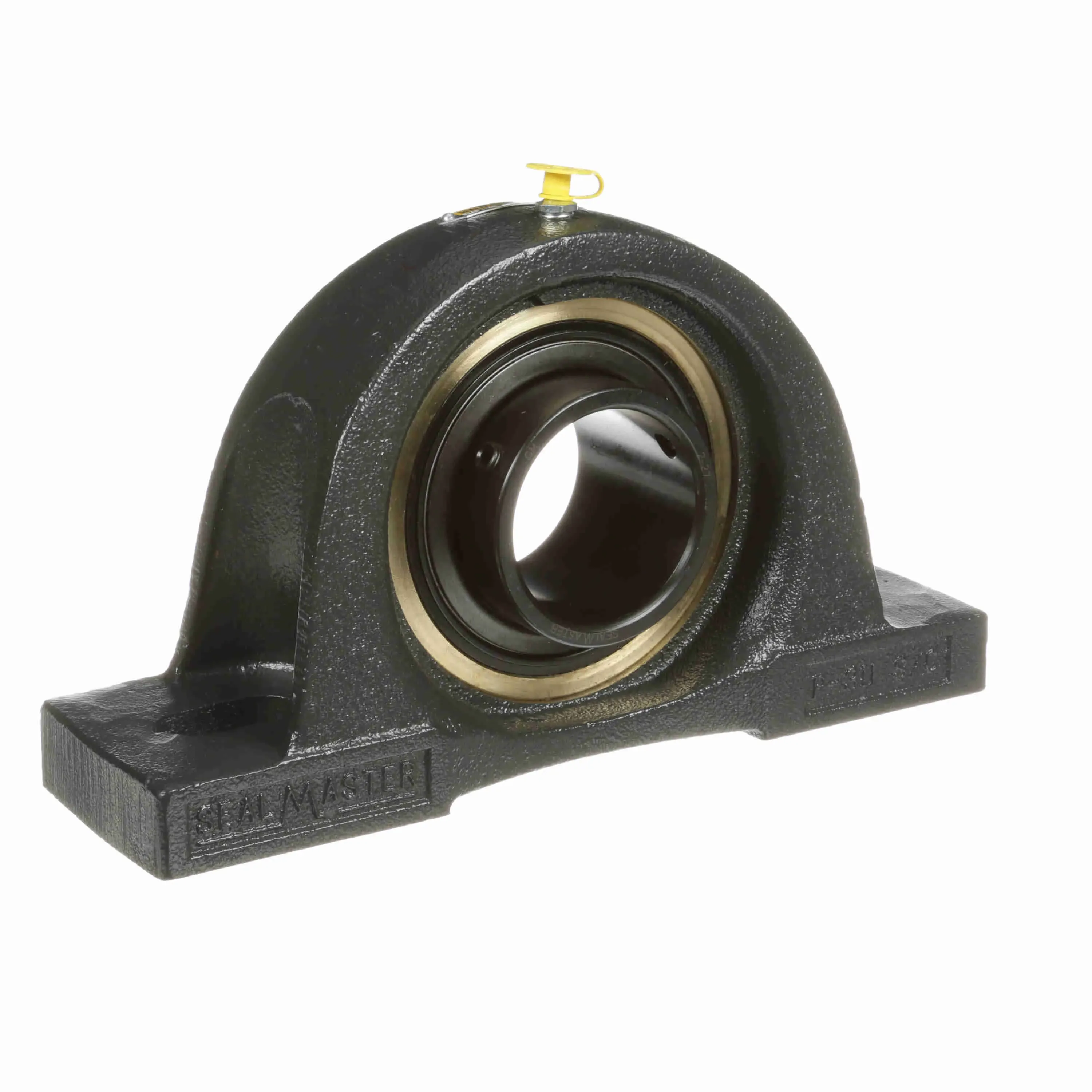

SEALMASTER EMP-39 CXU 718226 Pillow Block Bearing, 2 Bolt, 2.4375 Inch Dia, Setscrew Locking, Standard Felt Seal
Get it by Tuesday, Sep 1
€899.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 11 1/4" |
| Base To Center Height | 3" |
| Base Width | 3 1/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 3/4" |
| Bore Dia. | 2 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.688" |
| Dynamic Load Capacity | 11789 lbs. |
| End Cap | No |
| Expansion Capability | 0.19" |
| Fixed Vs. Expansion | Expansion |
| Foot Height | 1.06" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | AR-2-27 |
| Inside Ring Outside Dia. | 2.984" |
| Length Through Bore | 2 3/4" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 8 22/25" |
| Max. Operating Temp. | 220°F |
| Max. Speed | 3000 RPM |
| Min. Bolt Spacing | 7.13" |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Air Handling Housing Fit, Noise Tested |
| Outer Ring Land Profile | Standard |
| Overall Height | 6 1/4" |
| Overall Length | 11 1/4" |
| Overall Width | 3 1/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Setscrew Torque | 230 lbs.-in. to 300 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-27 |
| Static Load Rating | 8150 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0982 cPS |
| Vibration Frequency Outer Ring Defect | 0.0684 cPS |
| Vibration Frequency Roller Spin | 0.0451 cPS |
Shipping Info:
| Ship weight (kg) | 8.95 |
| Ship height (cm) | 18.11 |
| Ship length (cm) | 31.45 |
| Ship width (cm) | 9.04 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Overall Height | Dynamic Load Capacity | Overall Width | Bolt Size | Base Width | Base To Center Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EMP-35 HTA | High Temp Labyrinth | 2 3/16" | 5.63" | 9752 lbs. | 3.13" | 3/4" | 3.13" | 2 3/4" | €875.91 | |
 |
EMP-27TC | Contact Seal | - | - | - | - | - | - | - | €765.07 | |
 |
EMP-35T HTA | High Temp Labyrinth | 2 3/16" | 5.63" | 9752 lbs. | 3.13" | 3/4" | 3.13" | 2 3/4" | €930.07 | |
 |
EMP-35 HTC | Standard Felt Seal | - | - | - | - | - | - | - | €3,496.77 | |
 |
EMP-51 | - | 3 3/16" | 8" | 17412 lbs. | 4" | 7/8" | 4" | 4" | €2,365.77 | |
 |
EMP-24C | Single Lip Contact Seal | 1 1/2" | 4 14/25" | 7340 lbs. | 2.63" | 5/8" | 2.63" | 2 5/16" | €573.27 | |
|
EMP-31 CXU | Felt Labyrinth Seal | 1 15/16" | 5.09" | 7889 lbs. | 2 22/25" | 5/8" | 2 22/25" | 2 1/2" | €703.47 |
