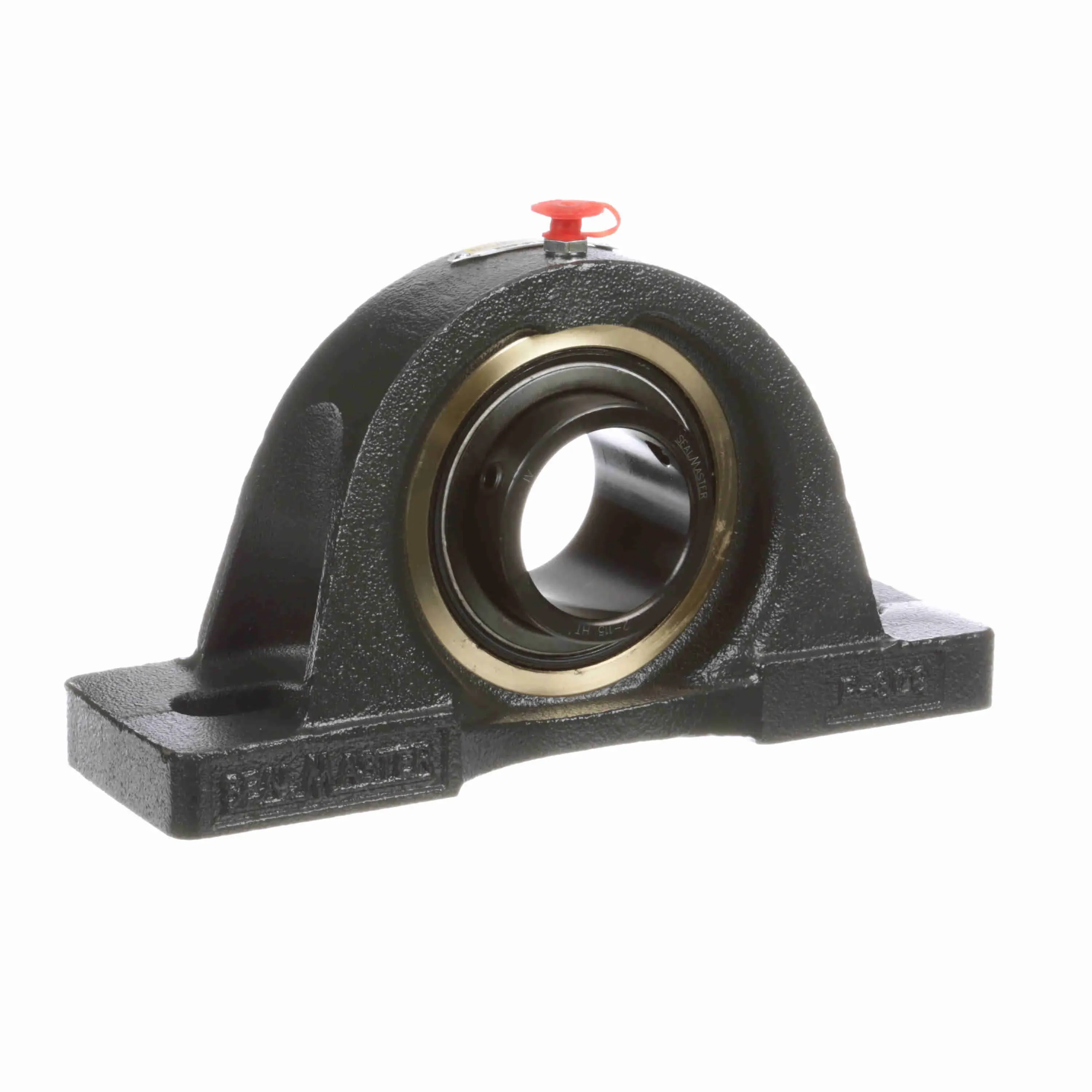

SEALMASTER EMP-31 HT 724006 Pillow Block Bearing, 2 Bolt, 1.93 Inch Bore, Set Screw Mount
Get it by Tuesday, Mar 3
€762.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 9 1/2" |
| Base To Center Height | 2 1/2" |
| Base Width | 2 22/25" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 5/8" |
| Bolt Spacing Max | 7 14/25" |
| Bolt Spacing Min | 5.94" |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.313" |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Expansion |
| Foot Height | 22/25" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.469" |
| Insert | AR-2-115 HT |
| Length Through Bore | 2.188" |
| Lubrication Type | Synthetic Nlgi 2 High Temperature Grease |
| Max. Operating Temperature | 400°F |
| Max. Speed | 1550 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | High Temperature |
| Outer Ring Land Profile | Standard |
| Overall Height | 5.09" |
| Overall Length | 5.38" |
| Overall Width | 2 22/25" |
| Radial Clearance | Increased |
| Rolling Element | Ball Bearing |
| Seal Type | High Temp Labyrinth |
| Shaft Locking Type | Set Screw |
| Size Code | 2-115 |
| Static Load Rating | 5216 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0984 cPS |
| Vibration Frequency Outer Ring Defect | 0.0683 cPS |
| Vibration Frequency Roller Spin | 0.0445 cPS |
Shipping Info:
| Ship weight (kg) | 5.22 |
| Ship height (cm) | 14.45 |
| Ship length (cm) | 24.59 |
| Ship width (cm) | 8.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Shaft Locking Type | Seal Type | Insert | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EMP-15 | Pillow Block, Two Bolt | 15/16" | 5 1/2" | 2" | 3 11/25" | Set Screw | Felt Labyrinth Seal | AR-2-015 | €459.52 | |
 |
EMP-16 | Pillow Block, Two Bolt | 1" | 5 1/2" | 2" | 3 11/25" | Set Screw | Felt Labyrinth Seal | AR-2-1 | €321.53 | |
|
EMP-16 CXU | Pillow Block, Two Bolt | 1" | 5 1/2" | 2" | 3 11/25" | Set Screw | Felt Labyrinth Seal | AR-2-1 | €344.04 | |
 |
EMP-16 HT | - | - | - | - | - | - | Standard Felt Seal | - | €1,000.97 | |
|
EMP-16C | Pillow Block, Two Bolt | 1" | 5 1/2" | 2" | 3 11/25" | Set Screw | Single Lip Contact Seal | AR-2-1C | €321.53 | |
 |
EMP-16T | Pillow Block, Two Bolt | 1" | 5 1/2" | 2" | 3 11/25" | Concentric | Felt Labyrinth Seal | AR-2-1T | €327.73 | |
 |
EMP-16T HI | - | - | - | - | - | - | Standard Felt Seal | - | €1,700.85 |
