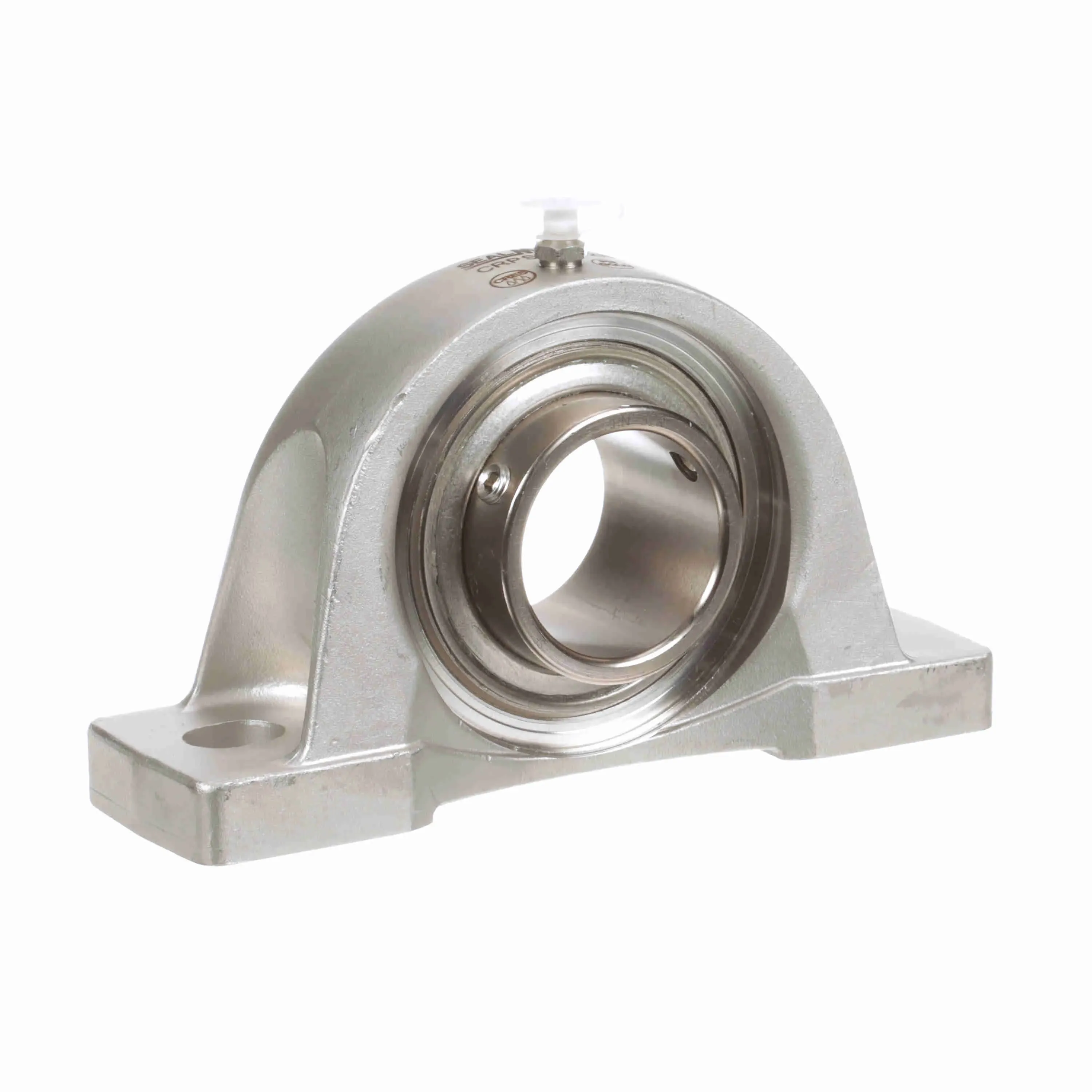

SEALMASTER CRPS-PN32R 711383 Pillow Block Ball Bearing Unit, 2-Bolt Base, 2 Inch Bore
Get it by Tuesday, Dec 23
€465.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 8.13" |
| Base To Center Height | 2 1/4" |
| Base Width | 2.38" |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 5/8" |
| Bolt Spacing Max | 6 1/2" |
| Bolt Spacing Min | 6" |
| Bore Dia. | 2" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.281" |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 3/4" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Base | Solid |
| Housing Color | Silver |
| Housing Construction | One Piece |
| Housing Material | Stainless Steel |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.469" |
| Insert | PN-32R |
| Ip Rating | IP69K |
| Length Through Bore | 2.031" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 1500 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Standard |
| Overall Height | 4 14/25" |
| Overall Length | 8.63" |
| Overall Width | 2.38" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-115 |
| Static Load Rating | 5216 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0984 cPS |
| Vibration Frequency Outer Ring Defect | 0.0683 cPS |
| Vibration Frequency Roller Spin | 0.0445 cPS |
Shipping Info:
| Ship weight (kg) | 3.72 |
| Ship height (cm) | 13.18 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 6.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Shaft Locking Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Insert | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CRPS-PN20RT | Concentric | 1 1/4" | 5 12/25" | 1 22/25" | 3.38" | Multi-Lip Contact Seal | PN-20RT | 2300 RPM | €294.72 | |
 |
CRPS-PN204 RMW | Set Screw | 20 mm | 5 12/25" | 1 1/2" | 2 14/25" | Multi-Lip Contact Seal | PN-204 | 3100 RPM | €212.02 | |
 |
CRPS-PN39T RMW | Concentric | 2 7/16" | 10 1/4" | 2 3/4" | 5 14/25" | Multi-Lip Contact Seal | PN-39T | 1250 RPM | €728.40 | |
|
CRPS-PN23 RMW | Set Screw | 1 7/16" | 5 1/2" | 1 22/25" | 3 3/4" | Multi-Lip Contact Seal | PN-23 | 2000 RPM | €323.61 | |
|
CRPS-PN24T RMW | Concentric | 1 1/2" | 7 1/4" | 2.13" | 3.94" | Multi-Lip Contact Seal | PN-24T | 1750 RPM | €381.17 | |
|
CRPS-PN27T RMW | Concentric | 1 11/16" | 7 1/2" | 2.13" | 4 1/4" | Multi-Lip Contact Seal | PN-27T | 1600 RPM | €482.47 | |
|
CRPS-PN31T | Concentric | 1 15/16" | 5 1/2" | 2.38" | 4 14/25" | Multi-Lip Contact Seal | PN-31T | 1500 RPM | €510.19 |
