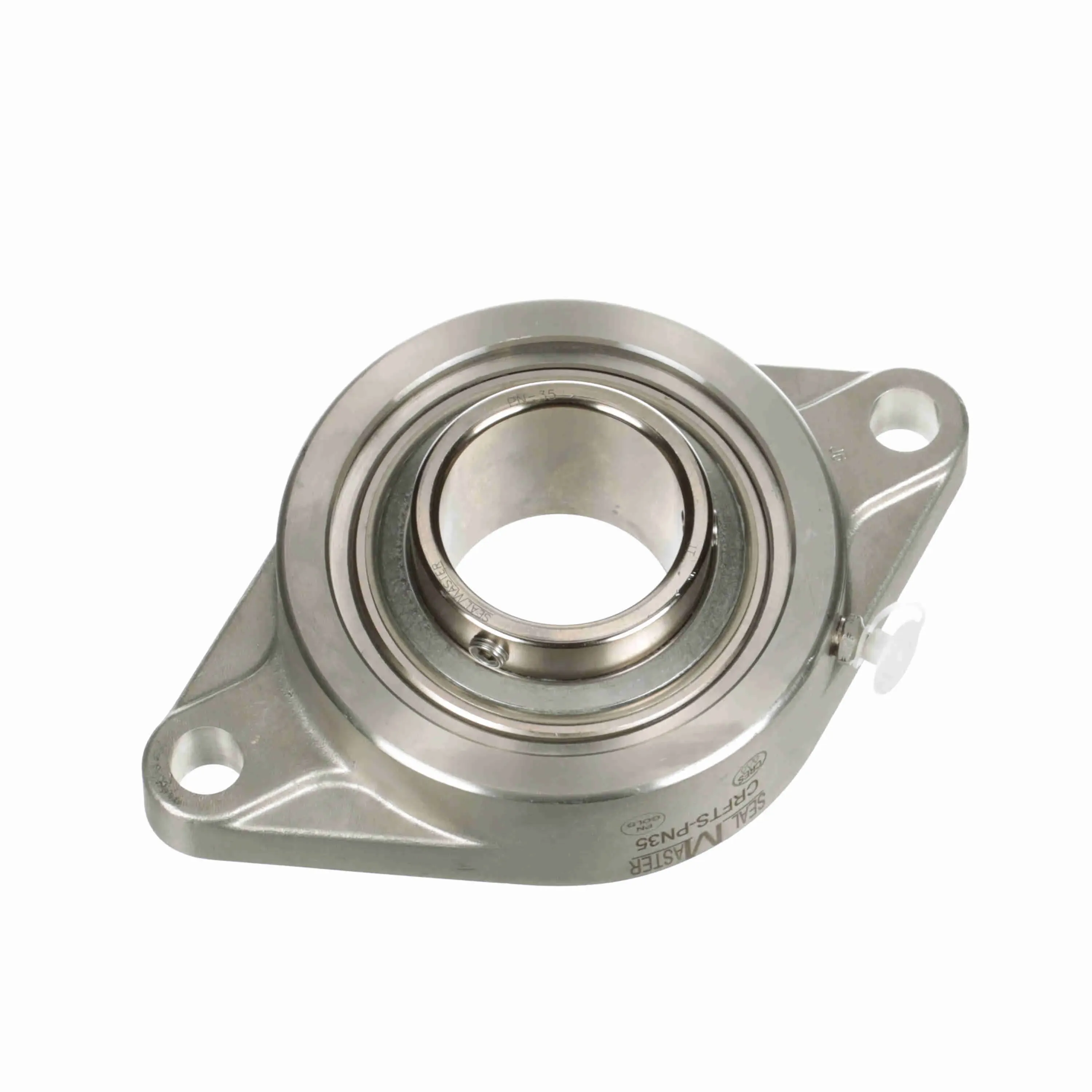

SEALMASTER CRFTS-PN35 711140 Flange-Mount Ball Bearing Unit, 2-3/16 Inch Bore
Get it by Tuesday, Dec 23
€639.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Backside Shield/seal | Optional Backside Shield Available Order Separate |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 5/8" |
| Bolt Spacing | 7 1/4" |
| Bore Dia. | 2 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 9752 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.81" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Color | Silver |
| Housing Construction | One Piece |
| Housing Material | Stainless Steel |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.719" |
| Insert | PN-35 |
| Ip Rating | IP69K |
| Length Through Bore | 2.188" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 1350 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.313" |
| Overall Length | 8 1/2" |
| Overall Width | 5 1/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-23 |
| Static Load Rating | 6601 lbs. |
Shipping Info:
| Ship weight (kg) | 3.78 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 21.44 |
| Ship width (cm) | 6.35 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Price | |
|---|---|---|---|---|---|
 |
CRFTS-PN20RT RMW | 1 1/4" | Stainless Steel | €294.72 | |
 |
CRFTS-PN206 | 30 mm | Stainless Steel | €268.80 | |
 |
CRFTS-PN16T RMW | 1" | Stainless Steel | €252.29 | |
 |
CRFTS-PN12T | 3/4" | Stainless Steel | €232.43 | |
|
CRFTS-PN22 | 1 3/8" | Stainless Steel | €347.05 | |
 |
CRFTS-PN10-12 | - | - | €375.63 | |
|
CRFTS-PN210T RMW | 50 mm | Stainless Steel | €545.95 |
