SEALMASTER CRFTS-PN210T RMW 700945 Flange Bearing, 2 Bolt, 50mm Dia, Skwezloc Locking, High Performance Seal
Get it by Tuesday, Sep 1
€545.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Bearing |
| Ability To Relubricate | No |
| Backside Shield/seal | Optional Backside Shield Available Order Separate |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 9/16" |
| Bolt Spacing | 6 3/16" |
| Bore Dia. | 50 mm |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Color | Silver |
| Housing Construction | One Piece |
| Housing Material | Stainless Steel |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | PN-210T |
| Inside Ring Outside Dia. | 2.469" |
| Ip Rating | IP69K |
| Length Through Bore | 2.09" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 1500 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant Reduced Maintenance Lubed For Life |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 2.157" |
| Overall Length | 7 11/25" |
| Overall Width | 4 14/25" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-115 |
| Static Load Rating | 5216 lbs. |
Shipping Info:
| Ship weight (kg) | 3.02 |
| Ship height (cm) | 5.87 |
| Ship length (cm) | 11.76 |
| Ship width (cm) | 19.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Housing Type | Rolling Element | Bolt Size | Overall Height | Foot Height | Overall Width | Dynamic Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRFTS-PN20RT RMW | 1 1/4" | Flange, Two Bolt | Ball Bearing | 7/16" | 1.563" | 0.53" | 3 1/4" | 4381 lbs. | €294.72 | |
 |
CRFTS-PN206 | 30 mm | Flange, Two Bolt | Ball Bearing | 7/16" | 1.563" | 0.53" | 3 1/4" | 4381 lbs. | €268.80 | |
 |
CRFTS-PN16T RMW | 1" | Flange, Two Bolt | Ball Bearing | 7/16" | 1.498" | 0.53" | 2 3/4" | 2801 lbs. | €252.29 | |
 |
CRFTS-PN12T | 3/4" | Flange, Two Bolt | Ball Bearing | 3/8" | 1.39" | 11/25" | 2 1/2" | 2611 lbs. | €232.43 | |
|
CRFTS-PN22 | 1 3/8" | Flange, Two Bolt | Ball Bearing | 1/2" | 1 3/4" | 14/25" | 3 3/4" | 5782 lbs. | €347.05 | |
 |
CRFTS-PN10-12 | - | - | - | - | - | - | - | - | €375.63 | |
 |

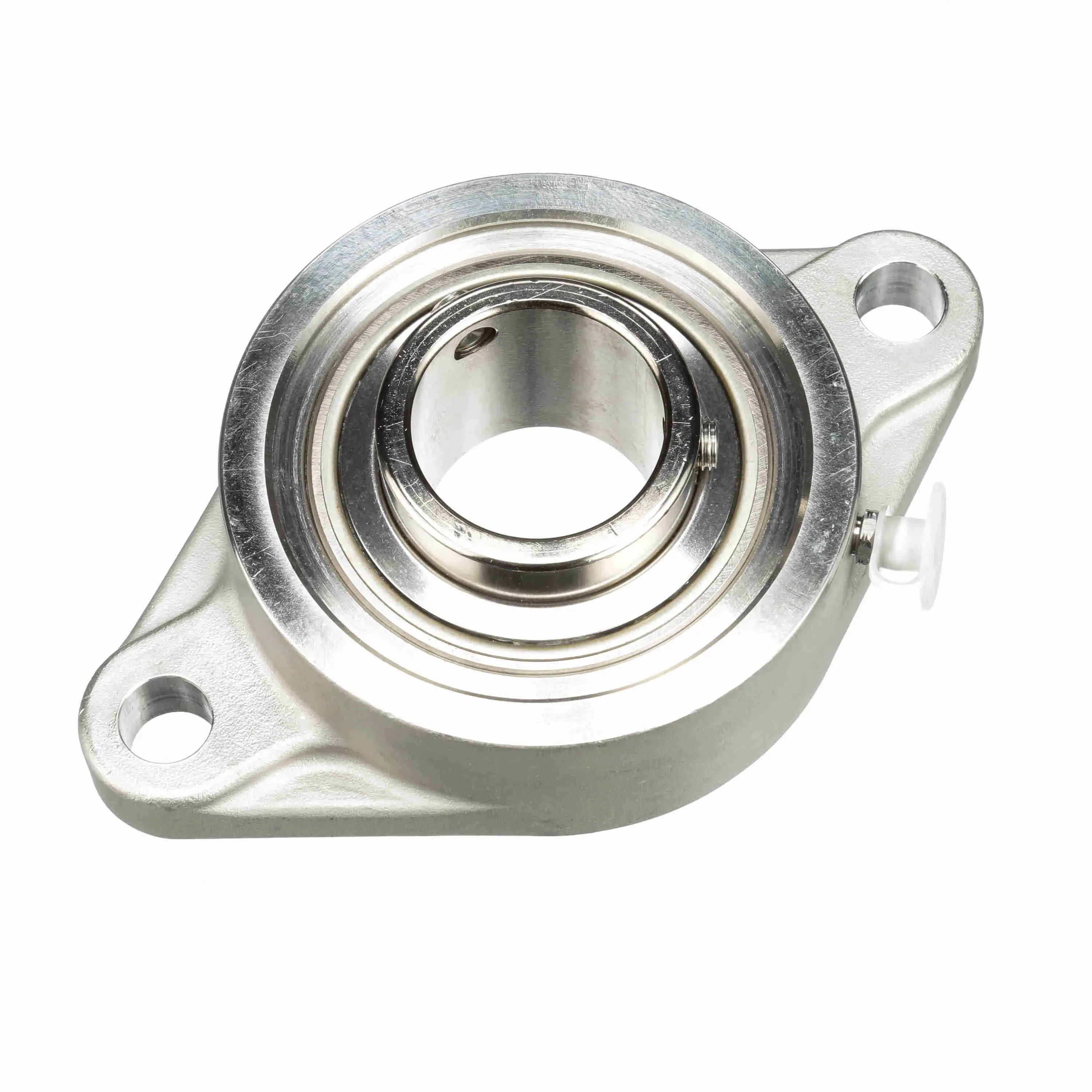

CRFTS-PN23 | 1 7/16" | Flange, Two Bolt | Ball Bearing | 1/2" | 1 3/4" | 14/25" | 3 3/4" | 5782 lbs. | €323.61 |
