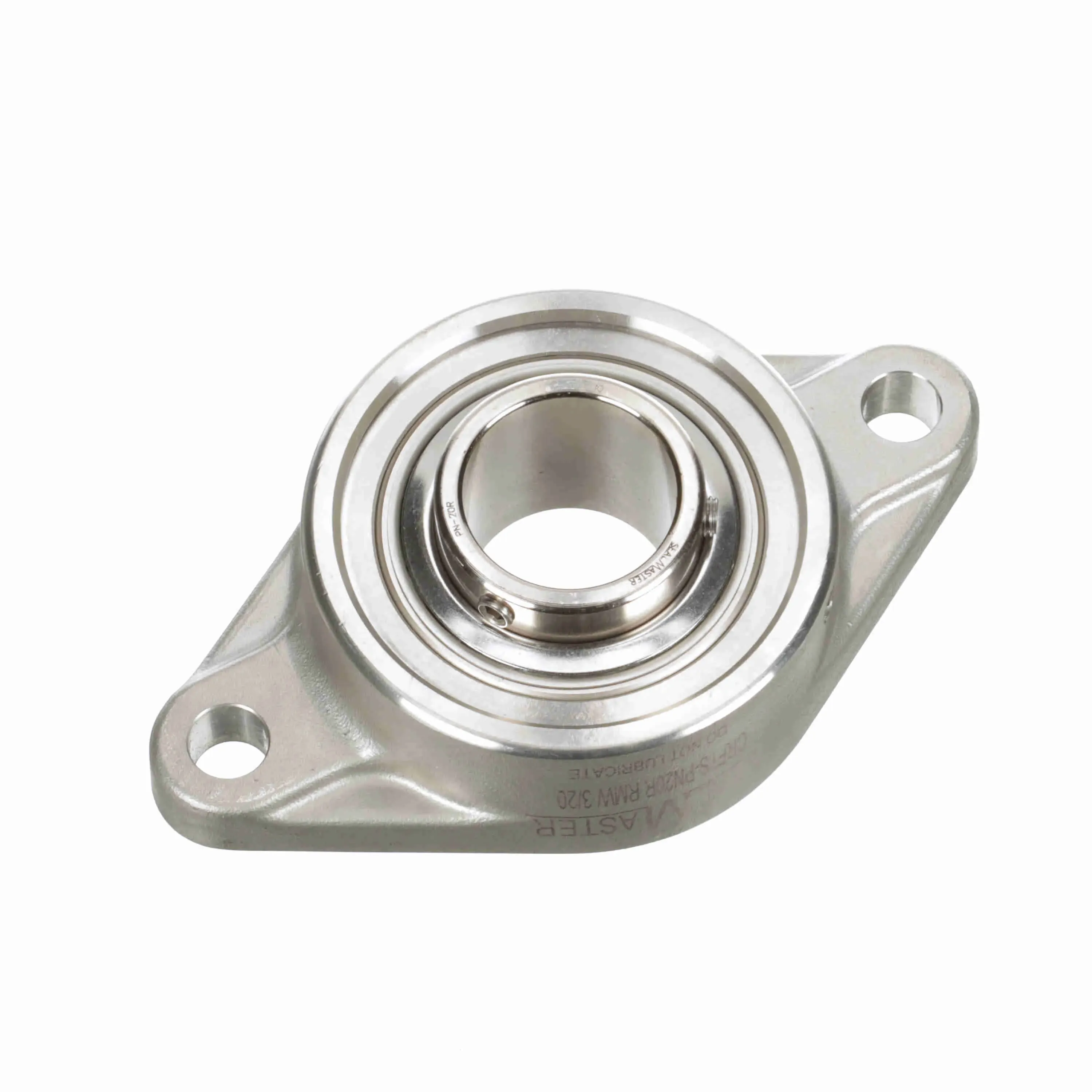

SEALMASTER CRFTS-PN20R RMW 708316 Flange Bearing, 2 Bolt, 1.25 Inch Dia, Setscrew Locking, High Performance Seal
Get it by Tuesday, Dec 23
€268.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Bearing |
| Ability To Relubricate | No |
| Backside Shield/seal | Optional Backside Shield Available Order Separate |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 7/16" |
| Bolt Spacing | 4.596" |
| Bore Dia. | 1 1/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.53" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Color | Silver |
| Housing Construction | One Piece |
| Housing Material | Stainless Steel |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.587" |
| Insert | PN-20R |
| Ip Rating | IP69K |
| Length Through Bore | 1 1/2" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2300 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant Reduced Maintenance Lubed For Life |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 1.563" |
| Overall Height To End Cap | 2 12/25" |
| Overall Length | 5 14/25" |
| Overall Width | 3 1/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Setscrew Torque | 35 lbs.-in. to 45 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 14.61 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Price | |
|---|---|---|---|---|---|
 |
CRFTS-PN20RT RMW | 1 1/4" | Stainless Steel | €294.72 | |
 |
CRFTS-PN206 | 30 mm | Stainless Steel | €268.80 | |
 |
CRFTS-PN16T RMW | 1" | Stainless Steel | €252.29 | |
 |
CRFTS-PN12T | 3/4" | Stainless Steel | €232.43 | |
|
CRFTS-PN22 | 1 3/8" | Stainless Steel | €347.05 | |
 |
CRFTS-PN10-12 | - | - | €375.63 | |
|
CRFTS-PN210T RMW | 50 mm | Stainless Steel | €545.95 |
