SEALMASTER CRFC-PN19T 711422 Flange-Mount Ball Bearing Unit, 1-3/16 Inch Bore
Get it by Tuesday, Sep 1
€215.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Backside Shield/seal | Optional Backside Shield Available Order Separate |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 7/16" |
| Bolt Spacing | 3 1/4" |
| Bore Dia. | 1 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.53" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Backside Inside Dia. | 2.56" |
| Housing Color | Light Gray |
| Housing Construction | One Piece |
| Housing Material | Composite |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | PN-19T |
| Inside Ring Outside Dia. | 1.594" |
| Ip Rating | IP69K |
| Length Through Bore | 1 14/25" |
| Locking Collar Outside Dia. | 2.19" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temp. | 150°F |
| Max. Speed | 2300 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Operating Temp. | 0°F to 150°F |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 1 3/5" |
| Overall Height To End Cap | 2.47" |
| Overall Length | 4.34" |
| Overall Width | 4.34" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Setscrew Torque | 70 lbs.-in. |
| Shaft Locking Type | Concentric |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
Shipping Info:
| Ship weight (kg) | 0.69 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 11.58 |
| Country of Origin | US |
Product Variants
| Product | Model | Seal Type | Bore Dia. | Housing Type | Max. Operating Temp. | Rolling Element | Overall Height | Bolt Size | Foot Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

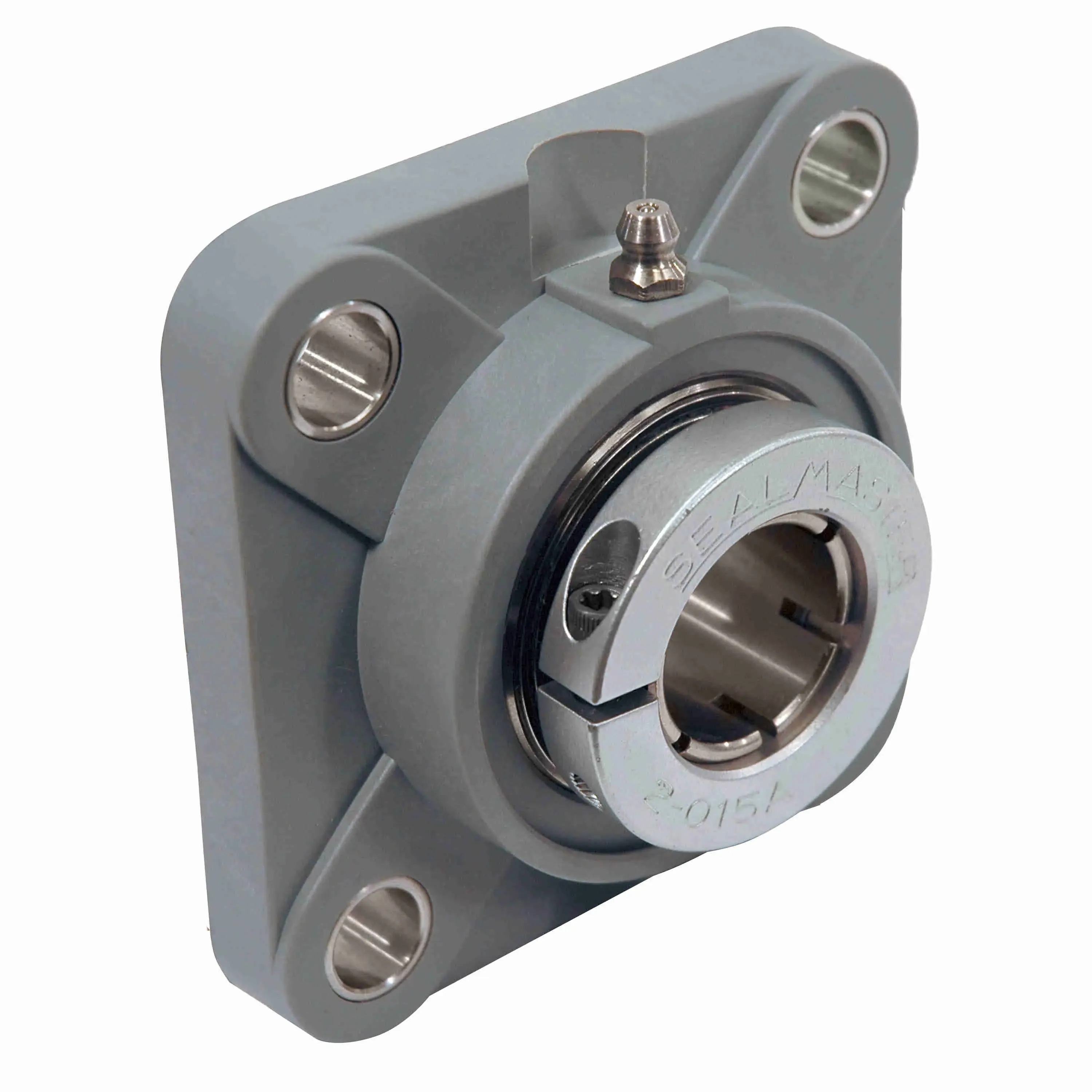

CRFC-PN23T | Multi-Lip Contact Seal | 1 7/16" | Flange, Four Bolt | 220°F | Ball Bearing | 1.81" | 1/2" | 14/25" | €255.26 | |
 |
CRFC-PN20 RMW | High Performance Seal | - | Four Bolt Flange | 200°F | Ball | - | - | - | €659.85 | |
 |

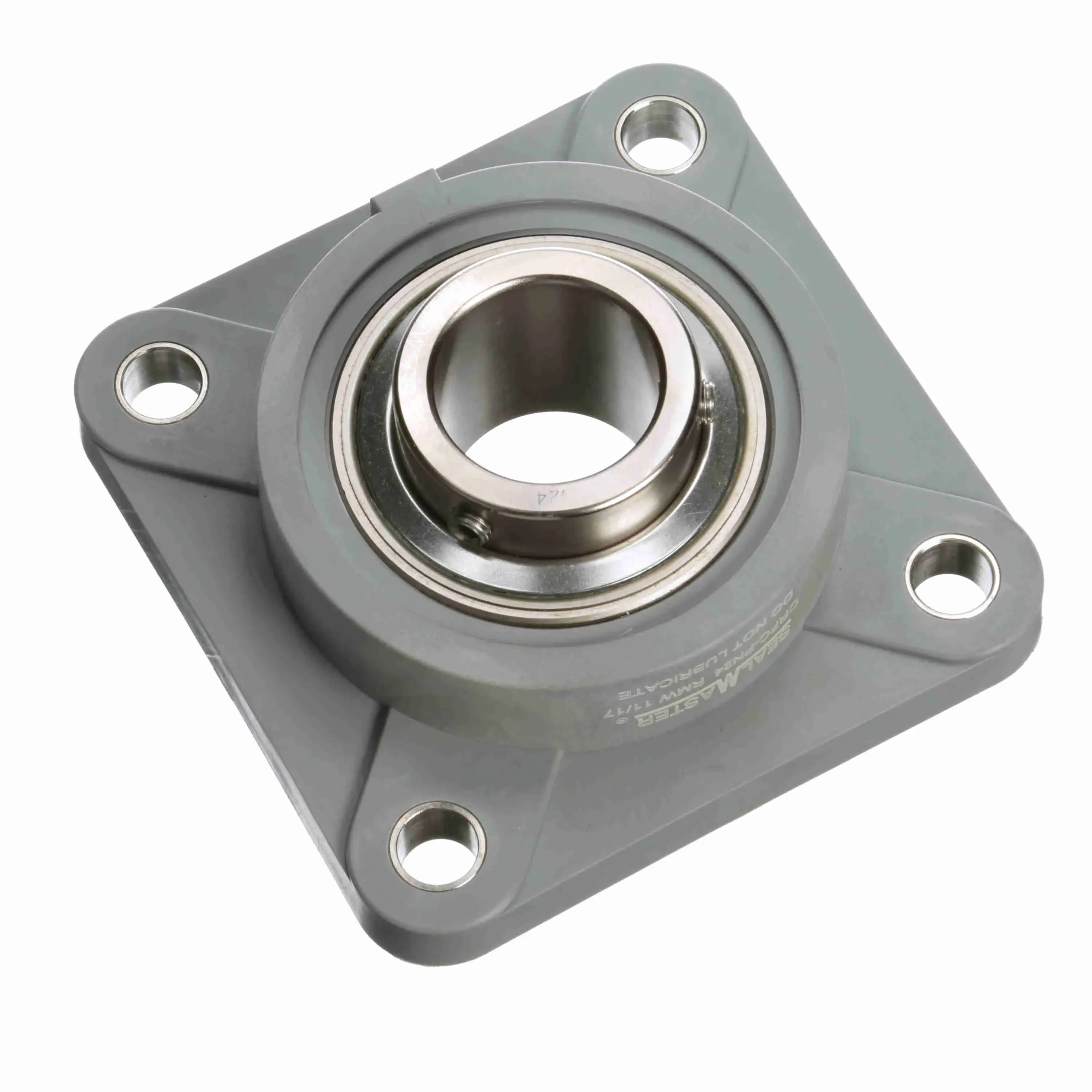

CRFC-PN16 RMW | Multi-Lip Contact Seal | 1" | Flange, Four Bolt | 150°F | Ball Bearing | 1.438" | 7/16" | 0.53" | €162.99 | |
|
CRFC-PN206 RMW | - | - | - | - | - | - | - | - | €227.23 | |
 |

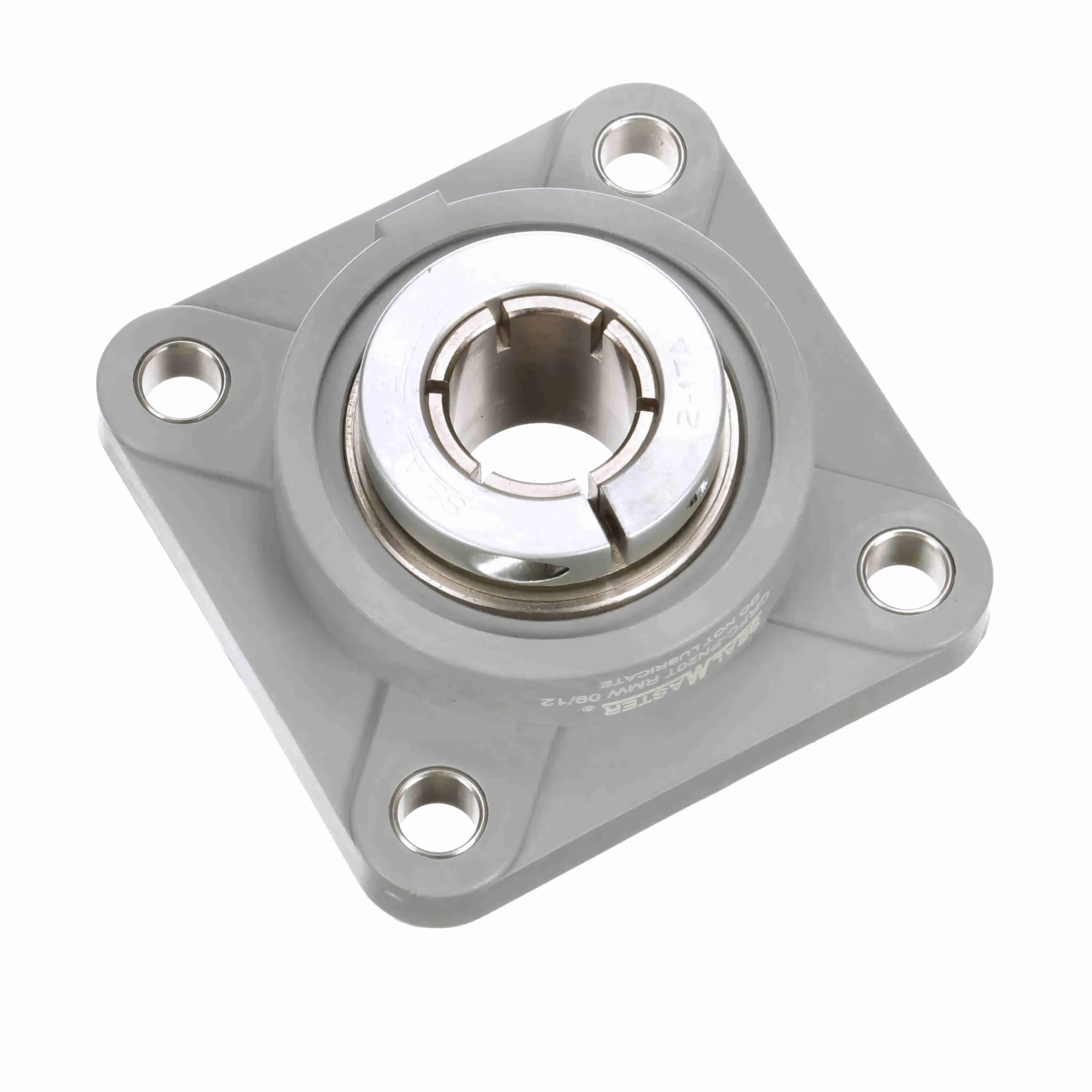

CRFC-PN20T RMW | Multi-Lip Contact Seal | 1 1/4" | Flange, Four Bolt | 220°F | Ball Bearing | 1.81" | 1/2" | 14/25" | €251.00 | |
|
CRFC-PN23T RMW | Multi-Lip Contact Seal | 1 7/16" | Flange, Four Bolt | 220°F | Ball Bearing | 1.81" | 1/2" | 14/25" | €255.26 | |
 |
CRFC-PN24 | Multi-Lip Contact Seal | 1 1/2" | Flange, Four Bolt | 220°F | Ball Bearing | 2.016" | 1/2" | 14/25" | €245.72 |
