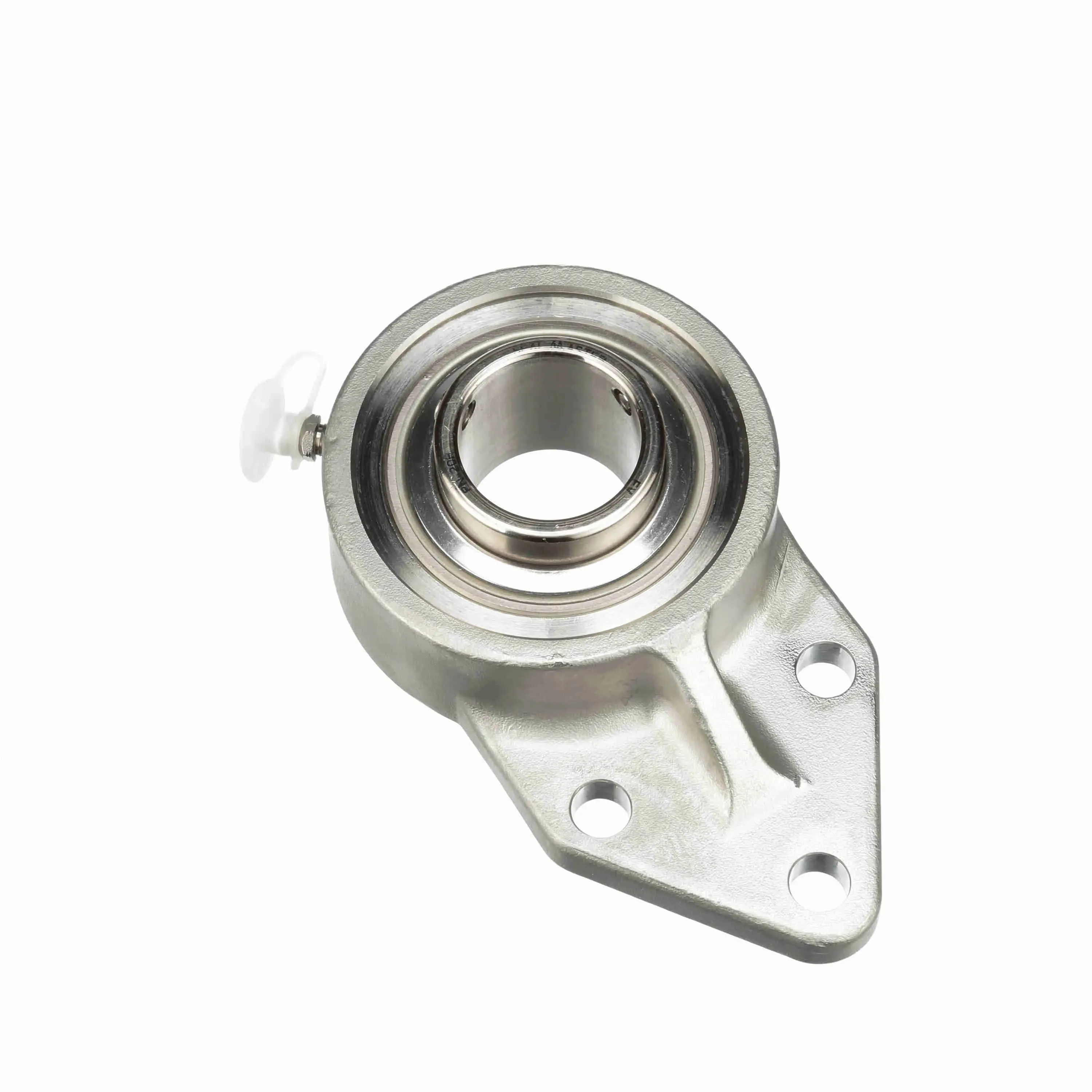

SEALMASTER CRFBS-PN20R 711227 Flange-Mount Ball Bearing Unit, 1-1/4 Inch Bore
Get it by Tuesday, Dec 23
€295.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base To Center Height | 3 3/4" |
| Bearing Centerline To Bolt Hole Center | 2 1/16" |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 3/8" |
| Bolt Spacing | 1 7/8" |
| Bolt Spacing Height Direction | 1 1/4" |
| Bore Dia. | 1 1/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.38" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Color | Silver |
| Housing Construction | One Piece |
| Housing Material | Stainless Steel |
| Housing Style | Flange Block |
| Housing Type | Flange, Bracket, Three Bolt |
| Housing Width | 3 1/4" |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.594" |
| Insert | PN-20R |
| Ip Rating | IP69K |
| Length Through Bore | 1 1/2" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2300 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.63" |
| Overall Height To End Cap | 2.53" |
| Overall Length | 5.38" |
| Overall Width | 3 1/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-13 |
| Static Load Rating | 2567 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 4.29 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 14.61 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Price | |
|---|---|---|---|---|---|
 |
CRFBS-PN205 | 25 mm | Stainless Steel | €257.60 | |
 |
CRFBS-PN20R RMW | 1 1/4" | Stainless Steel | €295.69 | |
 |
CRFBS-PN20T | 1 1/4" | Stainless Steel | €390.59 | |
|
CRFBS-PN23 RMW | 1 7/16" | Stainless Steel | €355.96 | |
 |
CRFBS-PN206T | 30 mm | Stainless Steel | €319.28 | |
|
CRFBS-PN19T | 1 3/16" | Stainless Steel | €324.19 | |
|
CRFBS-PN12 RMW | 3/4" | Stainless Steel | €233.20 |
