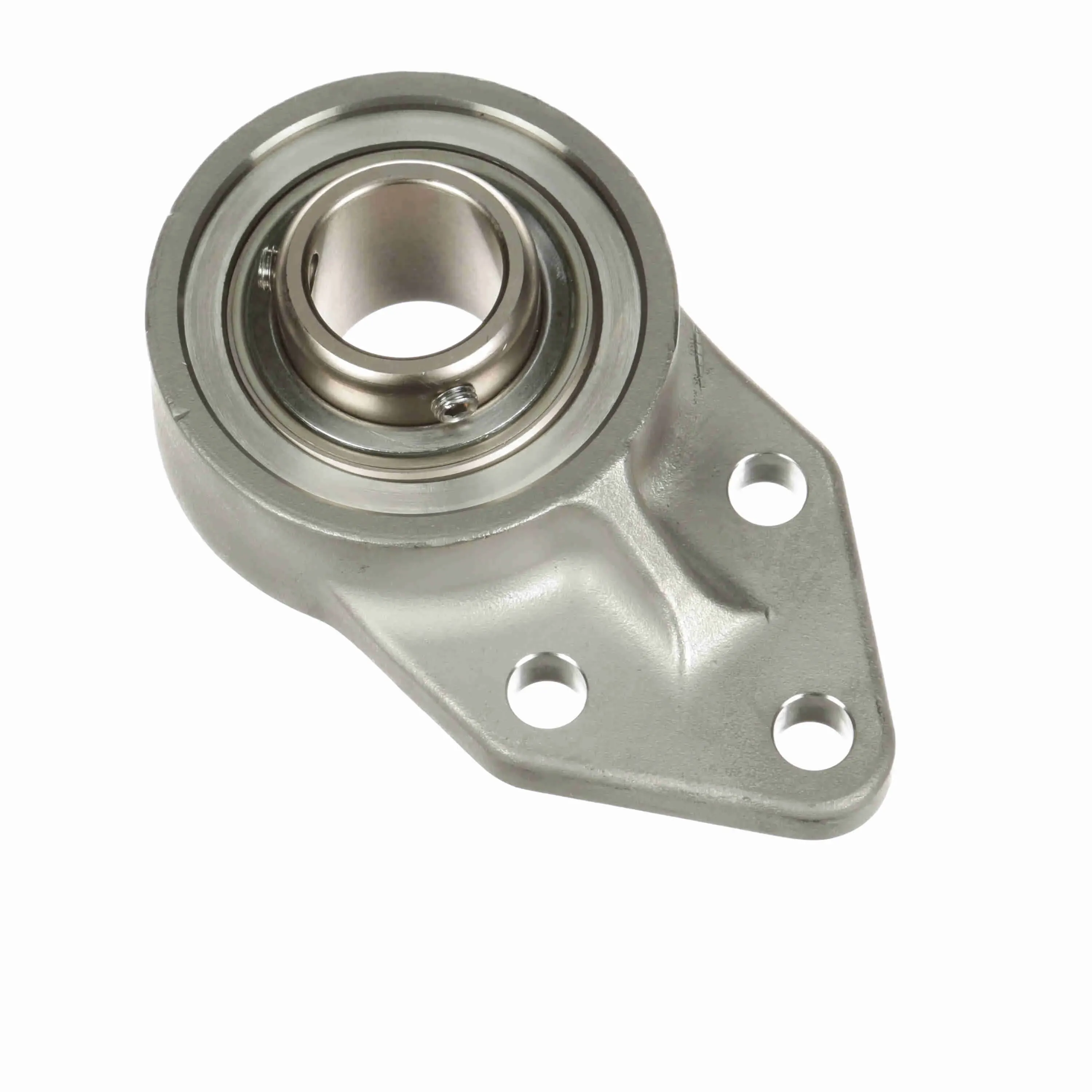

SEALMASTER CRFBS-PN23 RMW 711379 Flange Block Bearing, 3 Bolt Flange Bracket, 1.43 Inch Bore, 1-1/4 Inch Bolt Spacing
Get it by Tuesday, Sep 1
€355.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Block Bearing |
| Ability To Relubricate | No |
| Base To Center Height | 4 1/4" |
| Bearing Centerline To Bolt Hole Center | 2 3/8" |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 2" |
| Bolt Spacing Height Direction | 1 1/4" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1/2" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Color | Silver |
| Housing Construction | One Piece |
| Housing Material | Stainless Steel |
| Housing Style | Flange Block |
| Housing Type | Flange, Bracket, Three Bolt |
| Housing Width | 3 3/4" |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | PN-23 |
| Inside Ring Outside Dia. | 1.862" |
| Ip Rating | IP69K |
| Length Through Bore | 1.685" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temp. | 220°F |
| Max. Speed | 2000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant Reduced Maintenance Lubed For Life |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 1 22/25" |
| Overall Height To End Cap | 2.78" |
| Overall Length | 6.13" |
| Overall Width | 3 3/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0386 cPS |
Shipping Info:
| Ship weight (kg) | 1.4 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 11.13 |
| Ship width (cm) | 17.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Width | Housing Width | Bolt Size | Overall Height | Foot Height | Length Through Bore | Dynamic Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CRFBS-PN205 | 25 mm | 2.81" | 2.81" | 3/8" | 1 1/2" | 0.38" | 1 3/8" | 2801 lbs. | €257.60 | |
|
CRFBS-PN20R RMW | 1 1/4" | 3 1/4" | 3 1/4" | 3/8" | 1.63" | 0.38" | 1 1/2" | 4381 lbs. | €295.69 | |
 |
CRFBS-PN20T | 1 1/4" | 3 3/4" | 3 3/4" | 1/2" | 1.94" | 1/2" | 1.81" | 5782 lbs. | €390.59 | |
 |
CRFBS-PN206T | 30 mm | 3 1/4" | 3 1/4" | 3/8" | 1.74" | 0.38" | 1.61" | 4381 lbs. | €319.28 | |
|
CRFBS-PN19T | 1 3/16" | 3 1/4" | 3 1/4" | 3/8" | 1.74" | 0.38" | 1.61" | 4381 lbs. | €324.19 | |
|
CRFBS-PN12 RMW | 3/4" | 2.69" | 2.38" | 3/8" | 1.34" | 0.31" | 1.219" | 2611 lbs. | €233.20 | |
|
CRFBS-PN19 | 1 3/16" | 3 1/4" | 3 1/4" | 3/8" | 1.63" | 0.38" | 1 1/2" | 4381 lbs. | €295.69 |
