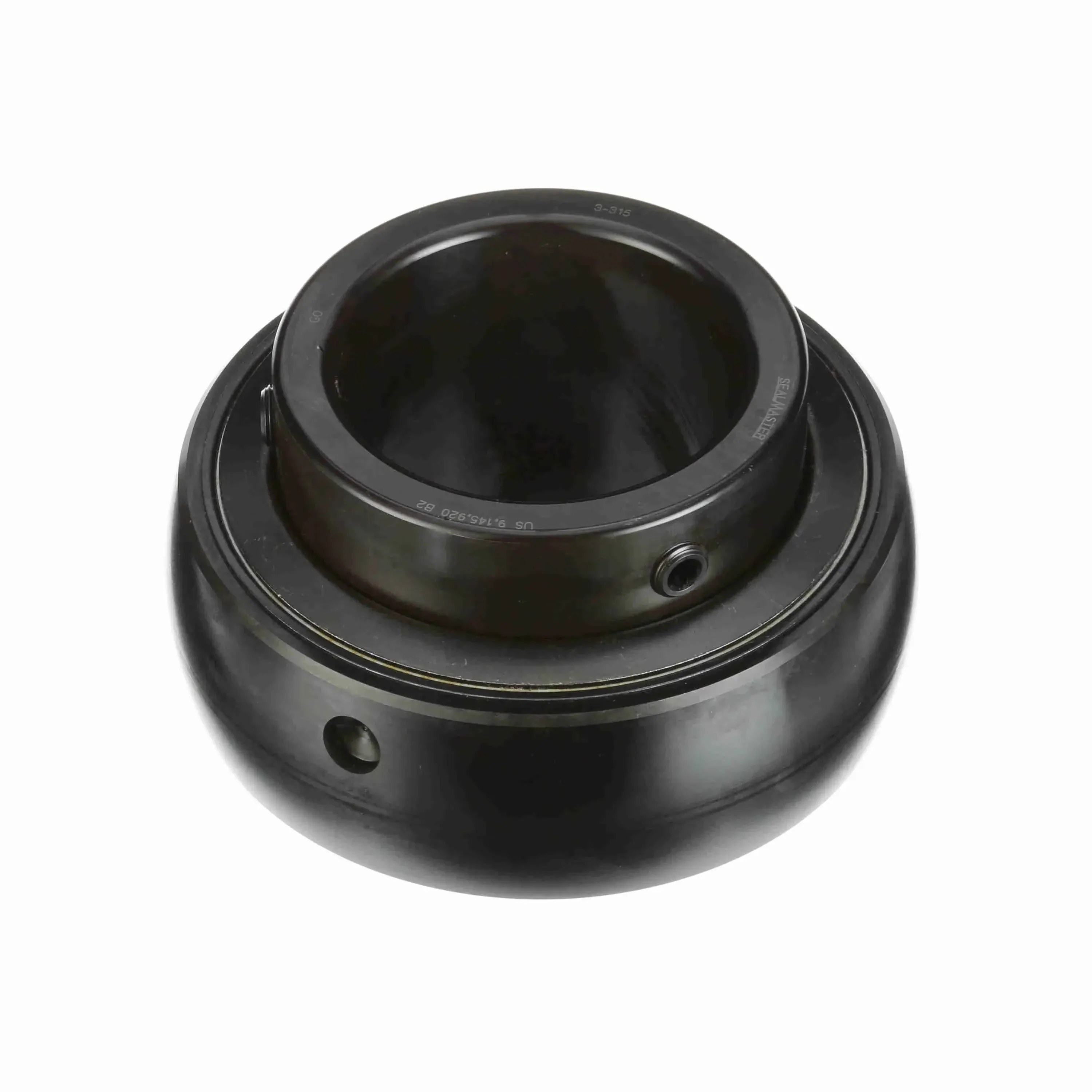

SEALMASTER 3-315 700100 Insert Bearing, 3 15/16 Inch Bore, 7 15/32 Inch OD, 2.5 Inch Outer Ring Wide
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€2,436.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Abec Rating | 1 |
| Ability To Relubricate | Yes |
| Ball Material | Alloy Steel |
| Ball Material Grade | 52100 |
| Bearing Industry Number | 3-315 |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Shape | Spherical |
| Bearing Insert Type | Radial/Deep Groove Ball |
| Bore Dia. | 3 15/16" |
| Bore Diameter | 3 15/16" |
| Bore Diameter Tolerance | -0.001" to 0" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Centerline To Front Face | 2.688" |
| Closure | Double Sealed |
| Duty Series | Medium |
| Duty/series | Medium Series |
| Dynamic Radial Load Capacity | 29905 lbf. |
| End Cap | No |
| Features | 120° Spacing Setscrew Lock With Diamond Faceted Setscrews, 360° Grease Circulation Around The Rolling Elements, Better Retained And Utilized Lubrication, Unique Land Riding Retainer Design Provides Superior Pocket Clearance, Use In Sealmaster Machined Housings Only |
| Finish | Black Oxide |
| Fixed Vs. Expansion | No |
| For Environment | Highly Dusty And Dirty |
| Grade | Grade 52100 |
| Height | 4.69" |
| Housing Type | Insert Only |
| Htc | 8482.10.5056 |
| I.d. | 3 15/16" |
| Includes | Set Screws |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 4 5/8" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Dia. | 5.172" |
| Inner Ring Outside Diameter | 5.172" |
| Inner Ring Width | 4.63" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Length | 7.88" |
| Load Direction | Radial |
| Locking Device | Single Set Screw |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | Grease Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 1700 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Outer Race Od | 7 12/25" |
| Outer Race Outside Dia. | 7.48" |
| Outer Race Profile | Spherical |
| Outer Race Width | 2 1/2" |
| Outer Ring Land Profile | Standard |
| Outer Ring Width | 2.5" |
| Outside Diameter | 7 15/32" |
| Overall Width | 4 5/8" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 23553 lbf. |
| Radius | 3/25" |
| Retainer Type | Land Riding Retainer |
| Ring End To Center Width | 2.688" |
| Ring Material | Alloy Steel |
| Ring Material Grade | Grade 52100 |
| Rolling Element Material | Alloy Steel |
| Rolling Element Material Grade | Grade 52100 |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Set Screw Thread Size | 5/8"-18 |
| Shaft Locking Type | Set Screws |
| Shaft Size | 3.938" |
| Standards | Iso Certified 100-220 |
| Static Radial Load Capacity | 23553 lbf. |
| Type Of Seal | Felt Labyrinth Seal |
| Width | 7 3/4" |
Shipping Info:
| Ship weight (kg) | 9.5 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 20.02 |
| Ship width (cm) | 11.91 |
| Country of Origin | US |
