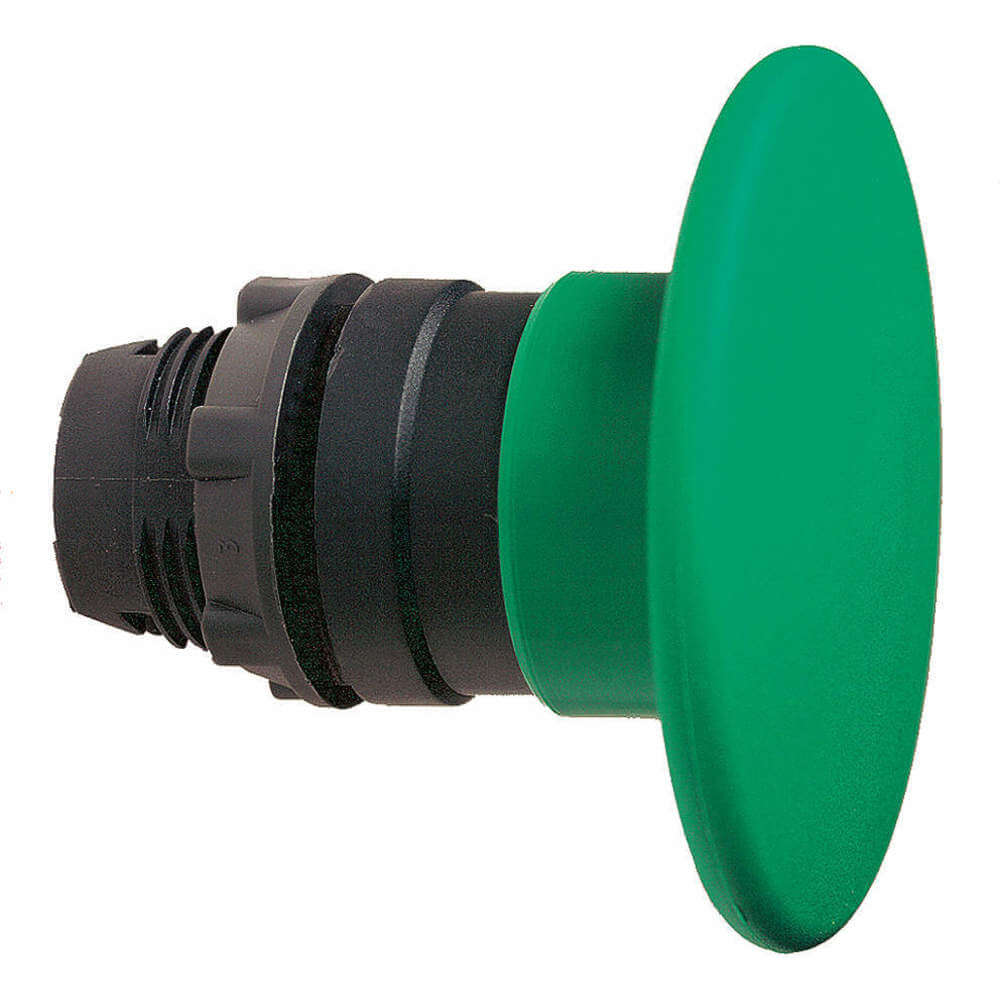

SCHNEIDER ELECTRIC ZB5AR3 Non-illuminated Push Button Operator Green
Item: AF7HCEModel: ZB5AR3Cross Ref: 21AG85
7 In Stock
Ships within 2 days via
13.00% off
€40.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button Operator |
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Plastic |
| Bezel Material | Double-Insulated Plastic |
| Bezel Material | Plastic |
| Cad Overall Depth | 52 mm |
| Cad Overall Height | 60 mm |
| Cad Overall Width | 60 mm |
| Color | Green |
| Device Presentation | Basic Element |
| Dia. | 60 mm |
| Features | Snap Fit Assembly, Visually Distinct At A Distance, Withstands Harsh Environments |
| Head Material | Plastic |
| Head/lens Color | Green |
| Ip Rating | IP66 |
| Legend | No Legend |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -40°F |
| Mounting Dia. | 22 mm |
| Mushroom Head Dia. | 60 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Overall Depth | 2.05" |
| Overall Height | 2 9/25" |
| Overall Width | 2 9/25" |
| Panel Mounting Hole Dia. | 22 mm |
| Product Datasheet | schneider-electric-zb5ar3.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB5 Series |
| Shape Of Signaling Unit Head | Round |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 7.11 |
| Ship width (cm) | 4.57 |
| HS code | 8538908060 |
Documentation:
Product Variants
| Product | Model | Head/lens Color | Color | Legend | Push Button Style | Nema Enclosure Rating | Ip Rating | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB5APA1 | White | White | No Legend | Flush | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP66 | 1.18" | 1.18" | €34.63 | |
|
ZB5APA2 | Black | Black | No Legend | Flush | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP66 | 1.18" | 1.18" | €34.63 | |
 |
ZB5APA3 | Green | Green | No Legend | Flush | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP66 | 1.18" | 1.18" | €34.63 | |
 |
ZB5APA4 | Red | Red | No Legend | Flush | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP66 | 1.18" | 1.18" | €34.63 | |
 |
ZB5APA6 | - | Blue | No Legend | Flush | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 | IP66 | - | - | - | RFQ
|
 |
ZB5AA232 | Black | Black | O | Flush | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP66 | 1.14" | 1.14" | €26.08 | |
 |
ZB5AA341 | Green | Green | On | Flush | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP66 | 1.14" | 1.14" | €26.24 |
