SCHNEIDER ELECTRIC ZB5AA232 Non-illuminated Push Button Operator Black
Item: AF7HBUModel: ZB5AA232Cross Ref: 21AG75
7 In Stock
Ships within 2 days via
10.00% off
€30.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button Operator |
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Plastic |
| Bezel Material | Double-Insulated Plastic |
| Bezel Material | Plastic |
| Cad Overall Depth | 28 mm |
| Cad Overall Height | 29 mm |
| Cad Overall Width | 29 mm |
| Color | Black |
| Device Presentation | Basic Element |
| Features | Double Head, Snap Fit Assembly, Visually Distinct At A Distance |
| Head Material | Plastic |
| Head/lens Color | Black |
| Ip Rating | IP66 |
| Legend | O |
| Legend Background Color | Black |
| Legend Color | White |
| Legend/background Color | Black, White |
| Manufacturer Warranty Length | 18 Months |
| Mounting Diameter | 22 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Overall Depth | 1.1" |
| Overall Height | 1.14" |
| Overall Width | 1.14" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB5 Series |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | Full Guard |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 7.11 |
| Ship width (cm) | 4.57 |
| HS code | 8538908060 |
| Country of Origin | FR |
Product Variants
| Product | Model | Type Of Operator | Color | Legend | Ip Rating | Legend/background Color | Diameter | Basic Material | Head Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB5APA1 | Booted | White | No Legend | IP66 | - | - | Plastic | Plastic | €47.29 | |
|
ZB5APA2 | Booted | Black | No Legend | IP66 | - | - | Plastic | - | €47.29 | |
 |
ZB5APA3 | Booted | Green | No Legend | IP66 | - | - | Plastic | Plastic | €47.29 | |
 |
ZB5APA4 | Booted | Red | No Legend | IP66 | - | - | Plastic | Plastic | €47.29 | |
 |
ZB5APA6 | Booted | Blue | No Legend | IP66 | - | - | Plastic | Plastic | €48.42 | |
 |
ZB5AA341 | Full Guard | Green | On | IP66 | Green, White | - | Plastic | Plastic | €33.79 | |
 |

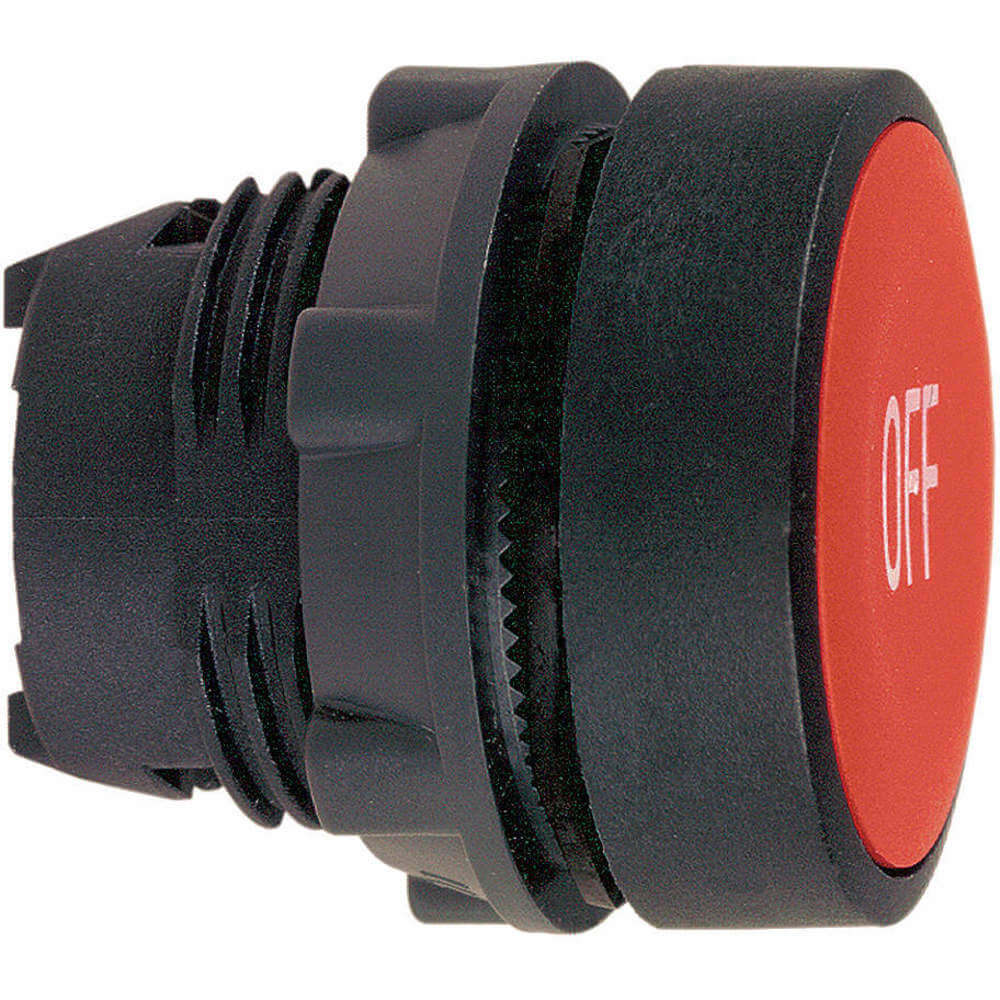

ZB5AA435 | Full Guard | Red | Off | IP66 | Red, White | - | Plastic | Plastic | €40.50 |
