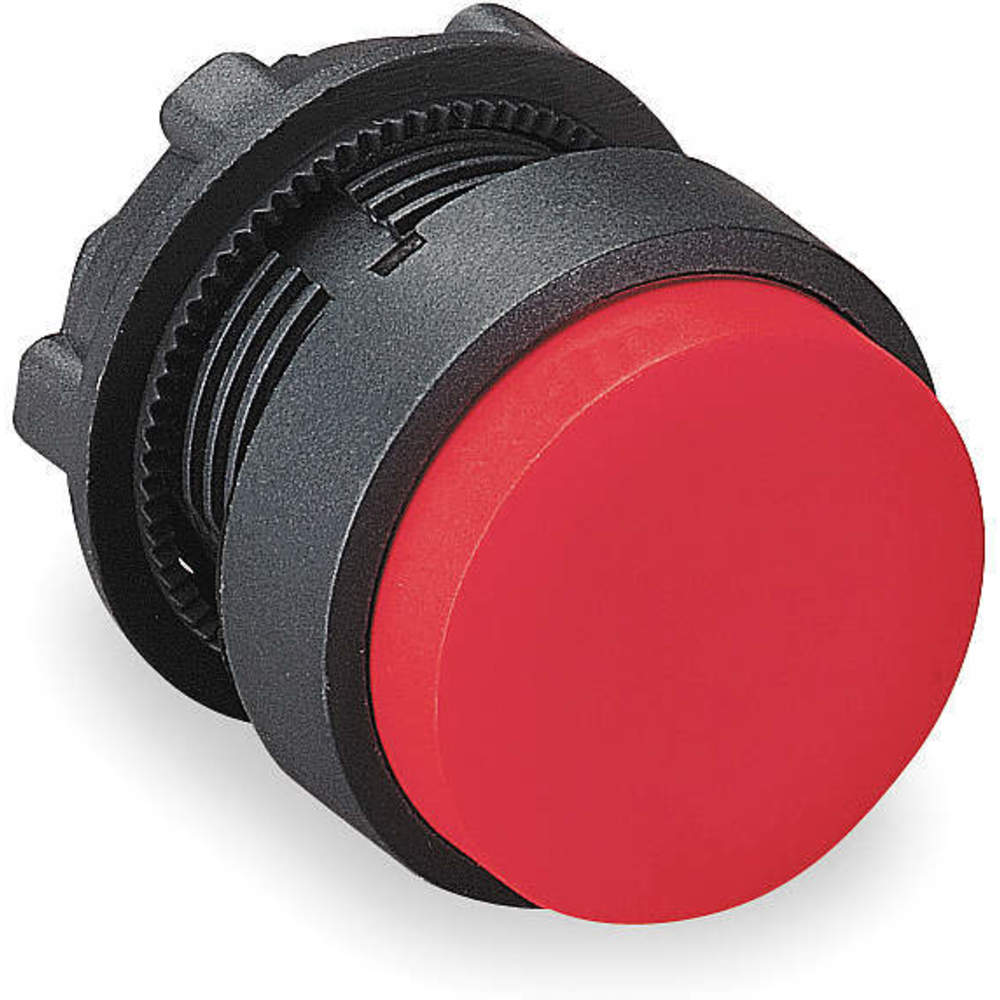

SCHNEIDER ELECTRIC ZB5AL4 Non-illuminated Push Button Operator 22mm Red
Item: AG7FGAModel: ZB5AL4Cross Ref: 6HV60
7 In Stock
Ships within 2 days via
13.00% off
€16.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button Operator |
| Accessory Group | A |
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Plastic |
| Bezel Material | Plastic |
| Bezel Material | Double-Insulated Plastic |
| Cad Overall Depth | 33 mm |
| Cad Overall Height | 29 mm |
| Cad Overall Width | 29 mm |
| Color | Red |
| Device Presentation | Basic Element |
| Features | Double Head, Snap Fit Assembly |
| Head Material | Plastic |
| Head/lens Color | Red |
| Ip Rating | IP66 |
| Legend | No Legend |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -40°F |
| Mounting Dia. | 22 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Overall Depth | 1.3" |
| Overall Height | 1.14" |
| Overall Width | 1.14" |
| Panel Mounting Hole Dia. | 22 mm |
| Product Datasheet | schneider-electric-zb5al4.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB5 Series |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | No Guard |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| HS code | 3926909980 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Overall Height | Overall Width | Overall Depth | Color | Cad Overall Width | Cad Overall Height | Cad Overall Depth | Push Button Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB5AA344 | 1.14" | 1.14" | 1.1" | Green | 29 mm | 29 mm | 28 mm | Flush | €34.18 | |
 |
ZB5AA343 | 1.14" | 1.14" | 1.1" | Green | 29 mm | 29 mm | 28 mm | Flush | €35.10 | |
 |
ZB5AA1 | 1.14" | 1.14" | 1.1" | White | 29 mm | 29 mm | 28 mm | Flush | €19.28 | |
 |
ZB5AA18 | 1.14" | 1.14" | 1.18" | White | 29 mm | 29 mm | 30 mm | Flush | €23.28 | |
 |
ZB5AA2 | 1.14" | 1.14" | 1.1" | Black | 29 mm | 29 mm | 28 mm | Flush | €19.28 | |
 |
ZB5AA3 | 1.14" | 1.14" | 1.1" | Green | 29 mm | 29 mm | 28 mm | Flush | €19.28 | |
 |
ZB5AA4 | 1.14" | 1.14" | 1.1" | Red | 29 mm | 29 mm | 28 mm | Flush | €19.28 |
