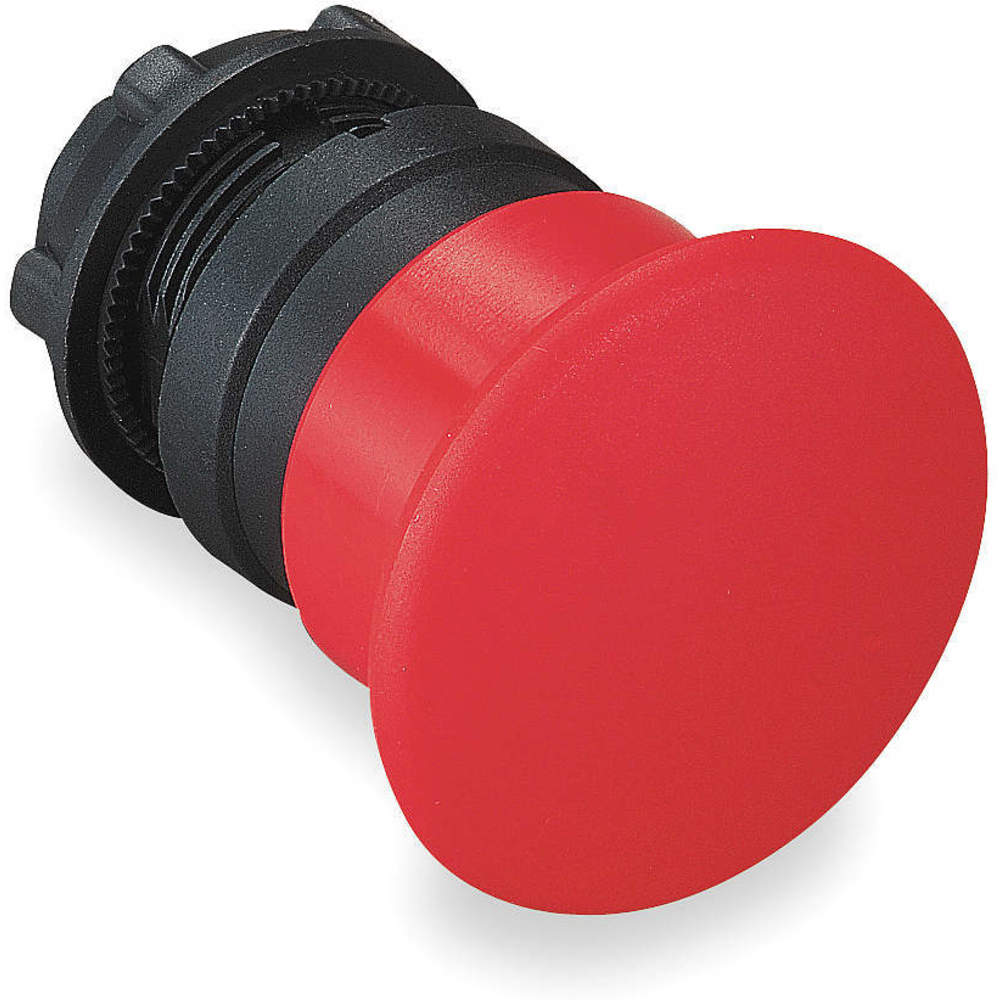

SCHNEIDER ELECTRIC ZB5AC44 Non-illuminated Push Button Operator 22mm Red
Item: AG7FDKModel: ZB5AC44Cross Ref: 6HT50
7 In Stock
Ships within 2 days via
10.00% off
€52.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button Operator |
| Accessory Group | A |
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Plastic |
| Bezel Material | Double-Insulated Plastic |
| Bezel Material | Plastic |
| Cad Overall Depth | 52 mm |
| Cad Overall Height | 30 mm |
| Cad Overall Width | 30 mm |
| Color | Red |
| Device Presentation | Basic Element |
| Features | High Brightness, Snap Fit Assembly |
| Head Material | Plastic |
| Head/lens Color | Red |
| Ip Rating | IP66 |
| Legend | No Legend |
| Manufacturer Warranty Length | 18 Months |
| Mounting Diameter | 22 mm |
| Mushroom Head Diameter | 30 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Overall Depth | 2.05" |
| Overall Height | 1.18" |
| Overall Width | 1.18" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB5 Series |
| Shape Of Signaling Unit Head | Round |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 2.79 |
| Ship width (cm) | 2.79 |
| HS code | 3926909980 |
| Country of Origin | CZ |
Product Variants
| Product | Model | Type Of Operator | Color | Ip Rating | Legend | Nema Rating | Diameter | Basic Material | Head Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB5AA344 | Full Guard | Green | IP66 | Down | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 | - | Plastic | Plastic | €46.14 | |
 |
ZB5AA343 | Full Guard | Green | IP66 | Up | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 | - | Plastic | Plastic | €47.38 | |
 |
ZB5AA1 | Full Guard | White | IP66 | No Legend | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 | - | Plastic | Plastic | €26.30 | |
 |
ZB5AA18 | Full Guard | White | IP69K | No Legend | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 | - | Plastic | Plastic | €31.78 | |
 |
ZB5AA2 | Full Guard | Black | IP66, IP69K | No Legend | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 | - | Plastic | Plastic | €26.30 | |
 |
ZB5AA3 | Full Guard | Green | IP66 | No Legend | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 | - | Plastic | Plastic | €26.30 | |
 |
ZB5AA4 | Full Guard | Red | IP66 | No Legend | - | - | Plastic | Plastic | €26.30 |
