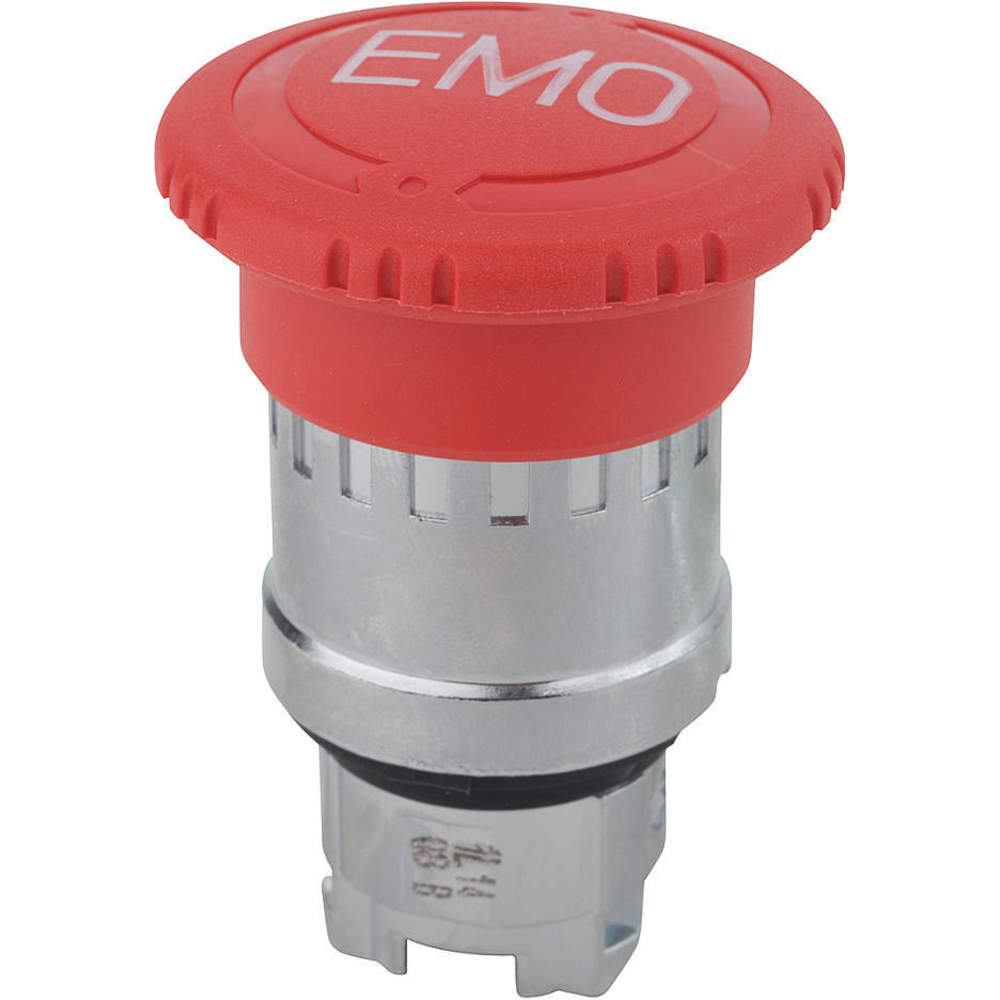

SCHNEIDER ELECTRIC ZB4BS84430 Push Button Red 22mm Non-Illuminated
Item: AG3FDZModel: ZB4BS84430Cross Ref: 33HP39
7 In Stock
Ships within 2 days via
10.00% off
€159.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Push Button Operator |
| Accessory Group | Push Buttons |
| Action | Maintained |
| Action Type | Turn To Release |
| Basic Material | Metal |
| Bezel Finish | Chrome Plated |
| Bezel Material | Metal |
| Bezel Material | Chromed Plated Metal |
| Cad Overall Depth | 57 mm |
| Cad Overall Height | 40 mm |
| Cad Overall Width | 40 mm |
| Color | Red |
| Features | Snap Fit Assembly, Visually Distinct At A Distance |
| Head Finish | Chrome Plated |
| Head Material | Metal |
| Head/lens Color | Red |
| Ip Rating | IP66 |
| Legend | No Legend |
| Maintained Action Release | Twist |
| Manufacturer Warranty Length | 18 Months |
| Mounting Diameter | 22 mm |
| Mushroom Head Diameter | 40 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 4, NEMA 4X |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Depth | 2.24" |
| Overall Height | 1.57" |
| Overall Width | 1.57" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Emergency Stop Push Buttons |
| Push Button Style | Mushroom Head |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB4 Series |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | Mushroom |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 5.84 |
| Ship width (cm) | 4.06 |
| HS code | 8538908080 |
| Country of Origin | CZ |
Product Variants
| Product | Model | Head Material | Color | Ip Rating | Bezel Material | Action Type | Terminal Connection Type | Basic Material | Number Of Operators | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB4BD28 | Aluminum, Zinc | Black | IP69, IP69K | Die Cast Aluminum | Maintained | Spring Terminals | Metal | 1 | €81.07 | |
 |
9001K15 | Metal | Black | IP66 | Metal | Emergency Glass | - | Metal | 1 | €255.76 | |
 |
9001KR131 | Metal | No Cap | IP66 | Metal | Key, Locked Extended | - | Metal | 1 | €274.24 | |
 |
9001KR133 | Metal | No Cap | IP66 | Metal | Key, Locked Depressed | - | Metal | 1 | - | RFQ
|
 |
ZB4BX84 | Metal | Red | IP66 | Metal | Push On/Push Off | - | Metal | 1 | €99.90 | |
 |
ZB4BD48 | Aluminum, Zinc | Black | IP69, IP69K | Die Cast Aluminum | Momentary | Screw Terminals | Metal | 1 | €106.42 | |
 |
ZB4BH06 | Metal | Blue | IP66 | Metal | - | - | Metal | 1 | €41.78 |
