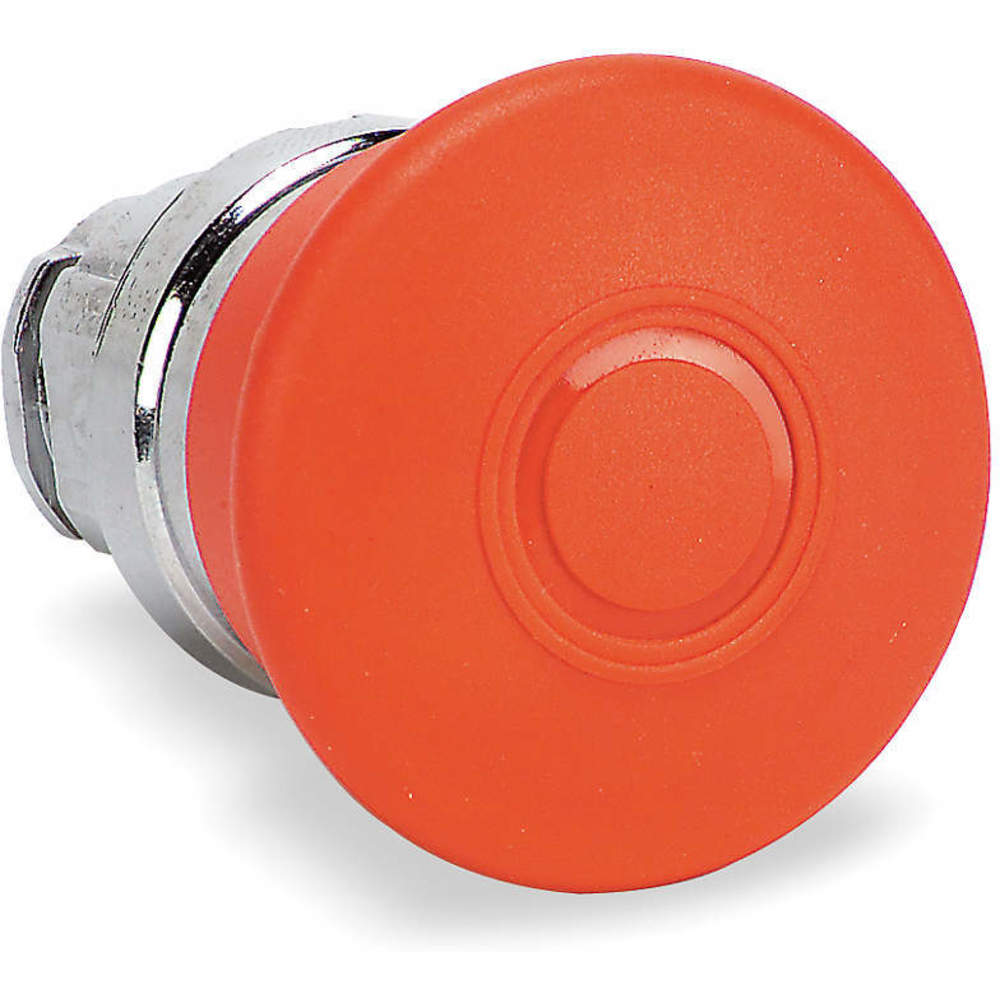

SCHNEIDER ELECTRIC ZB4BS844 Non-illuminated Push Button Operator 22mm Red
Item: AG7FAKModel: ZB4BS844Cross Ref: 6HP67
7 In Stock
Ships within 2 days via
10.00% off
€156.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button Operator |
| Action | Maintained |
| Action Type | Turn To Release |
| Basic Material | Metal |
| Bezel Finish | Chrome Plated |
| Bezel Material | Chrome Die Cast Aluminium |
| Bezel Material | Metal |
| Cad Overall Depth | 57 mm |
| Cad Overall Height | 40 mm |
| Cad Overall Width | 40 mm |
| Color | Red |
| Device Presentation | Basic Element |
| Features | Snap Fit Assembly, Visually Distinct At A Distance |
| Head Material | Metal |
| Head/lens Color | Red |
| Ip Rating | IP66, IP69K |
| Legend | No Legend |
| Maintained Action Release | Twist |
| Manufacturer Warranty Length | 18 Months |
| Mounting Diameter | 22 mm |
| Mushroom Head Diameter | 40 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Depth | 2.24" |
| Overall Height | 1.57" |
| Overall Width | 1.57" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Datasheet | schneider-electric-zb4bs844.pdf |
| Product Type | Emergency Stop Push Buttons |
| Push Button Style | Mushroom Head |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Series | XB4 Series |
| Shape Of Signaling Unit Head | Round |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| HS code | 8536509031 |
| Country of Origin | CZ |
Documentation:
Product Variants
| Product | Model | Head Material | Basic Material | Contact Form | Bezel Material | Color | Legend | Ip Rating | Legend/background Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

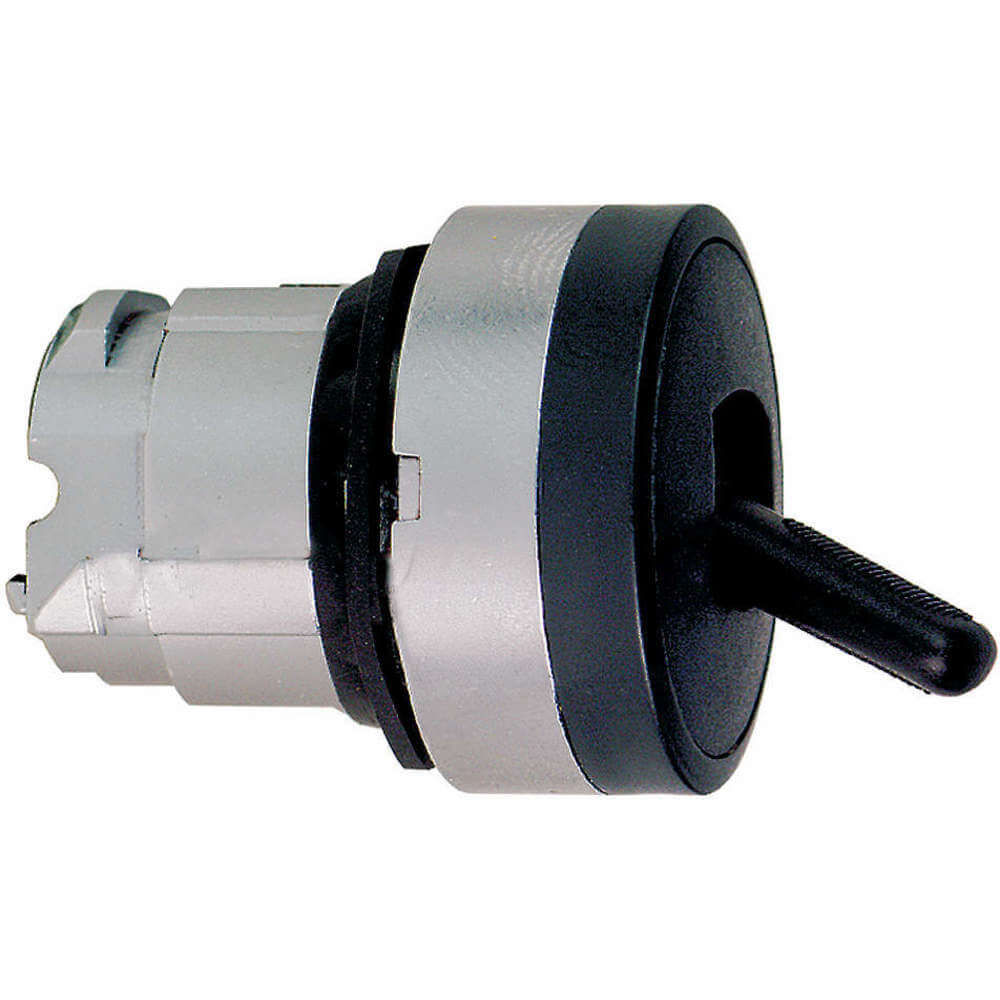

ZB4BD28 | Aluminum, Zinc | Metal | - | Die Cast Aluminum | Black | No Legend | IP69, IP69K | - | €81.07 | |
 |

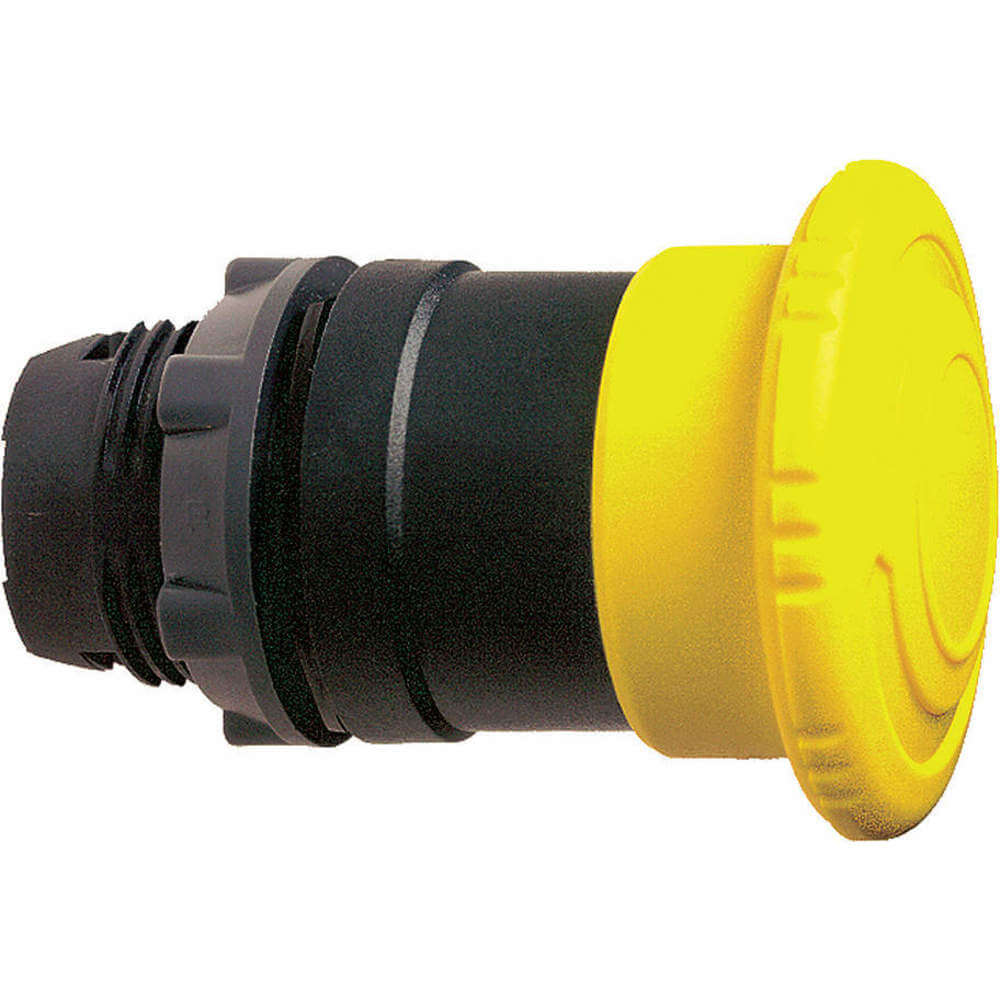

ZB5AS55 | Plastic | Plastic | - | Plastic | Yellow | No Legend | - | - | €182.45 | |
 |

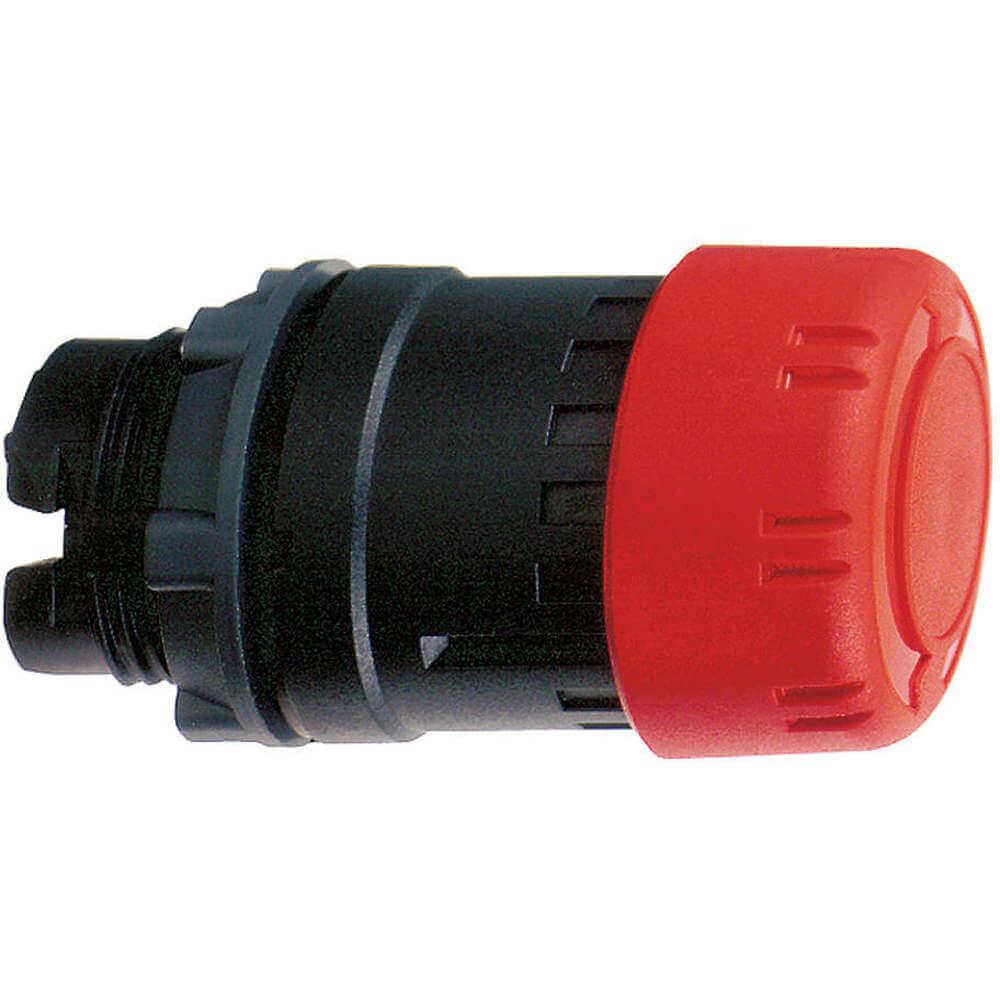

ZB5AS834 | Plastic | Plastic | - | Plastic | Red | No Legend | IP66 | - | €167.81 | |
 |

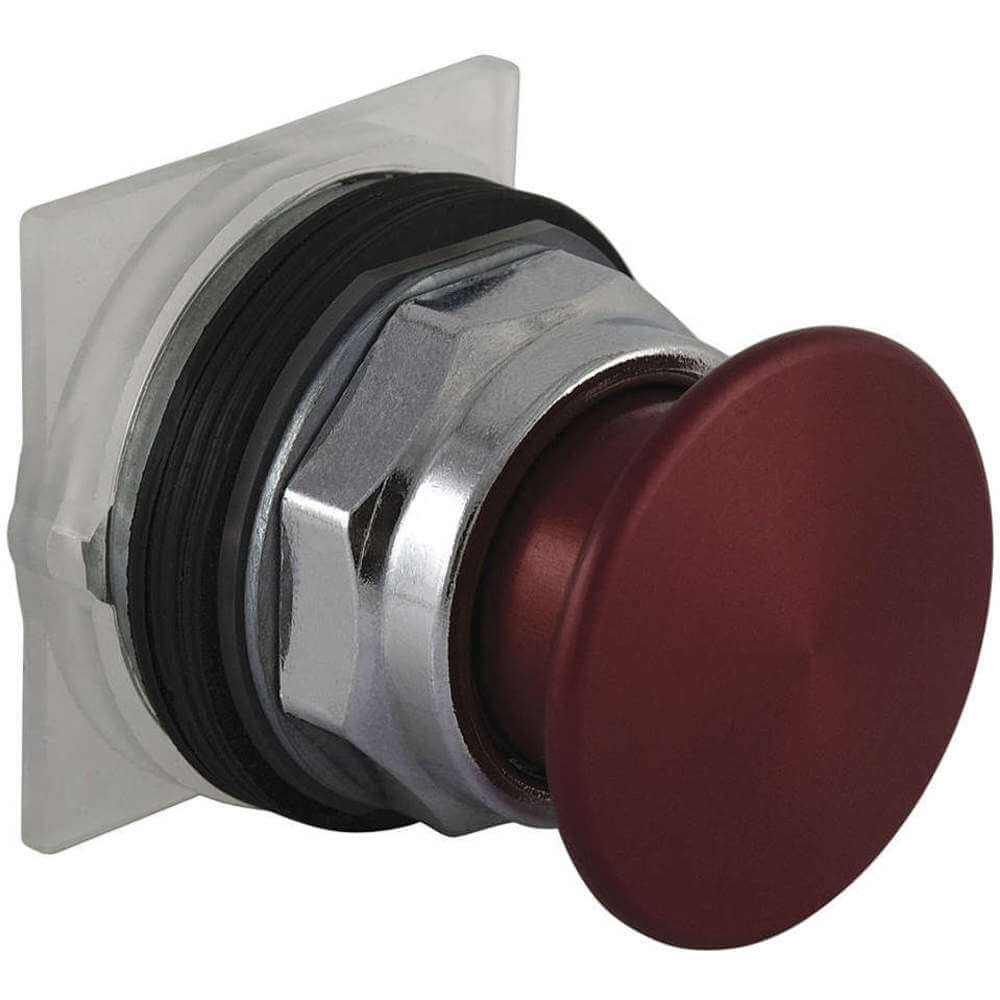

9001KR24RM | Metal | Metal | - | Metal | Red | No Legend | IP66 | - | €107.24 | |
 |

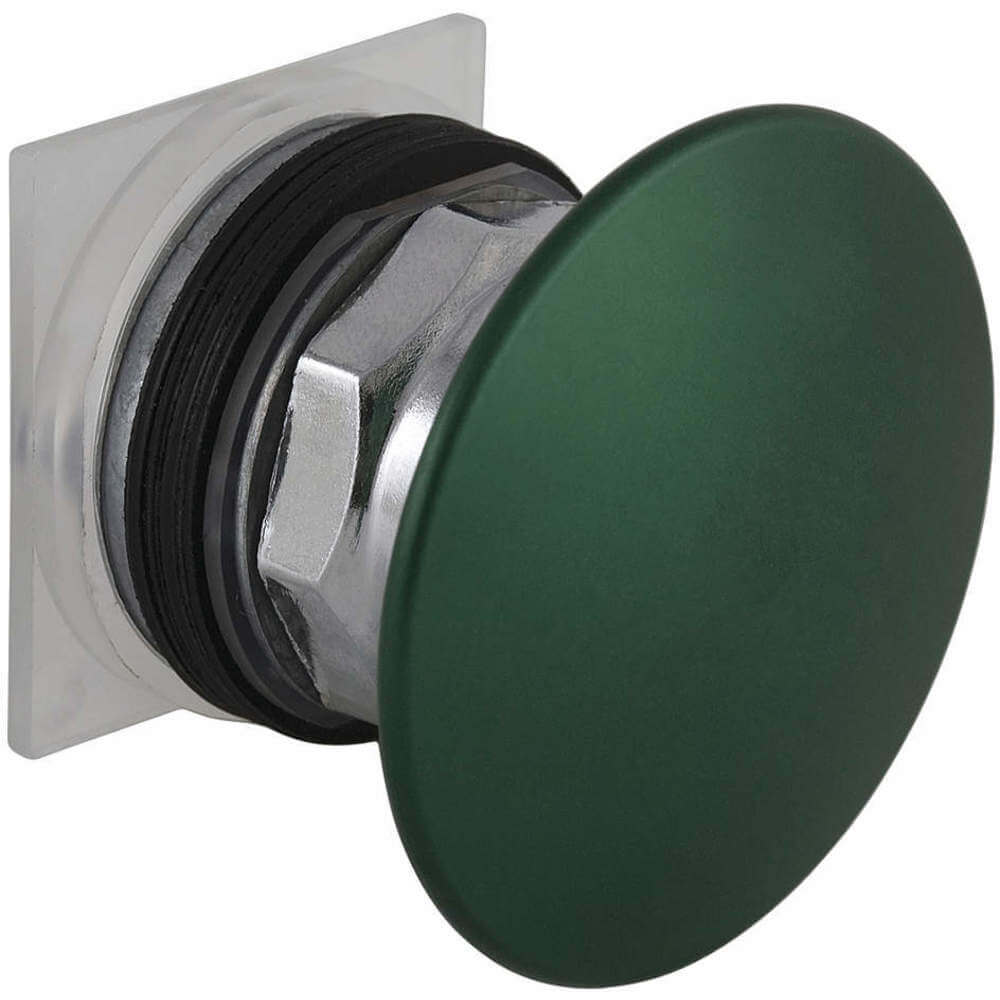

9001KR25GM | Metal | Metal | - | Metal | Green | No Legend | IP66 | - | €198.14 | |
 |
9001KR16 | Plastic | Metal | - | Metal | Red | No Legend | IP66 | - | €219.44 | |
 |

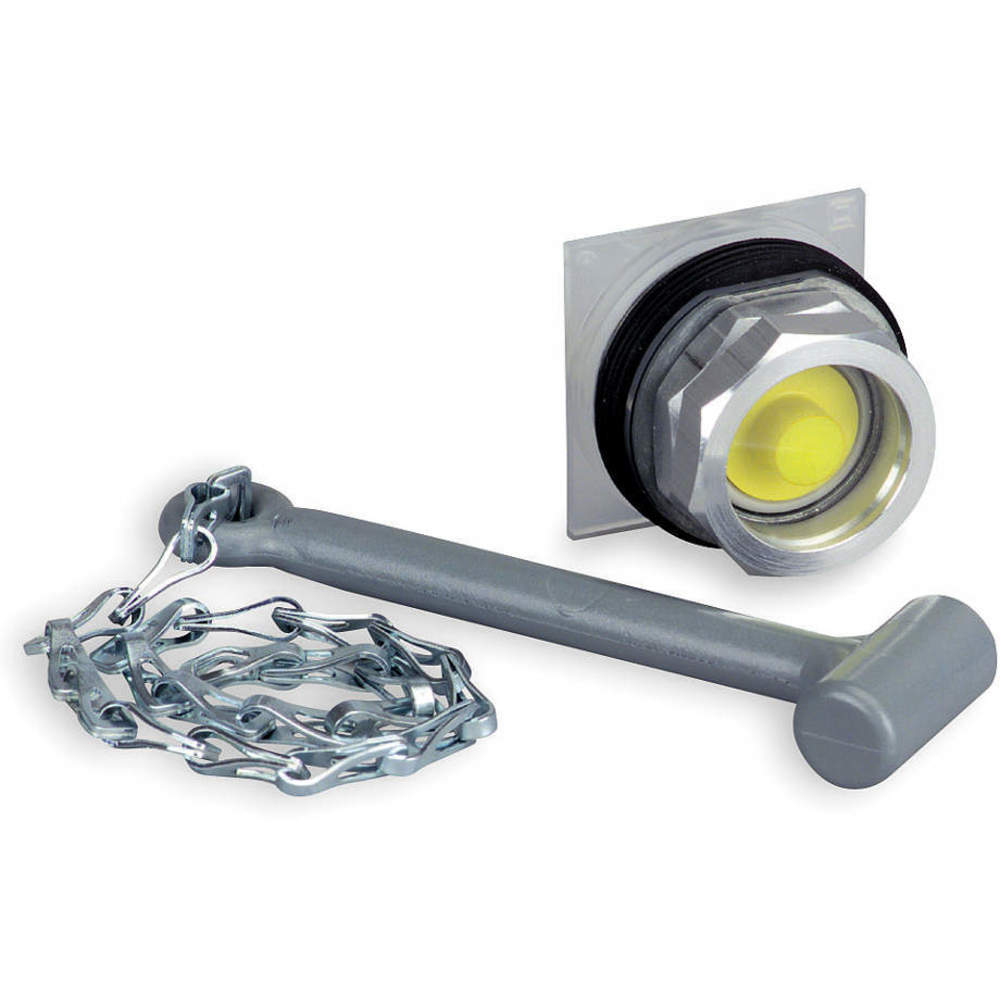

9001K15 | Metal | Metal | - | Metal | Black | No Legend | IP66 | - | €255.76 |
