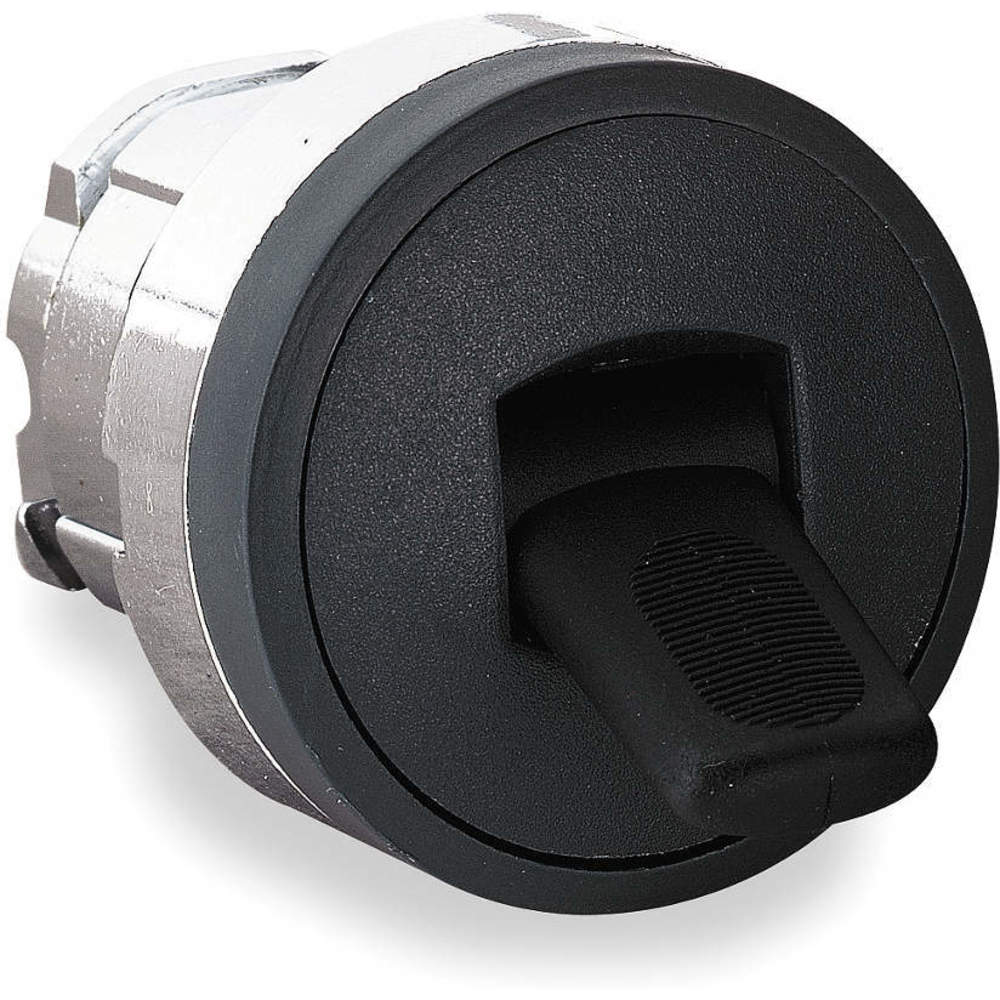

SCHNEIDER ELECTRIC ZB4BD48 Toggel Switch Operator 22mm Black
Item: AG7EXAModel: ZB4BD48Cross Ref: 6HN40
7 In Stock
Ships within 2 days via
13.00% off
€66.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Toggle Switch Operator |
| Accessory Group | B |
| Action Type | Momentary |
| Actuator Material | Metal |
| Basic Material | Metal |
| Bezel Finish | Chrome Plated |
| Bezel Material | Die Cast Aluminum |
| Bezel Material | Chrome Die Cast Aluminium |
| Cad Overall Depth | 45 mm |
| Cad Overall Height | 29 mm |
| Cad Overall Width | 29 mm |
| Color | Black |
| Device Presentation | Basic Element |
| Head Material | Aluminum, Zinc |
| Ip Rating | IP69, IP69K |
| Legend | No Legend |
| Max. Operating Temp. | 158°F |
| Metal Actuator Finish | Chrome |
| Min. Operating Temp. | -40°F |
| Mounting Dia. | 22 mm |
| Nema Enclosure Rating | NEMA 4X, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 |
| No. Of Connections | 1 |
| No. Of Operators | 1 |
| No. Of Positions | 2 |
| Operator Illumination Style | Non-Illuminated |
| Overall Depth | 1.77" |
| Overall Height | 1.14" |
| Overall Width | 1.14" |
| Panel Mounting Hole Dia. | 0.87" |
| Product Datasheet | schneider-electric-zb4bd48.pdf |
| Product Type | Toggle Switch |
| Resistance Properties | Vibration Resistant |
| Series | ZB4 Series |
| Shape Of Signaling Unit Head | Round |
| Switch Function Configuration | Off/Momentary On |
| Terminal Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 4.57 |
| Ship width (cm) | 3.05 |
| HS code | 8536509035 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Head Material | Bezel Material | Panel Mounting Hole Dia. | Operator Material | Color | Legend | Ip Rating | Product Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB4BD28 | Aluminum, Zinc | Die Cast Aluminum | 0.87" | - | Black | No Legend | IP69, IP69K | Toggle Switch | €57.97 | |
 |
ZB5AS55 | Plastic | Plastic | - | - | Yellow | No Legend | - | - | €130.48 | |
 |
ZB5AS834 | Plastic | Plastic | 22 mm | Plastic | Red | No Legend | IP66 | Multihead Operators | €120.01 | |
 |
9001KR24RM | Metal | Metal | 30 mm | Metal | Red | No Legend | IP66 | Push Button Operators | €116.98 | |
 |
9001KR25GM | Metal | Metal | 30 mm | Metal | Green | No Legend | IP66 | Push Button Operators | €141.70 | |
 |
9001KR16 | Plastic | Metal | 30 mm | Plastic | Red | No Legend | IP66 | Emergency Stop Push Buttons | - | RFQ
|
 |
9001K15 | Metal | Metal | 30 mm | Metal | Black | No Legend | IP66 | Emergency Stop Push Buttons | €182.88 |
