PETERSEN PRODUCTS 130-0 Series Pipe Plug
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y| Style | Model | Max. Dia. | Deflated Dia. | Nominal Size | Max. Pressure | Deflated Length | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|
| A | 130-0015 | 1 3/4" | 1.1" | 1.25" to 1.5" | 13 psi | 5 1/2" | 120°F | €34.22 | |
| B | 130-0012 | 1.3" | 0.73" | 0.75" to 1.25" | 17 psi | 3 3/4" | 120°F | €53.29 | |
| C | 130-002 | 2 1/4" | 1.77" | 2" | 13 psi | 2 21/25" | 120°F | €36.46 | |
| D | 130-0025 | 2 3/4" | 2.3" | 2 1/2" | 13 psi | 4 1/2" | 120°F | €41.61 | |
| E | 130-002-M | 2.1" | 1.21" | 1.25" to 2" | 17 psi | 5 14/25" | 120°F | €41.05 | |
| F | 130-003 | 3 1/4" | 2 16/25" | 3" | 13 psi | 5 1/4" | 120°F | €39.36 | |
| G | 130-003-M | 3.1" | 1.78" | 2" to 3" | 17 psi | 5.57" | 120°F | €44.13 | |
| H | 130-004 | 4 1/4" | 3 1/4" | 4" | 13 psi | 6 1/2" | 120°F | €45.72 | |

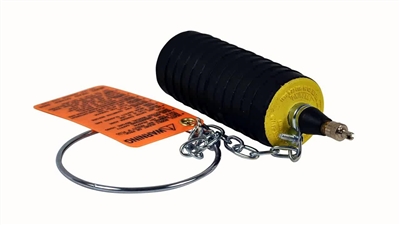

| I | 130-004-M | 4 1/4" | 2 16/25" | 3" to 4" | 17 psi | 5.18" | 120°F | €54.32 | |

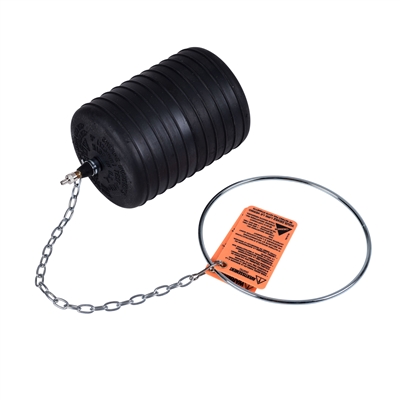

| J | 130-005 | 5 1/4" | 4 1/2" | 5" | 13 psi | 7 3/4" | 120°F | €86.67 | |

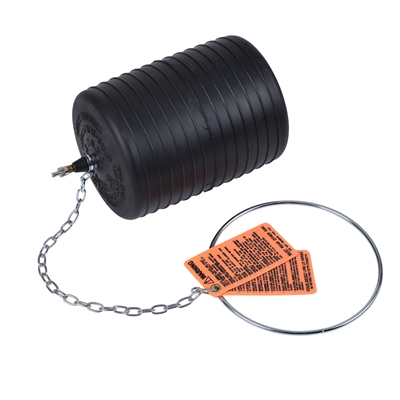

| K | 130-006 | 6 1/4" | 5 1/4" | 6" | 13 psi | 9" | 120°F | €114.07 | |

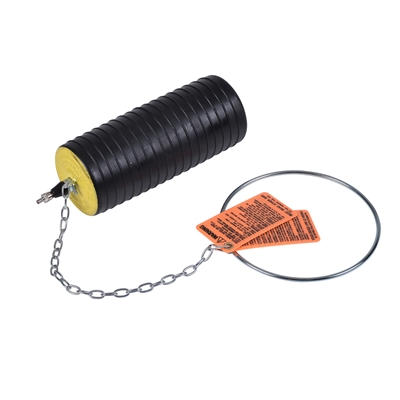

| L | 130-006-M | 6 1/4" | 3 7/25" | 4" to 6" | 17 psi | 9.47" | 120°F | €119.68 | |
| M | 130-006-MS | 6 1/4" | 3 1/2" | 4" to 6" | 17 psi | 9 4/5" | 120°F | €119.68 | |

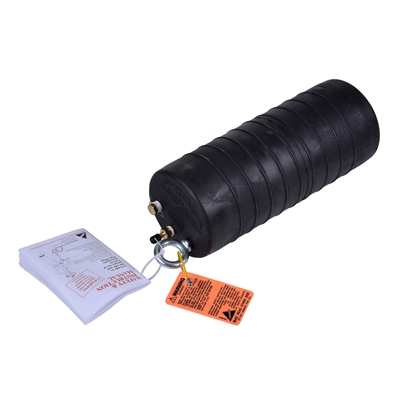

| N | 130-008-MS | 8 1/4" | 5" | 6" to 8" | 17 psi | 14" | 120°F | €209.44 | |
| O | 130-008-IM | 8 1/4" | 3.95" | 4" to 8" | 15 psi | 23" | 120°F | €351.56 | |
| P | 130-008 | 8 1/4" | 6 3/4" | 8" | 17 psi | 10 1/4" | 120°F | €172.04 | |

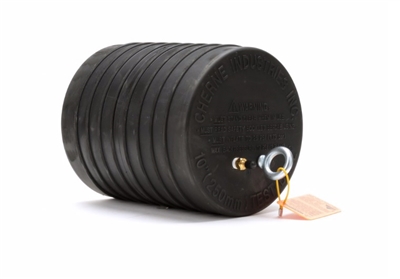

| Q | 130-010 | 10 1/4" | 8 3/4" | 10" | 17 psi | 11 3/4" | 120°F | €412.97 | |
| R | 130-012 | 12 1/4" | 10 1/4" | 12" | 17 psi | 13 3/4" | 120°F | €351.56 | |
| S | 130-012-MS | 12 1/4" | 6 3/4" | 8" to 12" | 11 psi | 16" | 120°F | €490.87 | |

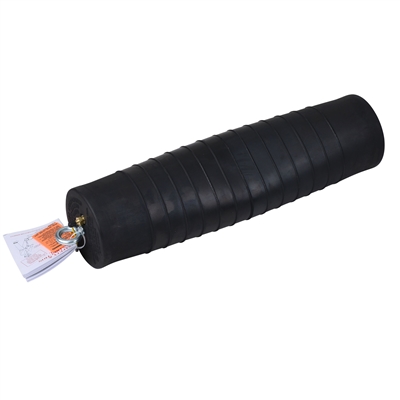

| T | 130-012-MSM | 12 1/4" | 5 1/2" | 6" to 12" | 15 psi | 25" | 120°F | €530.15 | |
| U | 130-016-MS | 16 1/4" | 7 1/2" | 8" to 16" | 15 psi | 28" | 120°F | €647.02 | |
| V | 130-018-MS | 18 1/4" | 10 3/4" | 12" to 18" | 15 psi | 25" | 120°F | €991.10 | |

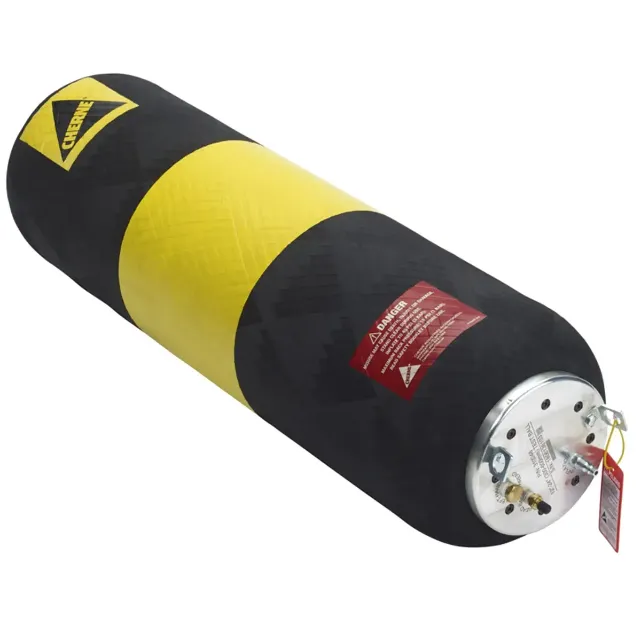

| W | 130-024-IM | 24 1/4" | 11" | 12" to 24" | 15 psi | 37" | 120°F | €1,019.15 | |
| X | 130-024-MS | 24 1/4" | 11" | 12" to 24" | 15 psi | 37" | 120°F | - | RFQ
|
| X | 130-030-MS | 32" | 14.3" | - | - | 48" | 120°F | €2,290.75 | |
| Y | 130-040-MS | 40" | 19 1/2" | 20" to 40" | - | 53 1/2" | 120°F | €2,776.95 | |
| Y | 130-048-MS | 50" | 19.1" | 24" to 48" | - | 68" | 120°F | €3,917.65 | |
| X | 130-060-MSM | 60 1/2" | 19.1" | 24" to 60" | - | 88" | 120°F | €7,751.15 | |
| Y | 130-072-MS | 72 1/4" | 43" | 48" to 72" | - | 100" | 120°F | €10,472.00 | |
| Y | 130-096-MS | 96 1/4" | 50" | 54" to 96" | - | 128" | 120°F | €14,399.00 |
130-0 Series Pipe Plug
Petersen Products 130-0 Series pipe plugs provide a temporary or permanent airtight seal in various types of pipe systems, such as leak testing and pipe maintenance applications. They are made of natural rubber for abrasion resistance and vibration damping. They can withstand temperatures and pressures up to 120 degrees F and 17 psi.
