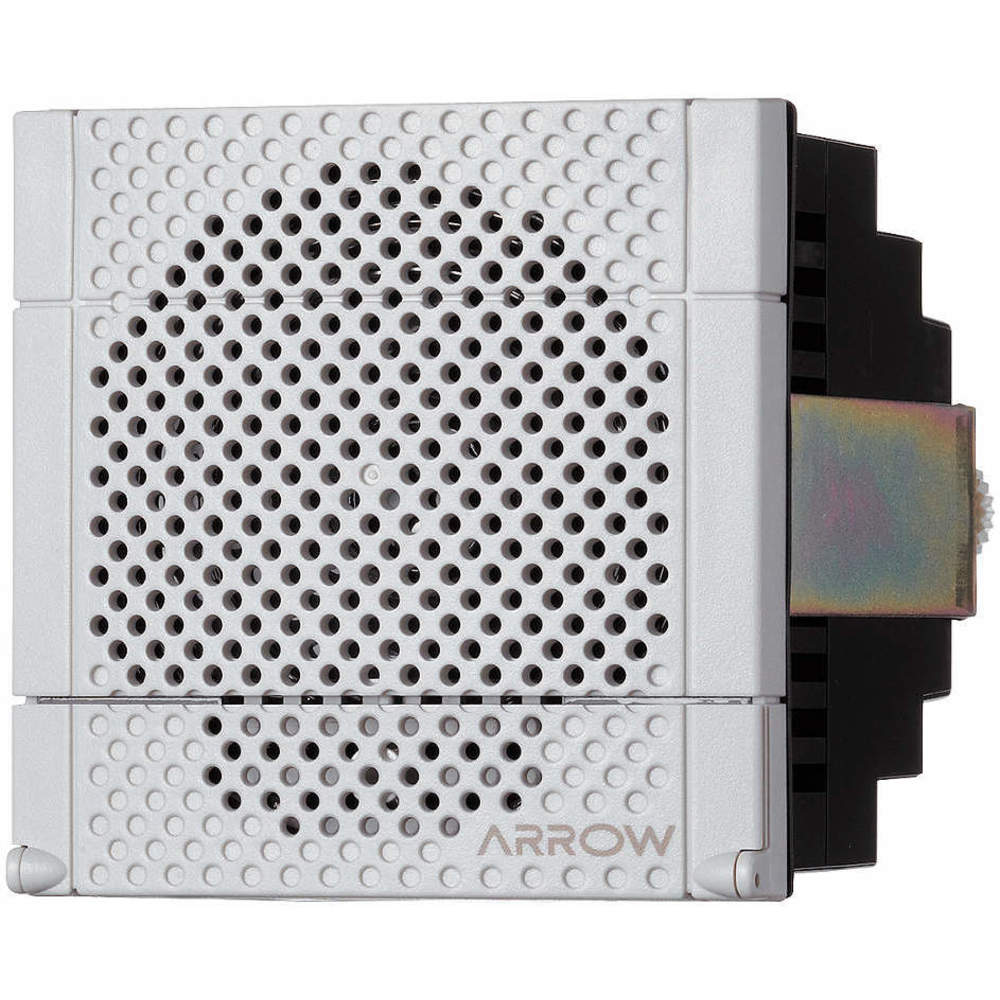

SCHNEIDER ELECTRIC XVS72BMWP Electronic Alarm 12/24vac/dc 0.280ac White
Item: AG7DDCModel: XVS72BMWPCross Ref: 5FZG7
7 In Stock
Ships within 2 days via
10.00% off
€255.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electronic Alarm |
| Alarm Volume @ 1 M - Maximum | 90 dB |
| Alarm Volume @ 1 M - Minimum | 2 dB |
| Amps | 0.28A |
| Color | White |
| Connection Type | Wire Leads |
| Control Protocol | Direct Wire |
| Decibels | 0 to 105dB |
| Depth | 2.734" |
| Features | 4 Channels |
| For Location | Indoor |
| Height | 4" |
| Includes Mounting Hardware | No Mounting Hardware |
| Indoor/outdoor | Indoor |
| Ip Rating | IP54 |
| Material | ABS, Polycarbonate |
| Mounting | Panel |
| Mounting Location | Corner Mount, Wall Mount |
| Mounting Style | Surface Mount |
| Mounting Type | Panel |
| Noise Level | 0 dBA to 105 dBA |
| Number Of Sound Patterns | 16 |
| Operating Current | 0.117A @ 12V, 0.125A @ 24V, 0.158A @ 12V, 0.2A @ 24V |
| Operating Temp. Range | +14°F to +122°F |
| Operating Temperature - Maximum | 50°C |
| Operating Temperature - Minimum | -10°C |
| Operating Voltage | 12-24V DC |
| Overall Depth | 69.3125 mm |
| Overall Length | 72 mm |
| Overall Width | 72 mm |
| Power Source | Wire |
| Product Datasheet | schneider-electric-xvs72bmwp.pdf |
| Product Type | Alarm |
| Sound Continuity | Continuous |
| Sound Style | Tone |
| Vibration | No Vibration |
| Volume Selection | Selectable Volume |
| Wattage | 6.7 W |
| Width | 3 1/2" |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 6.95 |
| Ship width (cm) | 8.89 |
| HS code | 8531800040 |
| Country of Origin | ID |
Documentation:
Product Variants
| Product | Model | Depth | Voltage | Amps | Color | Wattage | Operating Temp. Range | Noise Level | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

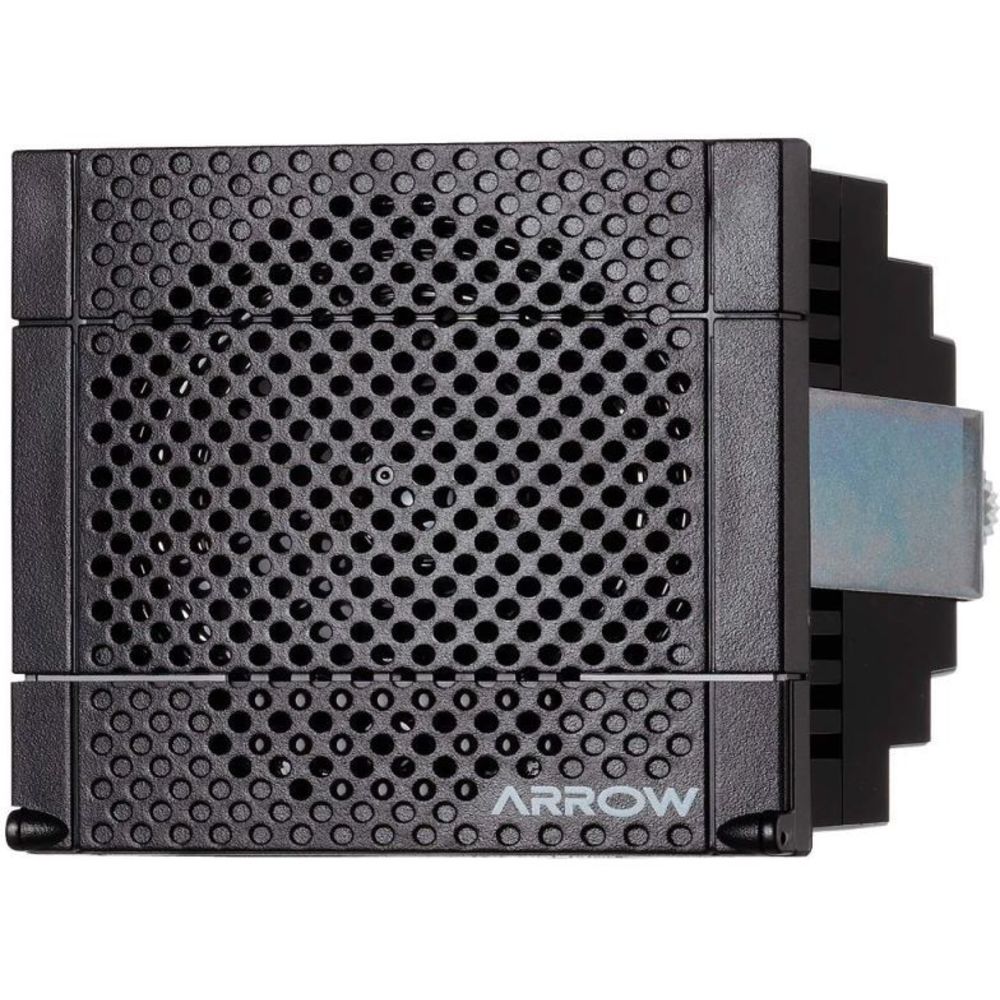

XVS72BMBP | 2.828" | - | 0.28A | Black | 6.7 W | +14°F to +122°F | 0 dBA to 105 dBA | Wire Leads | €286.61 | |
|
XVS72BMWN | 2.719" | - | 0.28A | White | 6.7 W | +14°F to +122°F | 0 dBA to 105 dBA | Wire Leads | €283.34 | |
 |

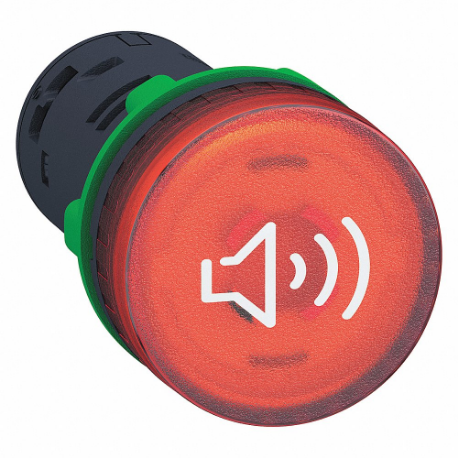

XB5KS2M4 | 2.17" | 230-240V | 35 mA | Red | 5 W | -40°F to +158°F | 90 dBA | Screw Terminal | €101.86 | |
 |

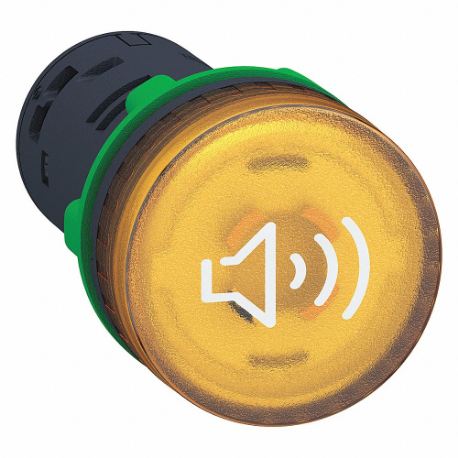

XB5KS2M8 | 2.17" | 230-240V | 35 mA | Yellow | 5 W | -40°F to +158°F | 90 dBA | Screw Terminal | €105.47 | |
 |

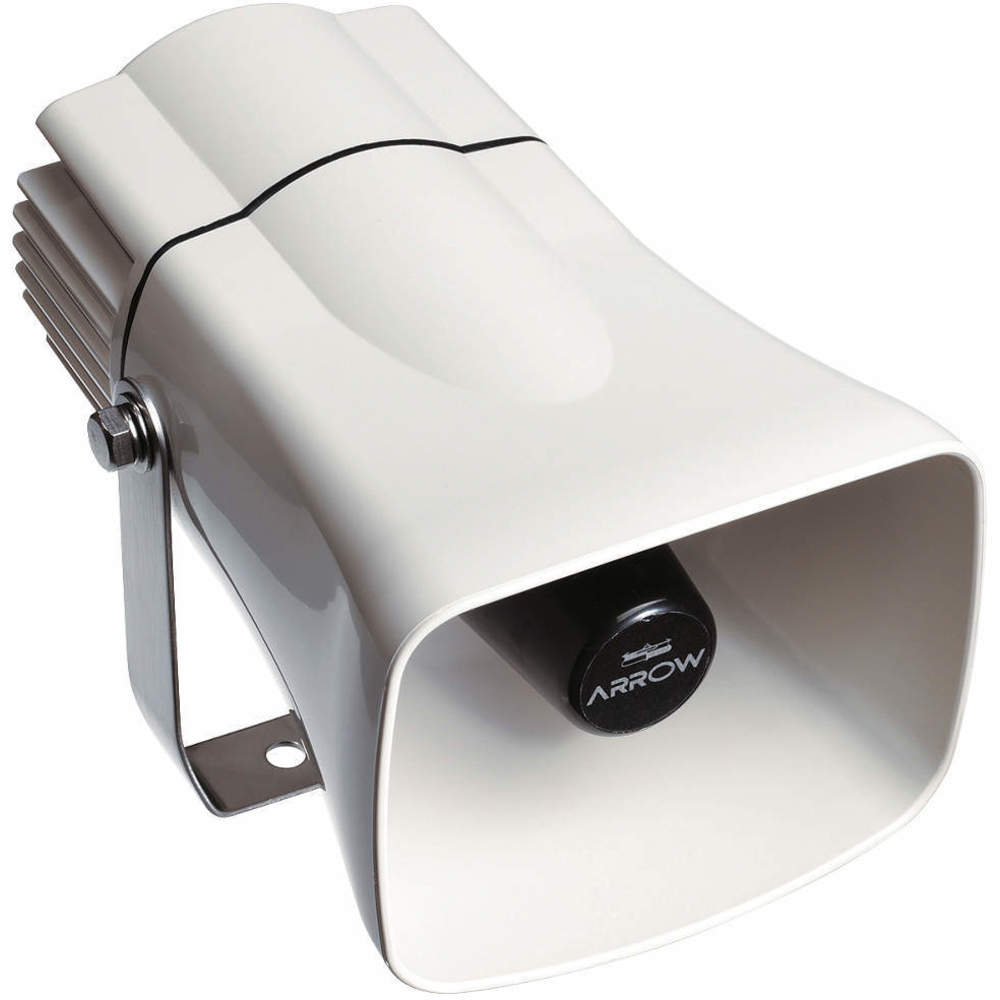

XVS14BMW | 8.781" | 24V DC | 0.4A | White | 4.8 W | +14°F to +122°F | 0 dBA to 105 dBA | Wire Leads | €761.56 | |
|
XVS72BMBN | - | - | 0.28A | Black | 6.7 W | +14°F to +122°F | 0 dBA to 105 dBA | Wire Leads | €278.16 |
