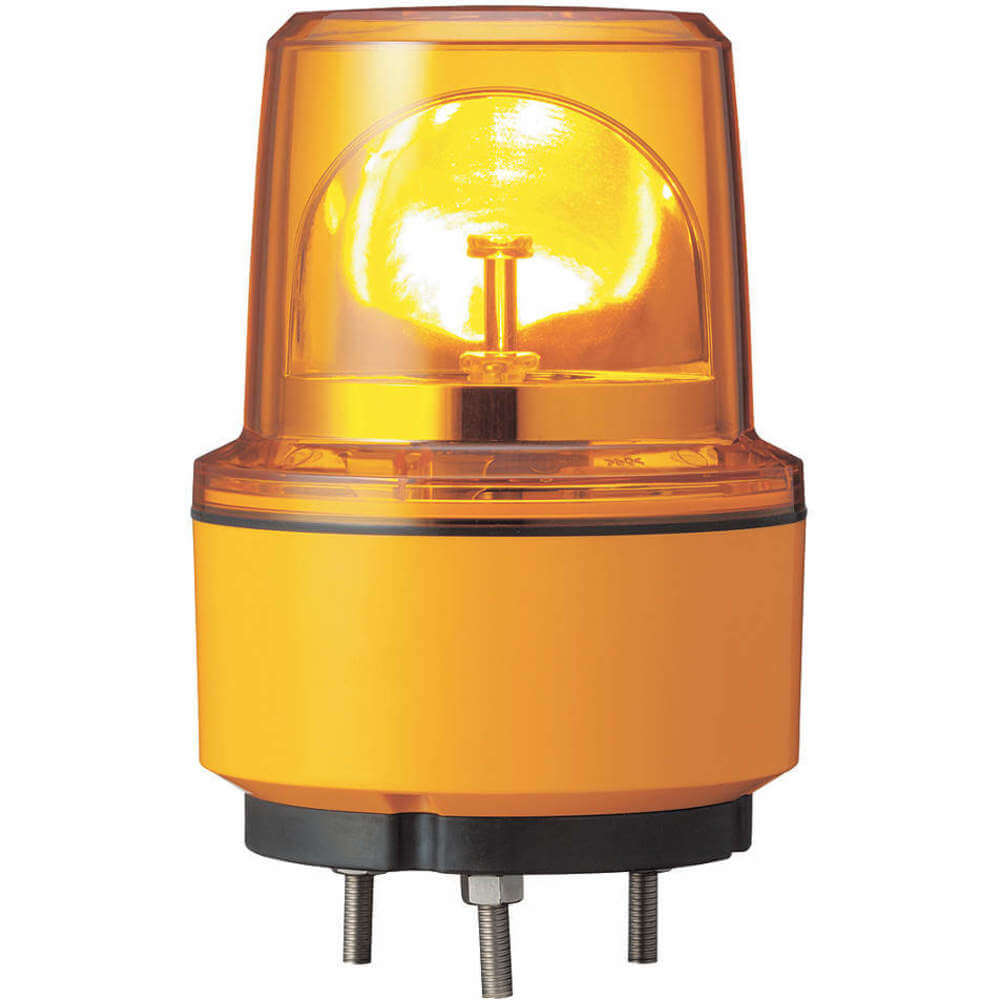

SCHNEIDER ELECTRIC XVR13B05 Rotating Mirror Yellow 24VAC/DC
Item: AH2XHXModel: XVR13B05Cross Ref: 30N613
7 In Stock
Ships within 2 days via
13.00% off
€333.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotating Mirror Beacon |
| Brightness Selection | Fixed Brightness |
| Color | Orange |
| Control Protocol | Direct Wire |
| Dia. | 130 mm , 5 1/8" |
| Flashes Per Minute | 162 FPM |
| Height | 177 mm |
| Housing Material | ABS Resin |
| Ip Rating | IP66 |
| Lamp Color | Orange |
| Lamp Life | 100000 hrs. |
| Lamp Type | LED |
| Lens Color | Orange |
| Lens Design | Integral Screw Mount |
| Lens Material | Polycarbonate |
| Lifespan | 100000 hrs. |
| Light Intensity | 4818 cd |
| Light Operating Mode | Rotating |
| Light Source | LED |
| Max. Operating Temp. | 50°C |
| Min. Operating Temp. | -30°C |
| Mounting Location | Threaded Mount |
| Mounting Mechanism | Screw |
| Mounting Type | Bolt And Nut |
| Operating Amps | 0.125A |
| Operating Temp. | -30°C to +50°C |
| Operating Voltage | 24V DC |
| Overall Dia. | 5 1/8" |
| Overall Height | 5 1/8" |
| Power Source | Wire |
| Product Type | Warning Light |
Shipping Info:
| Ship weight (kg) | 1.22 |
| Ship height (cm) | 17.7 |
| Ship length (cm) | 13 |
| Ship width (cm) | 13 |
| Country of Origin | ID |
Product Variants
| Product | Model | Height | Lens Material | Dia. | Operating Voltage | Lens Color | Operating Amps | Color | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XVR12B04 | 150 mm | Polycarbonate Resin | 4 23/32" | 24V AC/DC | Red | 0.125A | Red | 4 23/32" | €287.10 | |
|
XVR12B04S | 150 mm | Polycarbonate Resin | 4 23/32" | 24V AC/DC | Red | 0.196A | Red | 4 23/32" | €296.51 | |
 |
XVR12B05 | 150 mm | Polycarbonate Resin | 4 23/32" | 24V AC/DC | Orange | 0.125A | Orange | 4 23/32" | €275.68 | |
|
XVR12B05S | 150 mm | Polycarbonate Resin | 4 23/32" | 24V AC/DC | Orange | 0.196A | Orange | 4 23/32" | €286.81 | |
 |
XVR12B06 | 150 mm | Polycarbonate Resin | 4 23/32" | 24V AC/DC | Blue | 0.125A | - | 4 23/32" | €282.34 | |
|
XVR12B06S | 150 mm | Polycarbonate Resin | 4 23/32" | 24V AC/DC | Blue | 0.196A | Blue | 4 23/32" | €299.81 | |
 |
XVR13B04 | 177 mm | Polycarbonate | 5 1/8" | 24V DC | Red | 0.125A | Red | 5 1/8" | €383.01 |
