SCHNEIDER ELECTRIC XVC4B3 Tower Light 40mm Steady 0.08a Red Orange Green
Item: AG7DBFModel: XVC4B3Cross Ref: 5FTJ8
7 In Stock
Ships within 2 days via
10.00% off
€372.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tower Light Assembly, 40mm |
| Amps Drawn | 0.08A |
| Color | Green, Orange, Red |
| Connection Type | Wire Leads |
| Control Protocol | Direct Wire |
| Cord Length | 2 ft. |
| Height | 2 1/2" |
| Housing Material | ABS, PBT |
| Includes Sounder Tier | No Sounder Tier |
| Ip Rating | IP23 |
| Lamp Life | 100000 hrs. |
| Lens Design | Cylinder |
| Lens Material | Polycarbonate |
| Lens Shape | Cylinder |
| Lifespan | 100000 hrs. |
| Light Mode | Steady |
| Light Operating Mode | Steady |
| Light Tier Color | Green, Orange, Red |
| Mode | Steady Only |
| Mode | Steady |
| Mounting | Support Tube |
| Mounting Location | Wall Mount |
| Mounting Mechanism | Bracket |
| Nema Rating | Nema 12, Nema 3R |
| Number Of Light Tiers | 3 |
| Number Of Lights | 3 |
| Operating Current | 0.075A |
| Operating Temp. Range | +14°F to +122°F |
| Operating Temperature - Maximum | 50°C |
| Operating Temperature - Minimum | -10°C |
| Operating Voltage | 24V |
| Overall Diameter | 40 mm |
| Overall Height | 473.5 mm |
| Sounder Included | No |
| Wattage | 1.8 W |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 4 |
| Ship width (cm) | 4 |
| HS code | 8531800050 |
| Country of Origin | ID |
Product Variants
| Product | Model | Mode | Height | Sounder Included | Nema Rating | Diameter | Operating Temp. Range | Amps Drawn | Light Mode | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

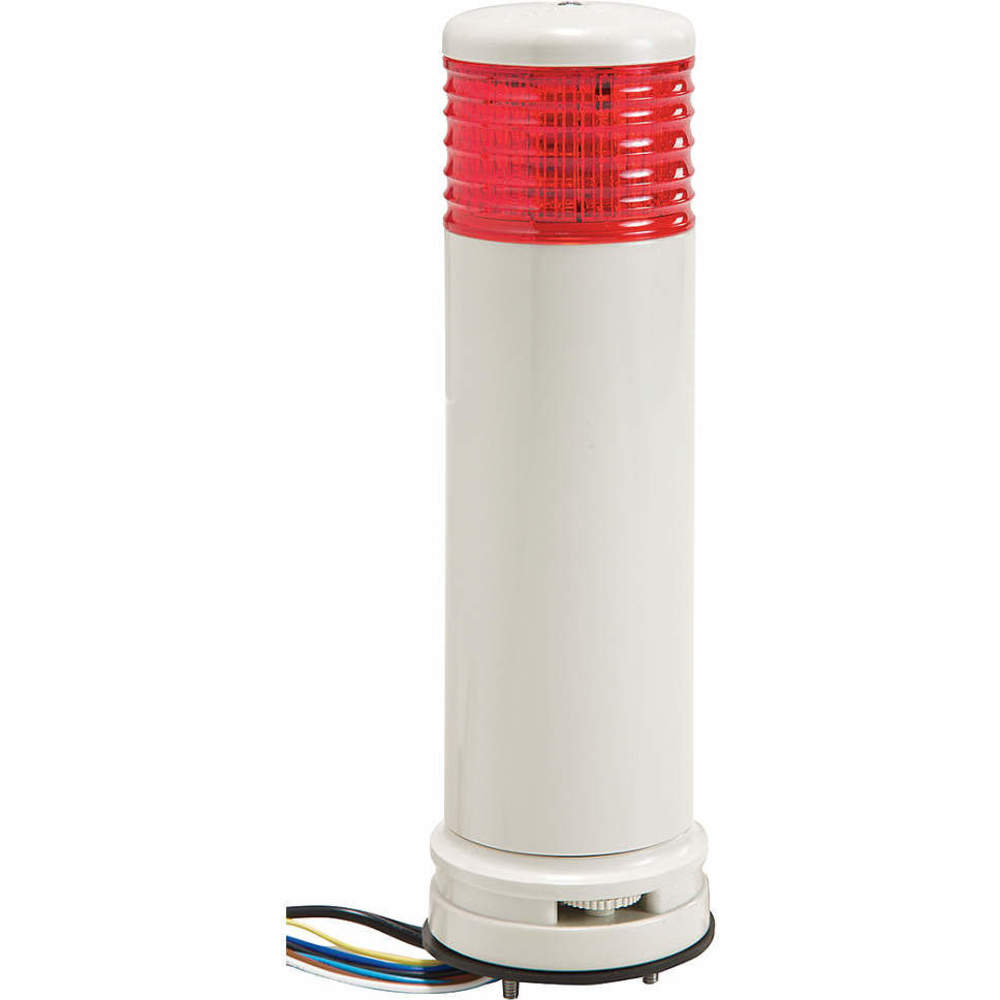

XVC6M15SK | Flashing With Buzzer, Steady | 9 1/8" | Yes | Nema 12, Nema 3R | 2 3/8" | -10°C to +50°C | 60 mA | Flashing, Steady | €498.27 | |
 |
XVC6M3K | Steady | 12.281" | No | Nema 12, Nema 3R | 2 3/8" | -30°C to +50°C | 60 mA | Steady | €549.54 | |
 |
XVC4M3 | Steady | 18.63" | No | Nema 12, Nema 3R | - | -10°C to +50°C | 60 mA | Steady | €570.44 | |
 |
XVC4M15S | Flashing With Buzzer, Steady | 22.312" | Yes | Nema 12, Nema 3R | - | -10°C to +50°C | 50 mA | Flashing, Steady | €571.42 | |
 |
XVC6M15S | Flashing With Buzzer, Steady | 23 5/8" | Yes | Nema 12, Nema 3R | 2 3/8" | -10°C to +50°C | 60 mA | Flashing, Steady | €597.50 | |
 |
XVC6M3 | Steady | 20" | No | Nema 12, Nema 3R | - | -30°C to +50°C | 60 mA | Steady | €644.00 | |
 |
XVC6M35SK | Flashing With Buzzer, Steady | 12.281" | Yes | Nema 3R | 2 3/8" | -30°C to +50°C | 85 mA | Flashing, Steady | €666.08 |
