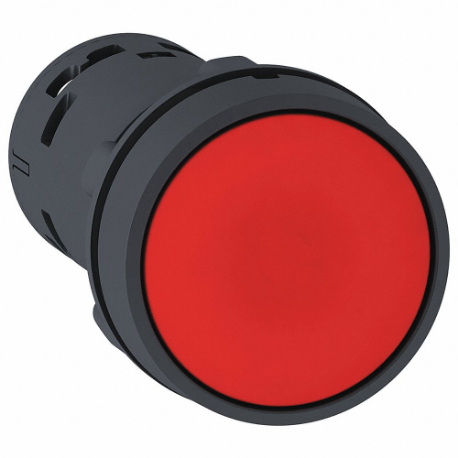

SCHNEIDER ELECTRIC XB7NA45 Push-Button, 22 mm Size, Momentary, Red, 12/3, Flush Button
Item: CU2CHVModel: XB7NA45Cross Ref: 55WM23
7 In Stock
Ships within 2 days via
13.00% off
€30.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Push Button Operator |
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Plastic |
| Bezel Material | Plastic |
| Color | Red |
| Features | Visually Distinct At A Distance |
| Head Material | Plastic |
| Head/lens Color | Red |
| Included | 4A Cartridge Fuse |
| Ip Rating | IP65 |
| Legend | No Legend |
| Legend/background Color | No Legend |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 3, NEMA 4, NEMA 12 |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Overall Depth | 2.03" |
| Overall Height | 1.14" |
| Overall Width | 1.14" |
| Panel Mounting Hole Dia. | 22 mm |
| Product Datasheet | schneider-electric-xb7na45.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB7 Series |
| Terminal Connection | Screw Clamp |
| Type Of Operator | Flush Button |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | ID |
Documentation:
Product Variants
| Product | Model | Head Material | Bezel Material | Panel Mounting Hole Dia. | Operator Material | Color | Legend | Ip Rating | Product Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZB4BD28 | Aluminum, Zinc | Die Cast Aluminum | 0.87" | - | Black | No Legend | IP69, IP69K | Toggle Switch | €57.97 | |
 |
ZB5AS55 | Plastic | Plastic | - | - | Yellow | No Legend | - | - | €130.48 | |
 |
ZB5AS834 | Plastic | Plastic | 22 mm | Plastic | Red | No Legend | IP66 | Multihead Operators | €120.01 | |
 |
9001KR24RM | Metal | Metal | 30 mm | Metal | Red | No Legend | IP66 | Push Button Operators | €116.98 | |
 |
9001KR25GM | Metal | Metal | 30 mm | Metal | Green | No Legend | IP66 | Push Button Operators | €141.70 | |
 |
9001KR16 | Plastic | Metal | 30 mm | Plastic | Red | No Legend | IP66 | Emergency Stop Push Buttons | - | RFQ
|
 |
9001K15 | Metal | Metal | 30 mm | Metal | Black | No Legend | IP66 | Emergency Stop Push Buttons | €182.88 |
