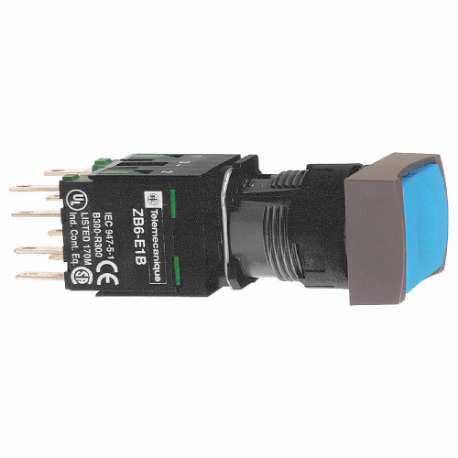

SCHNEIDER ELECTRIC XB6DA61B Push Button, 16 mm Size, Momentary, Blue, 1 No, Rectangular Flush Button
Get it by Wednesday, Jul 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Push Button |
| Ac Contact Rating | 1.5A @ 240V, 3A @ 120V |
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Metal |
| Bezel Material | Plastic |
| Color | Blue |
| Contact Form | 1 NO |
| Dc Contact Rating | 0.1A @ 250V, 0.22A @ 125V |
| Display Qty | 1 |
| Features | Circularity Profile, Mercury Free, Toxic Heavy Metal Free |
| Head Material | Plastic |
| Head/lens Color | Blue |
| Ip Rating | IP65 |
| Legend | No Legend |
| Material | Plastic |
| Max. Operating Temp. | 158°F |
| Max. Operator Voltage Rating | 250V AC/DC |
| Mechanical Operating Durability | 2 x 10^6 |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 13 |
| Nema Rating | NEMA 13, NEMA 4, NEMA 4X |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Overall Depth | 2.24" |
| Overall Height | 0.71" |
| Overall Width | 0.71" |
| Panel Mounting Hole Dia. | 16 mm |
| Product Datasheet | schneider-electric-xb6da61b.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Series | XB6 Series |
| Terminal Connection | Quick Connect |
| Type Of Operator | Rectangular Flush Button |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Ip Rating | Legend | Contact Form | Type Of Operator | Terminal Connection | Bezel Material | Max. Operating Temp. | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB5AA61 | IP66, IP67, IP69, IP69K | No Legend | 1NO | Booted Button | Screw Clamp | Plastic | 158°F | -40°F | €42.07 | |
 |
9001KR1BH13 | IP66 | No Legend | SPDT | Spring Return | Screw Clamp | Metal | 158°F | -13°F | €121.19 | |
 |
XB5AT845 | IP66, IP67, IP69, IP69K | No Legend | 1NO/1NC | 40 mm Dia. Mushroom | Screw Clamp | Plastic | 158°F | -40°F | €104.40 | |
 |
XB5AS9445 | IP66, IP67, IP69, IP69K | No Legend | 1NO/1NC | 40 mm Dia. Mushroom | Screw Clamp | Plastic | 158°F | -40°F | €165.58 | |
 |
XB4BS8442 | IP66, IP67, IP69, IP69K | No Legend | 1NC | 40 mm Dia. Mushroom | Screw Clamp | Chrome | 158°F | -40°F | €122.37 | |
 |
XB4BS8444 | IP66, IP67, IP69, IP69K | No Legend | 2NC | 40 mm Dia. Mushroom | Screw Clamp | Chrome | 158°F | -40°F | €113.74 | |
 |
XB4BS9442 | IP66, IP67, IP69, IP69K | No Legend | 1NC | 40 mm Dia. Mushroom | Screw Clamp | Chrome | 158°F | -40°F | €189.43 |
