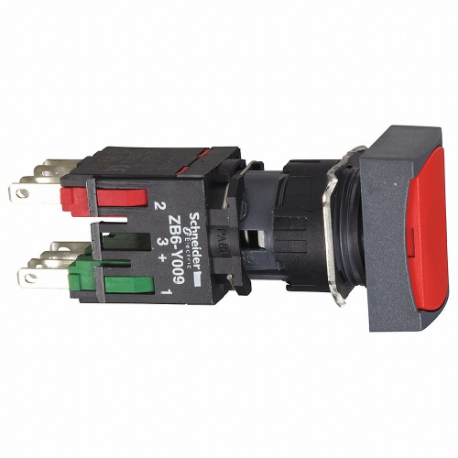

SCHNEIDER ELECTRIC XB6DA45B Push Button, 16 mm Size, Momentary, Red, 1 No/1 Nc
Item: CU2CXAModel: XB6DA45BCross Ref: 55WU33
7 In Stock
Ships within 2 days via
10.00% off
€74.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button |
| Ac Contact Rating | 1.5A @ 240V, 3A @ 120V |
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Metal |
| Bezel Material | Plastic |
| Color | Red |
| Contact Form | 1NO/1NC |
| Contact Rating | 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC |
| Dc Contact Rating | 0.1A @ 250V, 0.22A @ 125V |
| Display Qty | 1 |
| Features | Circularity Profile, Mercury Free, Toxic Heavy Metal Free |
| Head Material | Plastic |
| Head/lens Color | Red |
| Ip Rating | IP65 |
| Legend | No Legend |
| Manufacturer Warranty Length | 18 Months |
| Material | Plastic |
| Mechanical Operating Durability | 2 x 10^6 |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 13 |
| Nema Rating | NEMA 13, NEMA 4, NEMA 4X |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Operator Voltage Rating - Maximum | 250V AC/DC |
| Overall Depth | 2.24" |
| Overall Height | 0.71" |
| Overall Width | 0.94" |
| Panel Mounting Hole Diameter | 16 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Series | XB6 Series |
| Terminal Connection | Quick Connect |
| Type Of Operator | Rectangular Flush Button |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Ip Rating | Legend | Contact Form | Type Of Operator | Nema Rating | Terminal Connection | Number Of Operators | Bezel Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB4BL21 | IP66, IP67, IP69, IP69K | No Legend | - | - | - | Screw Clamp | 1 | Chrome | €66.47 | |
 |
XB4BL41 | IP66, IP67, IP69, IP69K | No Legend | - | - | - | Screw Clamp | 1 | Chrome | €61.14 | |
 |
XB4FA3351 | IP66, IP67, IP69, IP69K | No Legend | 1NO | - | - | Screw Clamp | 1 | Chrome | €76.73 | |
 |
XB4FA31 | IP66, IP67, IP69, IP69K | No Legend | - | - | - | Screw Clamp | 1 | Chrome | €66.57 | |
 |
XB4FA3341 | IP66, IP67, IP69, IP69K | No Legend | - | - | - | Screw Clamp | 1 | Chrome | €75.50 | |
 |
XB4FA11 | IP66, IP67, IP69, IP69K | No Legend | 1NO | - | - | Screw Clamp | 1 | Chrome | €52.04 | |
 |
XB6AS8345B | - | - | - | - | - | - | - | - | - | RFQ
|
