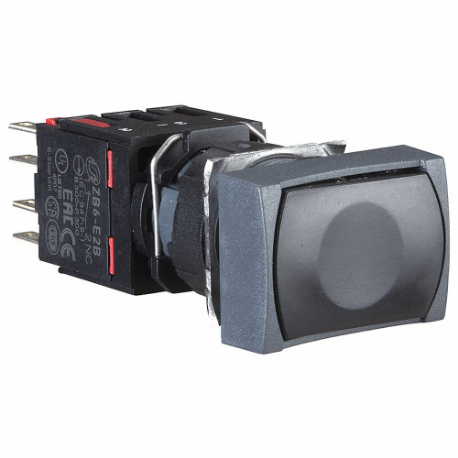

SCHNEIDER ELECTRIC XB6DA22B Push Button, 16 mm Size, Momentary, Black, 1 Nc
Item: CU2CWVModel: XB6DA22BCross Ref: 55WU28
7 In Stock
Ships within 2 days via
10.00% off
€38.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button |
| Ac Contact Rating | 1.5A @ 240V, 3A @ 120V |
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Metal |
| Bezel Material | Plastic |
| Color | Black |
| Contact Form | 1 NC |
| Dc Contact Rating | 0.1A @ 250V, 0.22A @ 125V |
| Display Qty | 1 |
| Features | Circularity Profile, Mercury Free, Toxic Heavy Metal Free |
| Head Material | Plastic |
| Head/lens Color | Black |
| Ip Rating | IP65 |
| Legend | No Legend |
| Manufacturer Warranty Length | 18 Months |
| Material | Plastic |
| Mechanical Operating Durability | 2 x 10^6 |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 13 |
| Nema Rating | NEMA 13, NEMA 4, NEMA 4X |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Operator Voltage Rating - Maximum | 250V AC/DC |
| Overall Depth | 2.24" |
| Overall Height | 0.71" |
| Overall Width | 0.94" |
| Panel Mounting Hole Diameter | 16 mm |
| Product Datasheet | schneider-electric-xb6da22b.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Series | XB6 Series |
| Terminal Connection | Quick Connect |
| Type Of Operator | Rectangular Flush Button |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Ip Rating | Legend | Contact Form | Type Of Operator | Terminal Connection | Number Of Operators | Bezel Material | Legend/background Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB5AA61 | IP66, IP67, IP69, IP69K | No Legend | 1NO | Booted Button | Screw Clamp | 1 | Plastic | - | €70.70 | |
 |
XB5AT845 | IP66, IP67, IP69, IP69K | No Legend | 1NO/1NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Plastic | - | €171.77 | |
 |
XB5AS9445 | IP66, IP67, IP69, IP69K | No Legend | 1NO/1NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Plastic | - | €272.41 | |
 |
XB4BS8442 | IP66, IP67, IP69, IP69K | No Legend | 1NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Chrome | - | €201.31 | |
 |
XB4BS8444 | IP66, IP67, IP69, IP69K | No Legend | 2NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Chrome | - | €187.11 | |
 |
XB5AS8442 | IP66, IP67, IP69, IP69K | No Legend | 1NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Plastic | - | €218.29 | |
 |
XB5AT842 | IP66, IP67, IP69, IP69K | No Legend | 1NC | 22 mm Dia. Mushroom | Screw Clamp | 1 | Plastic | - | €134.81 |
