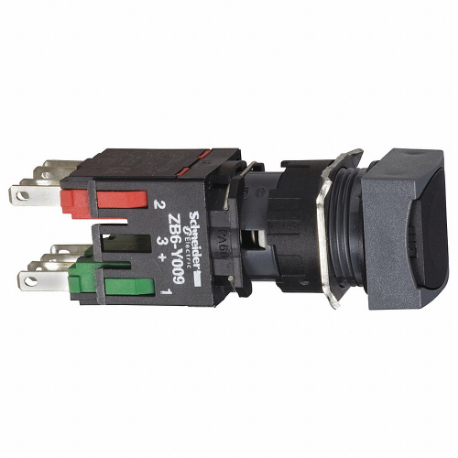

SCHNEIDER ELECTRIC XB6CA25B Push Button, 16 mm Size, Momentary, Black, 1 No/1 Nc, Plastic
Item: CU2CWWModel: XB6CA25BCross Ref: 55WU25
7 In Stock
Ships within 2 days via
13.00% off
€43.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button |
| Ac Contact Rating | 1.5A @ 240V, 3A @ 120V |
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Metal |
| Bezel Material | Plastic |
| Cad Overall Depth | 57 mm |
| Cad Overall Height | 18 mm |
| Cad Overall Width | 18 mm |
| Color | Black |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 0.1A @ 250V, 0.22A @ 125V |
| Display Qty | 1 |
| Features | Circularity Profile, Mercury Free, Toxic Heavy Metal Free |
| Head Material | Plastic |
| Head/lens Color | Black |
| Ip Rating | IP65 |
| Legend | No Legend |
| Max. Operating Temp. | 158°F |
| Max. Operator Voltage Rating | 250V AC/DC |
| Mechanical Operating Durability | 2 x 10^6 |
| Min. Operating Temp. | -13°F |
| Mounting Dia. | 16 mm |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 13 |
| Nema Rating | NEMA 13, NEMA 4, NEMA 4X |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Overall Depth | 2.24" |
| Overall Height | 0.71" |
| Overall Width | 0.71" |
| Panel Mounting Hole Dia. | 16 mm |
| Product Datasheet | schneider-electric-xb6ca25b.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Series | XB6 Series |
| Shape Of Signaling Unit Head | Square |
| Terminal Connection | Quick Connect |
| Type Of Operator | Square Flush Button |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
