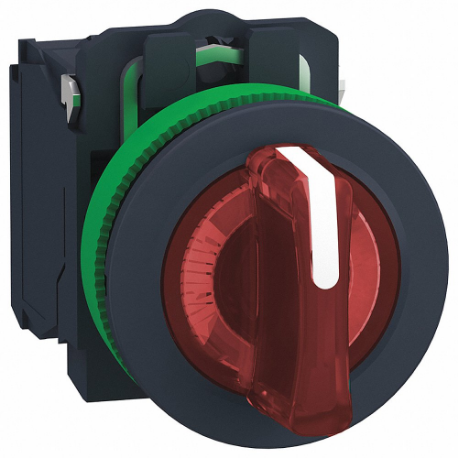

SCHNEIDER ELECTRIC XB5FK134B5 Illuminated Selector Switch, 30 mm Size, 3 Position
Item: CU2BUMModel: XB5FK134B5Cross Ref: 55WK23
7 In Stock
Ships within 2 days via
13.00% off
€141.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Illuminated Selector Switch |
| Ac Contact Rating | 1.2A @ 600V, 3A @ 240V, 6A @ 120V |
| Action | Maintained/Maintained/Maintained |
| Basic Material | Plastic |
| Bezel Material | Plastic |
| Cam | No Cam Included |
| Color | Red |
| Contact Block Material | Plastic |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Hazardous Location Specification | Not Rated |
| Ip Rating | IP66, IP67, IP69, IP69K |
| Lamp Bulb Type | LED |
| Lamp Module Type | Full Voltage |
| Lamp Voltage | 24V DC |
| Max. Lamp Voltage | 24V AC/DC |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| No. Of Positions | 3 |
| Operator Head Color | Red |
| Operator Head Material | Plastic |
| Operator Illumination | Illuminated |
| Overall Depth | 2.8" |
| Overall Height | 1.65" |
| Overall Width | 1 11/25" |
| Panel Mounting Hole Dia. | 30 mm |
| Position | 3 |
| Product Datasheet | schneider-electric-xb5fk134b5.pdf |
| Series | XB5 Series |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | Off |
| Switch Function @ 3rd Position | On |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Head Type | Short Lever |
| Switch Operation @ Position D | No Fourth Position |
| Type Of Operator | Lever |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
Documentation:
Product Variants
| Product | Model | Operator Head Material | Basic Material | Panel Mounting Hole Dia. | Lamp Voltage | Color | Operator Head Color | Contact Block Material | Max. Lamp Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB5FK125G5 | Plastic | Plastic | 30 mm | 110-120V AC | Orange | Orange | Plastic | 120V AC | €128.57 | |
 |
XB5FK124M5 | Plastic | Plastic | 30 mm | 230-240V AC | Red | Red | Plastic | 240V AC | €163.48 | |
 |
XB5FK123B5 | Plastic | Plastic | 30 mm | 24V DC | Green | Green | Plastic | 24V AC/DC | €137.71 | |
 |
XB5FK125M5 | Plastic | Plastic | 30 mm | 230-240V AC | Orange | Orange | Plastic | 240V AC | €128.57 | |
 |
XB5FK124G5 | Plastic | Plastic | 30 mm | 110-120V AC | Red | Red | Plastic | 120V AC | €148.94 | |
 |
9001K11J35LY | Polycarbonate | Metal | 30 mm | - | Yellow | Yellow | Metal | 28V | €219.97 | |
|
XB5FK125B5 | Plastic | Plastic | 30 mm | 24V DC | Orange | Orange | Plastic | 24V AC/DC | €139.83 |
