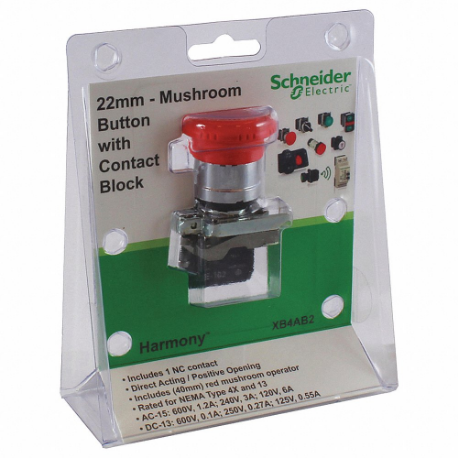

SCHNEIDER ELECTRIC XB4AB2 Emergency Switching Off Push Button, 22 mm Size, Red, 1 Nc, 13/4X, Mushroom Head
Item: CU2CVBModel: XB4AB2Cross Ref: 55WT98
7 In Stock
Ships within 2 days via
10.00% off
€148.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Maintained |
| Bezel Material | Chrome |
| Color | Red |
| Contact Form | 1 NC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Device Presentation | Complete Product |
| Display Qty | 1 |
| Features | Vibration Resistance 5 Gn 2¿500 Hz)Iec 60068-2-6 |
| Fixing Collar Material | Zamak |
| Head Material | Metal |
| Head/lens Color | Red |
| Ip Rating | IP66 |
| Legend | No Legend |
| Legend/background Color | No Legend |
| Maintained Action Release | Twist |
| Mechanical Operating Durability | 3 x 10^5 |
| Mounting Diameter | 22 mm |
| Mushroom Head Diameter | 40 mm |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Enclosure Rating | NEMA 4X, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Operator Voltage Rating - Maximum | 600V AC/DC |
| Overall Depth | 4.09" |
| Overall Height | 1.85" |
| Overall Width | 1.57" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Datasheet | schneider-electric-xb4ab2.pdf |
| Product Type | Emergency Stop Push Buttons |
| Push Button Style | Mushroom Head |
| Series | ZB4/XB4 Series |
| Shape Of Signaling Unit Head | Round |
| Terminal Connection | Screw Clamp |
| Type Of Operator | Mushroom Head |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 4.7 |
| Ship length (cm) | 10.4 |
| Ship width (cm) | 4 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Ip Rating | Legend | Contact Form | Type Of Operator | Terminal Connection | Number Of Operators | Bezel Material | Legend/background Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB5AA61 | IP66, IP67, IP69, IP69K | No Legend | 1NO | Booted Button | Screw Clamp | 1 | Plastic | - | €70.70 | |
 |
XB5AT845 | IP66, IP67, IP69, IP69K | No Legend | 1NO/1NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Plastic | - | €171.77 | |
 |
XB5AS9445 | IP66, IP67, IP69, IP69K | No Legend | 1NO/1NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Plastic | - | €272.41 | |
 |
XB4BS8442 | IP66, IP67, IP69, IP69K | No Legend | 1NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Chrome | - | €201.31 | |
 |
XB4BS8444 | IP66, IP67, IP69, IP69K | No Legend | 2NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Chrome | - | €187.11 | |
 |
XB5AS8442 | IP66, IP67, IP69, IP69K | No Legend | 1NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Plastic | - | €218.29 | |
 |
XB5AT842 | IP66, IP67, IP69, IP69K | No Legend | 1NC | 22 mm Dia. Mushroom | Screw Clamp | 1 | Plastic | - | €134.81 |
