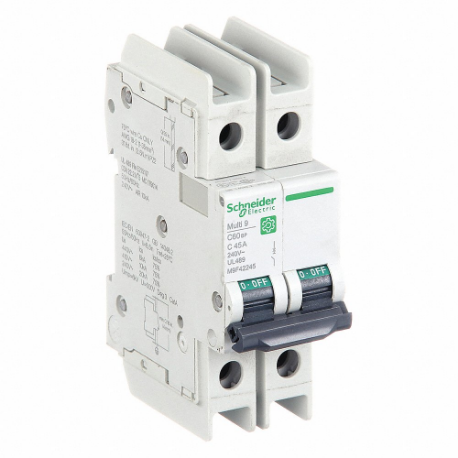

SCHNEIDER ELECTRIC M9F42245 Miniature Circuit Breaker, 45 A, 14 Ka At 120/240 Vac, Screw Clamp
Item: CU2CECModel: M9F42245Cross Ref: 482M44
7 In Stock
Ships within 2 days via
13.00% off
€366.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Circuit Breaker |
| Ac Voltage Rating | 240V AC |
| Amps | 45A |
| Application | Branch Circuit Protection |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Din Rail |
| Curve Type | C |
| Dc Voltage | Not Rated |
| Depth | 2.83" |
| Frame Size | 63A/C60BP |
| Length | 4.06" |
| Max. Operating Temp. | 158°F |
| Max. Wire Size | 2 AWG |
| Meets Ul Type | UL 489 |
| Mfr. Series | C60BP Series |
| Min. Operating Temp. | -22°F |
| Min. Wire Size | 18 AWG |
| No. Of Poles | 2 |
| Phase | 1 |
| Terminal Connection | Screw Clamp |
| Trip Type | Thermal Magnetic |
| Voltage Type | AC/DC |
| Width | 1.42" |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 7.19 |
| Ship length (cm) | 10.31 |
| Ship width (cm) | 3.61 |
| Country of Origin | FR |
Product Variants
| Model | Amps | Ac Voltage Rating | Curve Type | Max. Wire Size | Frame Size | Dc Voltage | No. Of Poles | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| M9F42201 | 1A | 240/277/480V AC | C | 8 AWG | 63A, C60BP | Not Rated | 2 | - | €159.64 | |
| M9F42202 | 2A | 240/277/480V AC | C | 8 AWG | 63A, C60BP | Not Rated | 2 | - | €295.74 | |
| M9F42203 | - | 240/277/480V AC | C | - | - | - | 2 | - | €314.43 | |
| M9F42204 | 4A | 240/277/480V AC | C | 8 AWG | 63A, C60BP | Not Rated | 2 | - | €159.64 | |
| M9F42205 | 5A | 240/277/480V AC | C | 8 AWG | 63A, C60BP | Not Rated | 2 | - | €159.64 | |
| M9F42206 | 6A | 240/277/480V AC | C | 8 AWG | 63A, C60BP | Not Rated | 2 | - | €159.64 | |
| M9F42208 | 8A | 240/277/480V AC | C | 8 AWG | 63A, C60BP | Not Rated | 2 | - | €275.60 |
