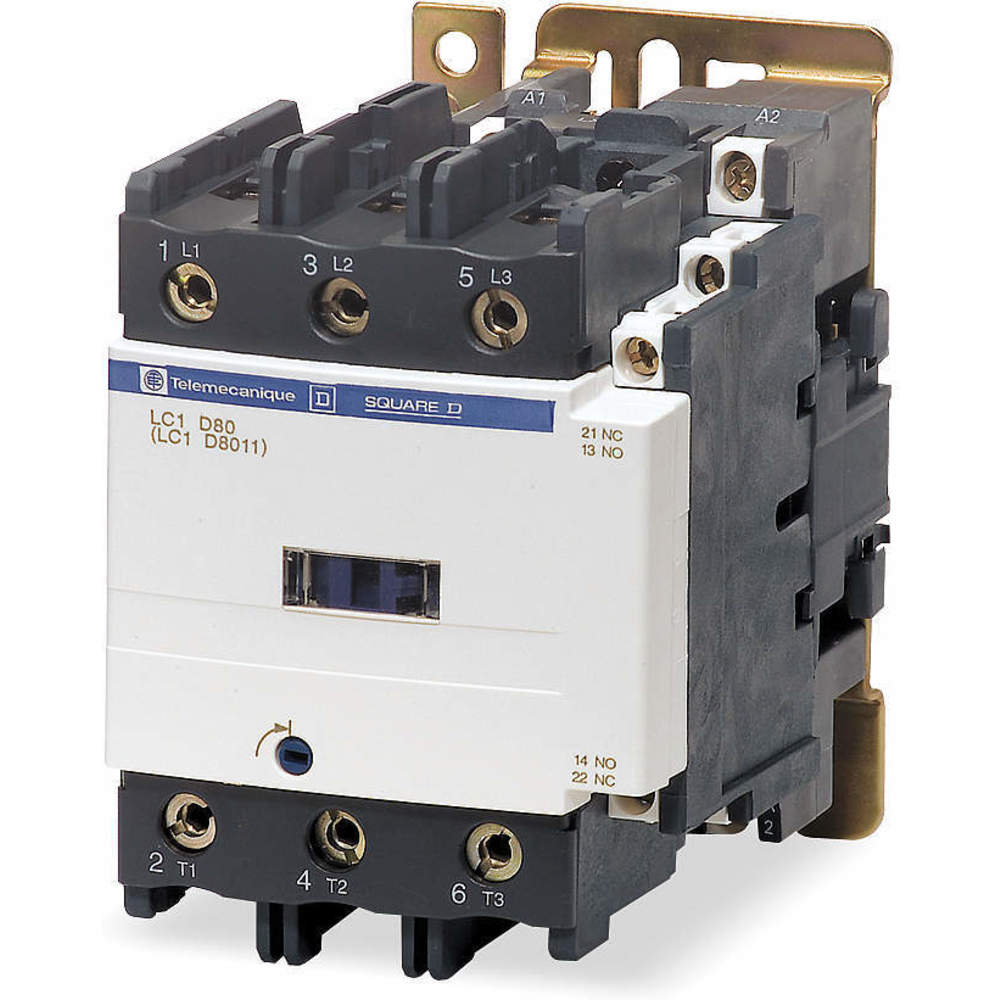

SCHNEIDER ELECTRIC LC1D80BD Contactor IEC 24VDC 3P 80A
Item: AF9HYZModel: LC1D80BDCross Ref: 2MMU3
7 In Stock
Ships within 2 days via
10.00% off
€802.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Action Type | Non Reversing |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Volts | 24V DC |
| Contactor Style | IEC |
| Contactor Type | IEC |
| Depth | 7.13" |
| Electrical Operating Durability | 1500000, 800000 |
| Enclosure Type | Open |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 80A |
| Full Load Amps-resistive | 125A |
| Full Load Current - Resistive | 125A |
| Height | 3.34" |
| Horsepower @ Single Phase - 240v Ac | 15 hp |
| Horsepower @ Three Phase - 208v Ac | 30 hp |
| Horsepower @ Three Phase - 600v Ac | 60 hp |
| Hp @ 1 Phase - 120v | 7 1/2 hp |
| Hp @ 3 Phase - 208v | 30 hp |
| Hp @ 3 Phase - 240v | 30 hp |
| Hp @ 3 Phase - 480v | 60 hp |
| Hp @ 3 Phase - 575v | 60 hp |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 140°F |
| Maximum Voltage Rating | 300V DC |
| Mechanical Operating Durability | 4000000 |
| Minimum Operating Temperature | -40°F |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 24V DC |
| Number Of Poles | 3 |
| Overall Depth | 7.32" |
| Overall Height | 5" |
| Overall Width | 3.35" |
| Phase | Three |
| Product Datasheet | schneider-electric-lc1d80bd.pdf |
| Reversing Capability | Non-reversing |
| Series | Tesys Deca |
| Width | 3.34" |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 2.43 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 18.59 |
| Ship width (cm) | 8.51 |
| HS code | 8536490065 |
| Country of Origin | CZ |
Documentation:
Product Variants
| Product | Model | Reversing Capability | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Integrated Surge Suppression | Full Load Current (inductive) | Full Load Current (resistive) | Height | Action Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LC1D40ALE7 | Non-reversing | 1NO/1NC | 208V AC | No | - | - | 2.17" | Non Reversing | €321.40 | |
 |
LC1D115LE7 | Non-reversing | 1NO/1NC | 208V AC | Yes | 115A | 200A | 6.22" | Non Reversing | €911.62 | |
 |
LC2D09B7 | Reversing | 1NO/1NC | 24V AC | No | - | - | 3 4/5" | Reversing | €247.65 | |
 |
LC1D09BD | - | - | - | - | - | - | 1.77" | Non Reversing | €116.23 | |
|
LC1D09T7 | Non-reversing | 1NO/1NC | 480V AC | No | - | - | 1.77" | Non Reversing | €107.24 | |
 |
LC1D115B7 | Non-reversing | 1NO/1NC | 24V AC | Yes | - | - | 4.33" | Non Reversing | €911.62 | |
|
LC1D115BD | Non-reversing | 1NO/1NC | 24V DC | Yes | - | - | 4.33" | Non Reversing | €806.37 |
